AME

Items
Status
Open
Name
AME
Brand
Cosel
Input Type
AC-DC
Case Style
Enclosed
Cooling Method
Forced Air
Mounting Method
Chassis Mount
Output Type
Configurable
Output Voltages
4V - 57.6V Configurable
Input Voltages
Technical Features
  • Remote On/Off
  • Constant Current
  • Alarm
  • Parallel Function
  • Leakage Current <0.5mA
  • Voltage adjustable to 0V
  • < 1U High
  • Communication Function
  • PMBus
Related Products

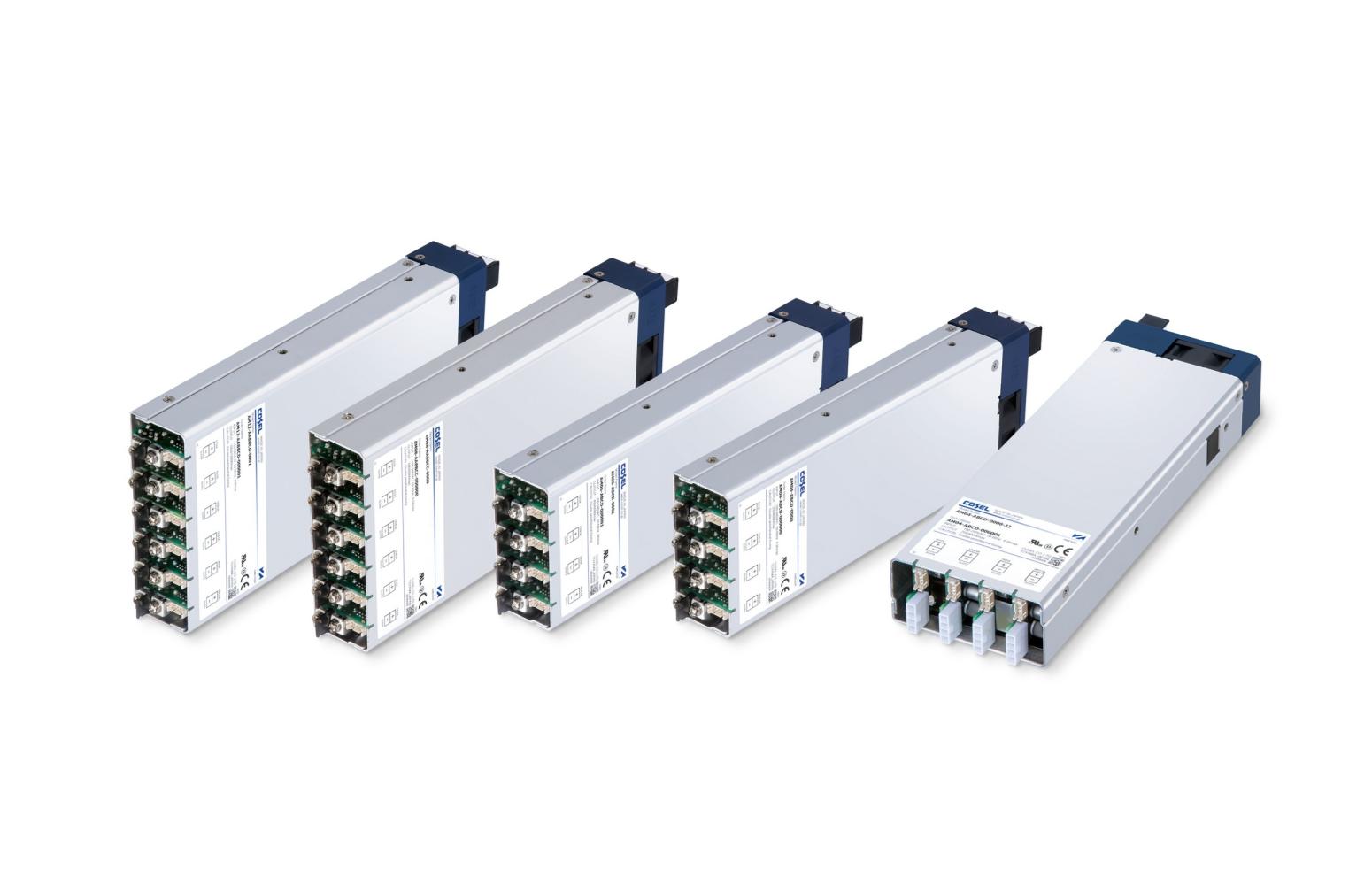

Main Image
AmeseriesLarge
Industry
  • Medical
  • Energy
  • Industrial
  • Communication
  • Infrastructure
Features
  • Configurable AC-DC Power Supply
  • Multiple Output Configurations
  • Industrial & Medical Approval (2 x MOPP)
  • Digital Communication Function (240W modules only)
  • 5 Year Warranty
  • EN & UL Approved

Additional Technical Documents

Part Number Configurator
AME Series Part Number Configurator
Keywords
AC Input Voltage Min
85.00
AC Input Voltage Max
264.00
DC Input Voltage Min
DC Input Voltage Max
Output Voltage Min
4.00
Output Voltage Max
57.60
Output Current Min
2.50
Output Current Max
12.00
Output Power Min
400.00
Output Power Max
1,200.00
Series Webservice

Data

{
    "name": "AME",
    "pic_path": "\/tool\/tag\/pic\/ame.jpg",
    "product_system_str": "Configurable type",
    "environment_mark_str": "RoHS, eco",
    "explanation": "Rated Input: 85 - 264VAC 1&Phi;<br \/>Rated Output Wattage: 400, 600, 800, 1200W",
    "patent": "<p>&bull; Flexible modular system architecture provides various output configuration<br>&bull; Low profile(41mm, 1.61inch=meet to 1U height)<br>&bull; Universal input (85-264VAC)<br>&bull; For medical electronical equipment<br>\u3000(ANSI\/AAMI ES60601-1, EN60601-1 3rd, IEC60601-1-2 4th Ed.)<br>&bull; Medical Isolation Grade 2MOPP<br>&bull; With AUX output 5V 1A<br>&bull; Global Inhibit, Remote ON\/OFF control, alarm <br>&bull; Output connector is available (Option: -J2\uff09<br>&bull; Monitoring function and some parameter changes by communication are available(Option: -I3, -I).<\/p>",
    "free_guarantee_term_unit": "-year (Refer to Instruction Manuals)",
    "free_guarantee_term_specification": "5"
}

Mapping

{
    "power_series": {
        "name": {
            "type": "sortable",
            "field": "title"
        },
        "pic_path": {
            "type": "plaintext",
            "field": "cs_pic_path"
        },
        "explanation": {
            "type": "plaintext",
            "field": "description"
        },
        "patent": {
            "type": "plaintext",
            "field": "cs_patent"
        },
        "product_system_str": {
            "type": "plaintext",
            "field": "cs_product_system"
        },
        "environment_mark_str": {
            "type": "plaintext",
            "field": "cs_environment_mark"
        },
        "free_guarantee_term_unit": {
            "type": "plaintext",
            "field": "cs_free_guarantee_term_unit"
        },
        "free_guarantee_term_specification": {
            "type": "plaintext",
            "field": "cs_free_guarantee_term_specification"
        },
        "note": {
            "type": "plaintext",
            "field": "cs_note"
        }
    }
}
Models Webservice

Data

[
    {
        "name": "AME400F",
        "pic_path": "\/tool\/tag\/pic\/ame400f.jpg",
        "cool_str": "Forced Air Cooling",
        "explanation": "Rated Input: 85 - 264VAC 1&Phi;<br \/>Rated Output Wattage: 400W<br \/>Slots: 4<br \/>Rated Output Voltage: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V\/24V",
        "catalog_pdf": "\/tool\/tag\/pdf\/SFE_AME.pdf",
        "struct_cool": "<p>Forced cooling (internal fan\uff09<\/p>"
    },
    {
        "name": "AME600F",
        "pic_path": "\/tool\/tag\/pic\/ame600f.jpg",
        "cool_str": "Forced Air Cooling",
        "explanation": "Rated Input: 85 - 264VAC 1&Phi;<br \/>Rated Output Wattage: 600W<br \/>Slots: 4<br \/>Rated Output Voltage: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V\/24V",
        "catalog_pdf": "\/tool\/tag\/pdf\/SFE_AME.pdf",
        "struct_cool": "<p>Forced cooling (internal fan\uff09<\/p>"
    },
    {
        "name": "AME800F",
        "pic_path": "\/tool\/tag\/pic\/ame800f.jpg",
        "cool_str": "Forced Air Cooling",
        "explanation": "Rated Input: 85 - 264VAC 1&Phi;<br \/>Rated Output Wattage: 800W<br \/>Slots: 6<br \/>Rated Output Voltage:3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V\/24V",
        "catalog_pdf": "\/tool\/tag\/pdf\/SFE_AME.pdf",
        "struct_cool": "Forced cooling (internal fan\uff09"
    },
    {
        "name": "AME1200F",
        "pic_path": "\/tool\/tag\/pic\/ame1200f.jpg",
        "cool_str": "Forced Air Cooling",
        "explanation": "Rated Input: 85 - 264VAC 1&Phi;<br \/>Rated Output Wattage: 1200W<br \/>Slots: 6<br \/>Rated Output Voltage:3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V, 65V, 75V, 100V, 24V\/24V",
        "catalog_pdf": "\/tool\/tag\/pdf\/SFE_AME.pdf",
        "struct_cool": "<p>Forced cooling (internal fan\uff09<\/p>"
    }
]

Mapping

{
    "power_models": [
        {
            "name": {
                "type": "sortable",
                "field": "title"
            },
            "pic_path": {
                "type": "plaintext",
                "field": "csm_pic_path"
            },
            "explanation": {
                "type": "wikitext",
                "field": "description"
            },
            "cool_str": {
                "type": "wikitext",
                "field": "csm_cool_str"
            },
            "struct_cool": {
                "type": "wikitext",
                "field": "csm_struct_cool"
            },
            "catalog_pdf": {
                "type": "plaintext",
                "field": "csm_ catalog_pdf"
            }
        }
    ]
}
Market Status
New Product
