DCS

Items

Status

Open

Name

DCS

Brand

Cosel

Input Type

DC-DC

Case Style

Enclosed

Cooling Method

Conduction

Mounting Method

PCB Mount
Through-Hole

Output Type

Single

Output Voltages

12V, 24V, 28V, 36V, 48V, 65V

Input Voltages

DC200 - 435V

Technical Features

Constant Current
Voltage adjustable to 0V

Related Products

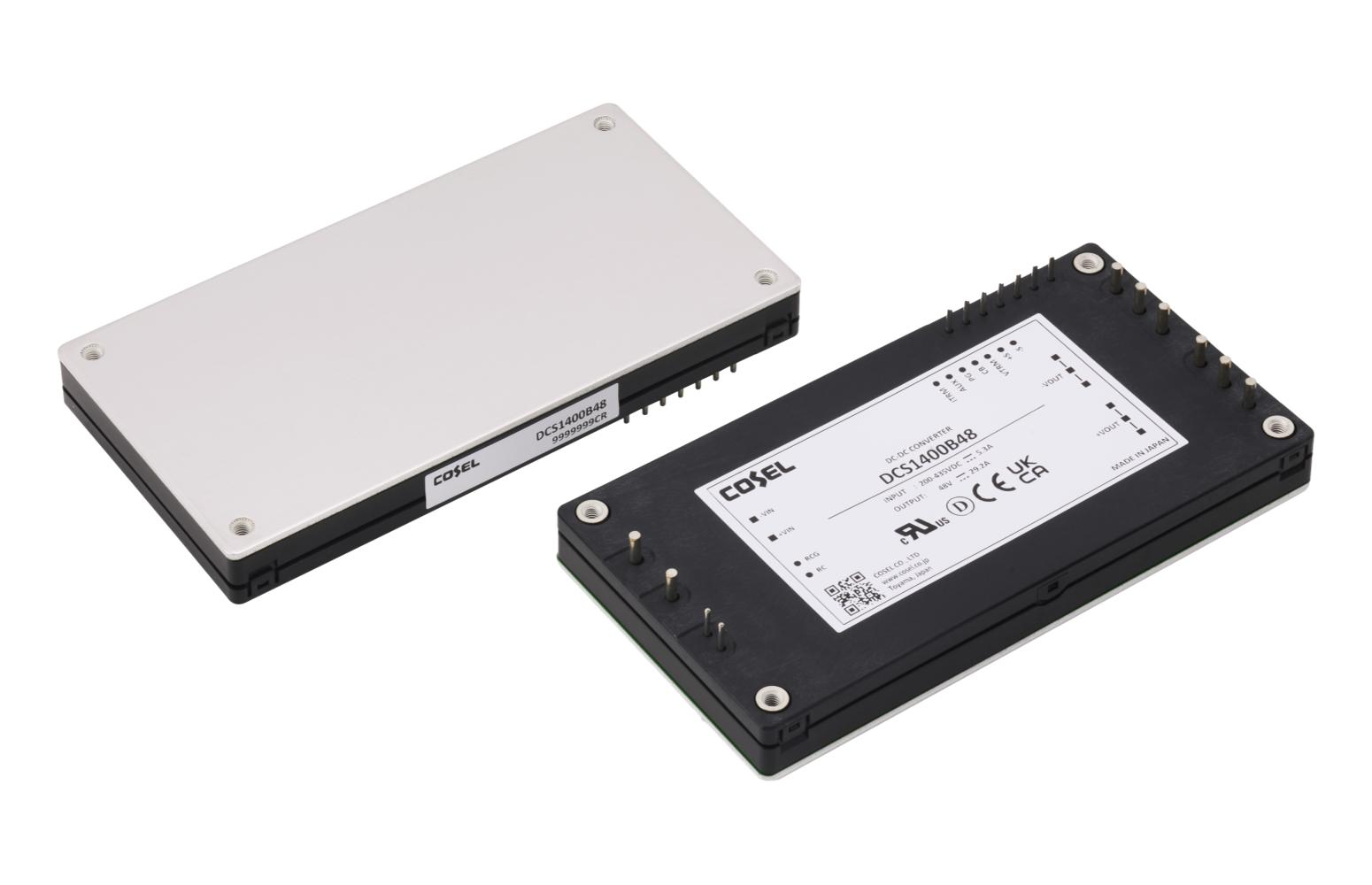

Main Image

Industry

Energy
Industrial
Communication
Mil Def Compliant
Marine Approved

Features

●200～435VDC Wide input
(SURGE VOLTAGE 500V 100msec)
●High Efficiency：over 95%
(at highest efficiency model)
Wide operating temperature range：-40℃～100℃
●Low-profile, conduction cooling structure
●Output voltage adjustment range:
0～120%　　
※0V output adjustment is available
●CVCC control mode is available
●Parallel operation: Up to 12 pieces
●Built-in ORing MOSFE (Option: -P2)
●Multifunction
　・Remote sensing
　・PG(Output Power Good) alarm
　・Remote ON/OFF

Additional Technical Documents

Part Number Configurator

Keywords

AC Input Voltage Min
AC Input Voltage Max
DC Input Voltage Min: 200.00
DC Input Voltage Max: 435.00
Output Voltage Min: 12.00
Output Voltage Max: 65.00
Output Current Min: 21.60
Output Current Max: 100.00
Output Power Min: 1,200.00
Output Power Max: 1,404.00

Series Webservice

Data

{
    "name": "DCS",
    "pic_path": "\/tool\/tag\/pic\/dcs.jpg",
    "product_system_str": "Bus Converter\u30fbPower Module type",
    "environment_mark_str": "RoHS",
    "explanation": "Rated Input: 200 - 435VDC<br \/>Rated Output Wattage: 1400W",
    "patent": "&bull; Ideal for distributed power systems<br \/>&bull; Wide output voltage range allows for flexible voltage settings<br \/>&bull; Output voltage can be varied to near 0V<br \/>&bull; Built-in overcurrent, overvoltage and thermal protection circuits<br \/>&bull; Built-in remote ON\/OFF<br \/>&bull; Built-in Power good<br \/>&bull; Constant current regulation<br \/>&bull; Parallel operation possible<br \/>&bull; N+1 Parallel Redundancy Operation possible<br \/>&bull; Built-in ORing MOSFET (Option : -P2)&nbsp; \u203bexcept DCS1400B65",
    "note": "* When remote ON\/OFF is not used, short RC and RCG.<br \/>* When the output voltage adjustment is not used, open the VTRM pin.<br \/>* When the output current adjustment is not used, open the ITRM pin.<br \/>* When remote sensing is not used, make sure +VOUT and +S are shorted, and that -VOUT and -S are shorted as well.",
    "free_guarantee_term_unit": "-year",
    "free_guarantee_term_specification": "5"
}

Mapping

{
    "power_series": {
        "name": {
            "type": "sortable",
            "field": "title"
        },
        "pic_path": {
            "type": "plaintext",
            "field": "cs_pic_path"
        },
        "explanation": {
            "type": "plaintext",
            "field": "description"
        },
        "patent": {
            "type": "plaintext",
            "field": "cs_patent"
        },
        "product_system_str": {
            "type": "plaintext",
            "field": "cs_product_system"
        },
        "environment_mark_str": {
            "type": "plaintext",
            "field": "cs_environment_mark"
        },
        "free_guarantee_term_unit": {
            "type": "plaintext",
            "field": "cs_free_guarantee_term_unit"
        },
        "free_guarantee_term_specification": {
            "type": "plaintext",
            "field": "cs_free_guarantee_term_specification"
        },
        "note": {
            "type": "plaintext",
            "field": "cs_note"
        }
    }
}

Models Webservice

Data

[
    {
        "name": "DCS1400B",
        "pic_path": "\/tool\/tag\/pic\/dcs1400b.jpg",
        "cool_str": "Conduction Cooling",
        "explanation": "Rated Input: 200 - 435VDC<br \/>Rated Output Wattage: 1400W<br \/>Rated Output Voltage: 12V, 24V, 28V, 36V, 48V, 65V",
        "catalog_pdf": "\/tool\/tag\/pdf\/SFE_DCS.pdf",
        "struct_cool": "Conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink)"
    }
]
