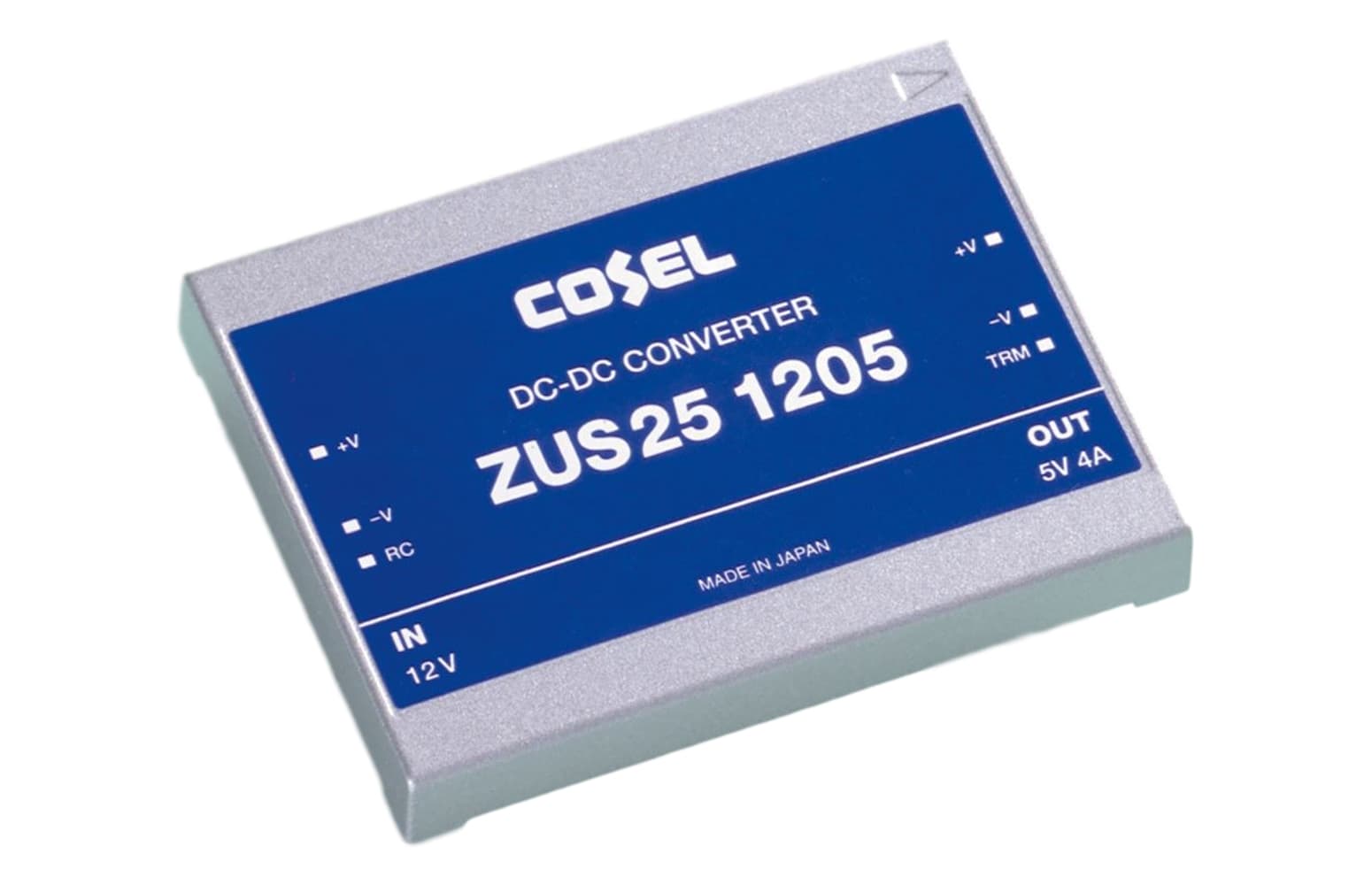

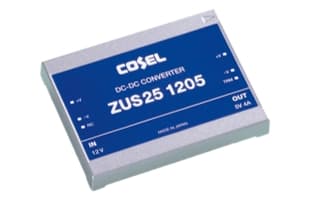

ZUS25

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGS series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

ZU(1)  S(2)  25(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  S(2)  25(3)  12(4)  05(5)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZUS25053R3 ZUS250505 ZUS250512 ZUS251205 ZUS251212 ZUS252405 ZUS252412 ZUS25483R3 ZUS254805 ZUS254812
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 75V
Output Voltage / Current 3.3V 4.0A 5V 3.2A 12V 1.7A 5V 4.0A 12V 2.1A 5V 4.0A 12V 2.1A 3.3V 4.0A 5V 4.0A 12V 2.1A
Output Power 13.2W 16.0W 20.4W 20.0W 25.2W 20.0W 25.2W 13.2W 20.0W 25.2W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 65x8.5x50mm 65x8.5x50mm 65x8.5x50mm 65x8.5x50mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUS25053R3 ZUS250505 ZUS250512 ZUS251205 ZUS251212 ZUS252405 ZUS252412 ZUS25483R3 ZUS254805 ZUS254812
Performance Data On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request
Reliability Data
