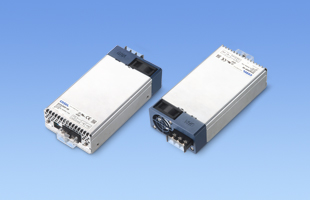

GHA300F-SNF

GHA300F-SNF
No Series data found

Options

(For detailed information, please refer to the instruction manual)

 J1: CN501
    PH (J.S.T.) connector type

Refer to the instruction manual 5.1.
string(501) "
GH(1)  A(2)  300(3)  F(4)  -  □□(5)  -  SNF□(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 J1: CN501
    PH (J.S.T.) connector type

Refer to the instruction manual 5.1."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms
No Series data found

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

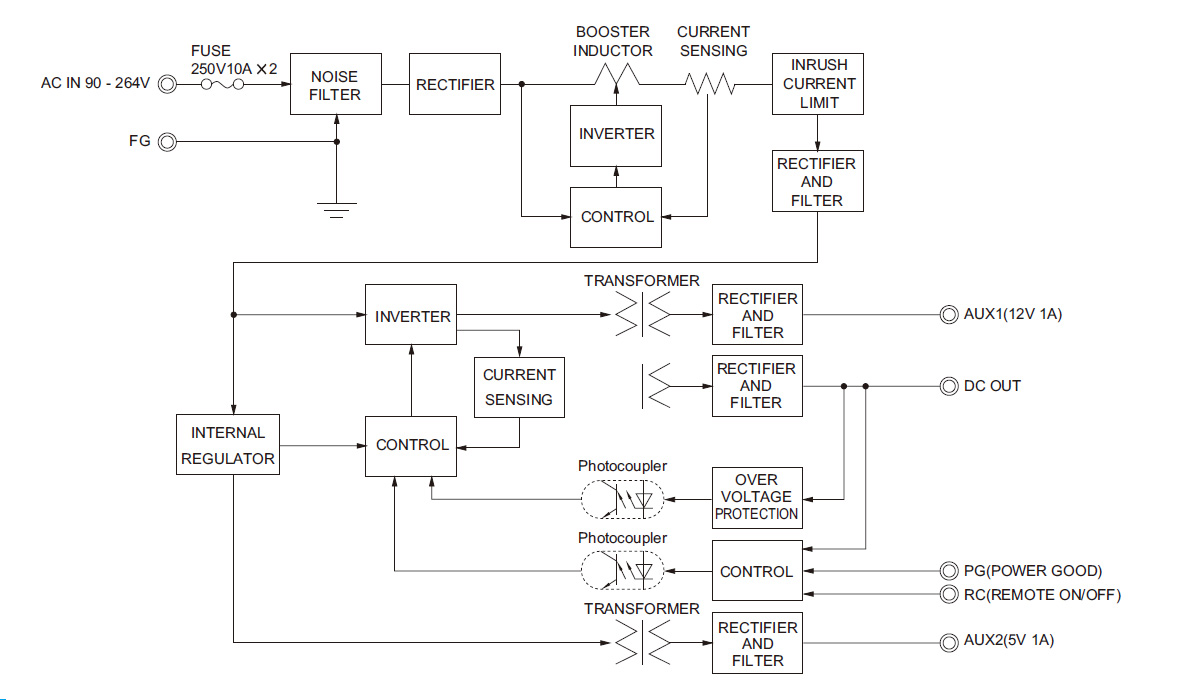

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

GH(1)  A(2)  300(3)  F(4)  -  □□(5)  -  SNF□(6)


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
 J1: CN501
    PH (J.S.T.) connector type

Refer to the instruction manual 5.1.
No Series data found
Basic Specification GHA300F-12-SNF GHA300F-24-SNF GHA300F-48-SNF
  Check Stock Check Stock Check Stock
Input Voltage Range AC90 - 264V 1Φ
Output Voltage / Current 12V 25.0A Forced Air Cooling +50℃ 24V 12.5A Forced Air Cooling +50℃ 48V 6.3A Forced Air Cooling +50℃
Output Power 300W 302.4W
Output Voltage Adj Range 10.80 - 13.20V 21.60 - 26.40V 43.20 - 52.80V
Operating Temp (°C) -20 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Forced air
Dimensions (W x H x D) 85.2x41x165.3mm
Safety Agency Approvals UL60950-1, ANSI/AAMI ES60601-1, C-UL (CSA60950-1, CAN/CSA60601-1) , EN60601-1 3rd, EN62368-1
Technical Data GHA300F-12-SNF GHA300F-24-SNF GHA300F-48-SNF
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data


⌅
