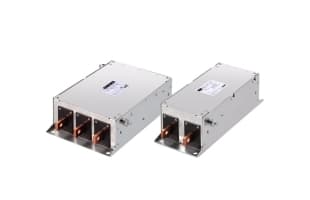

TSC Series

Features

  • Three-phase 500VAC 400A Low-profile
    Ultra high-attenuation type of common mode noise from 150kHz to 1MHz
    Multi-stage filter
  • Input and output terminals : Busbar type
    Maximum input voltage 528VAC: 10% fluctuations in voltage 480VAC
    Selectable leakage current value
  • Alternative Energy, Factory Automation

Documents

  • Datasheet
  • Instruction Manual
  • Technical Notes

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
  • 3D CAD Data (IGS)
  • Circuit diagram
  • Derating Curve

Part Number Configuration

TSC(1)  -  400(2)  -  665(3)　-　□(4)　


(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
  Refer to Product Line-up.
  * When the line to ground capacitor code is different, the attenuation characteristic is
different.
  * Please contact us about low leakage current type (Change to low grounding
    capacitor).
(4) Option
H:Ultra high-attenuation type

⌅
