Features
- For switch mode power supplies (DC)
Input voltage : 50VDC 10A - Ripple noise attenuation type for switch mode power supplies (DC)
Best filter for switch mode power supplies of analog circuit - DIN rail installation type and Terminal block type are option.
- Factory Automation
Part Number Configuration
SNR(1) - 10(2) - 223(3) - □(4)
(1) Model Name(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.

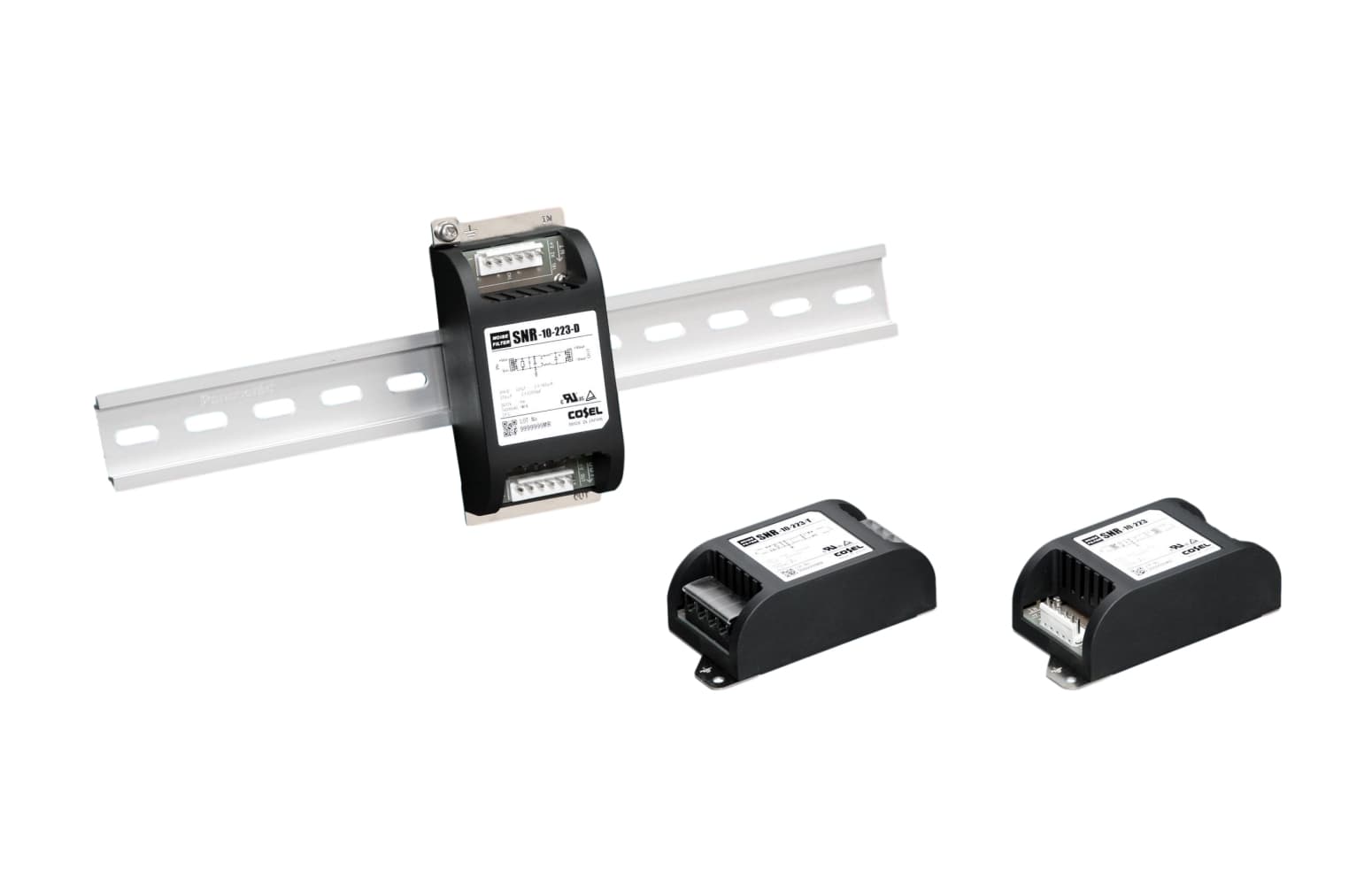

(4) Options
D:DIN rail installation type
T:Terminal block type
DT:Terminal block and DIN rail type
*The dimensions change when the option is set. Refer to External view.
