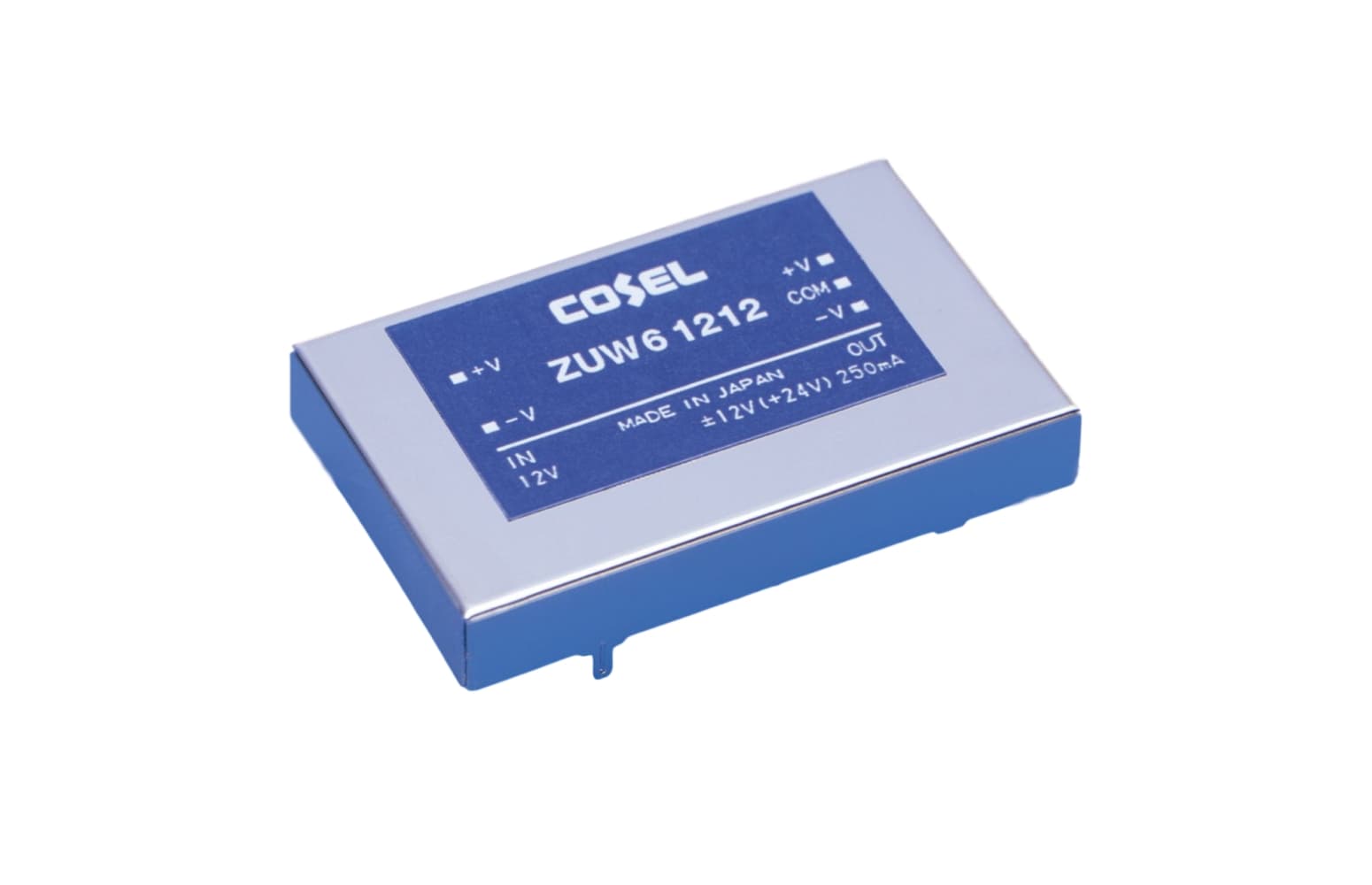

ZUW6

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGW series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(386) "

ZU(1)  W(2)  6(3)  12(4)  12(5)  (6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  W(2)  6(3)  12(4)  12(5)  (6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification ZUW60512 ZUW60515 ZUW61212 ZUW61215 ZUW62412 ZUW62415 ZUW64812 ZUW64815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current ±12V (+24V) 0.25A ±15V (+30V) 0.20A ±12V (+24V) 0.25A ±15V (+30V) 0.20A ±12V (+24V) 0.25A ±15V (+30V) 0.20A ±12V (+24V) 0.25A ±15V (+30V) 0.20A
Output Power 6.00W 6.00W 6.00W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 44.5x7x28mm 44.5x7x28mm 44.5x7x28mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUW60512 ZUW60515 ZUW61212 ZUW61215 ZUW62412 ZUW62415 ZUW64812 ZUW64815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
