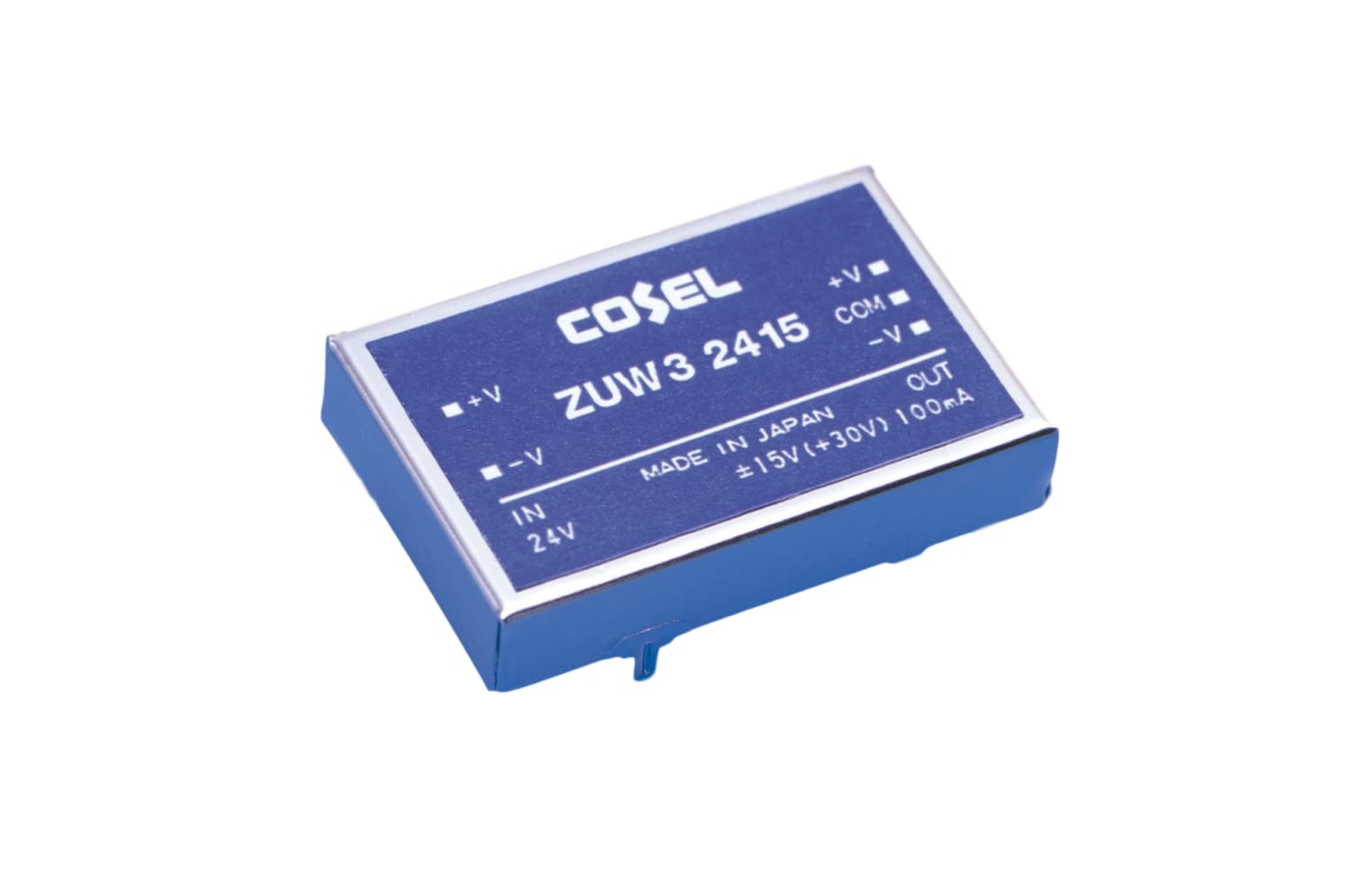

ZUW3

ZUW3

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGW series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(386) "
ZU(1)  W(2)  3(3)  12(4)  12(5)  □(6)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  W(2)  3(3)  12(4)  12(5)  □(6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification ZUW30512 ZUW30515 ZUW31212 ZUW31215 ZUW32412 ZUW32415 ZUW34812 ZUW34815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current ±12V (+24V) 0.13A ±15V (+30V) 0.10A ±12V (+24V) 0.13A ±15V (+30V) 0.10A ±12V (+24V) 0.13A ±15V (+30V) 0.10A ±12V (+24V) 0.13A ±15V (+30V) 0.10A
Output Power 3.12W 3.00W 3.12W 3.00W 3.12W 3.00W 3.12W 3.00W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 35x7x23mm 35x7x23mm 35x7x23mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUW30512 ZUW30515 ZUW31212 ZUW31215 ZUW32412 ZUW32415 ZUW34812 ZUW34815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data


⌅
