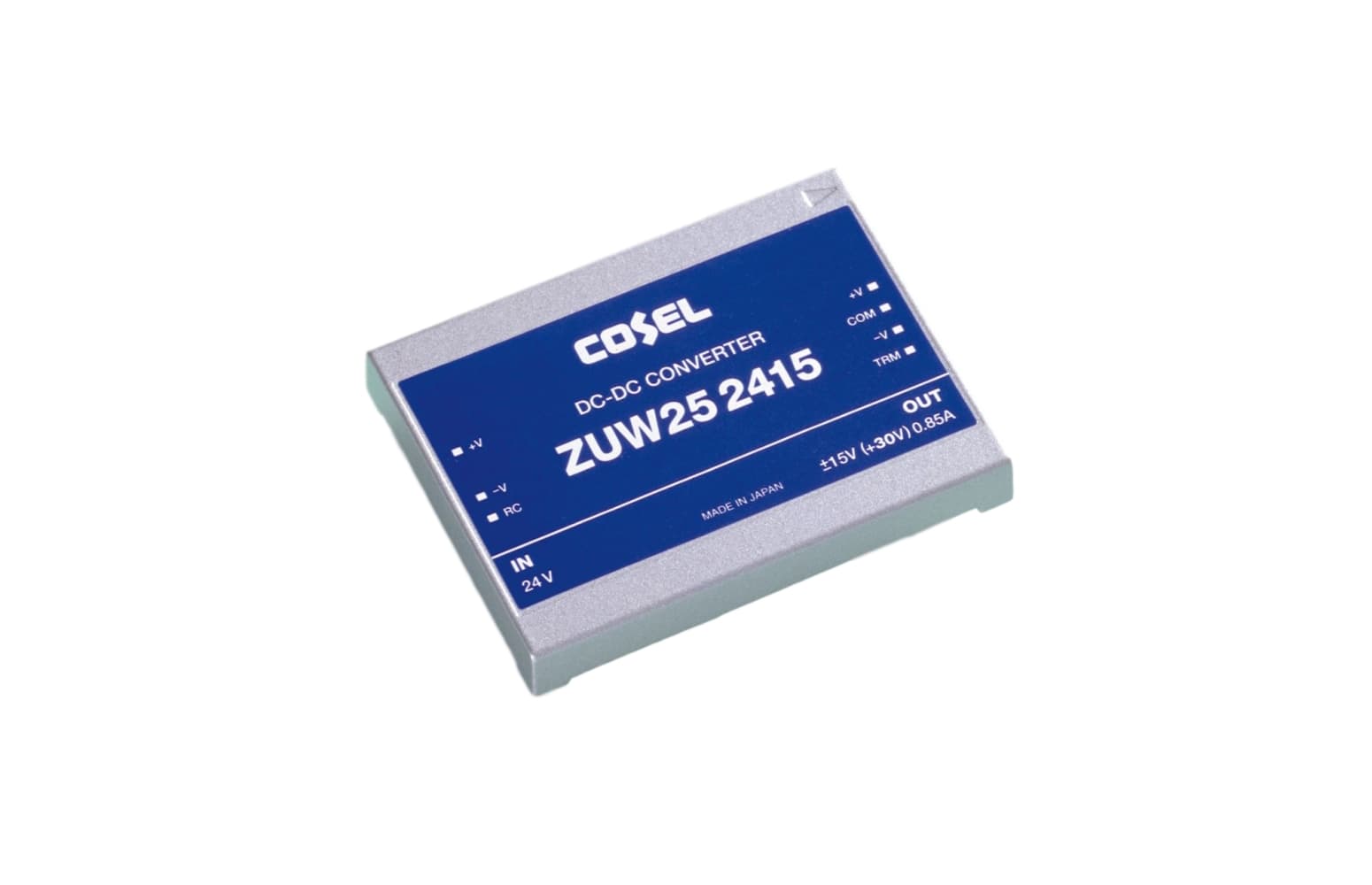

ZUW25

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGW series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

ZU(1)  W(2)  25(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
string(264) "

ZU(1)  W(2)  25(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  W(2)  25(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZUW250512 ZUW250515 ZUW251212 ZUW251215 ZUW252412 ZUW252415 ZUW254812 ZUW254815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 75V
Output Voltage / Current ±12V (+24V) 0.84A ±15V (+30V) 0.67A ±12V (+24V) 1.05A ±15V (+30V) 0.85A ±12V (+24V) 1.05A ±15V (+30V) 0.85A ±12V (+24V) 1.05A ±15V (+30V) 0.85A
Output Power 20.2W 20.1W 25.2W 25.5W 25.2W 25.5W 25.2W 25.5W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 65x8.5x50mm 65x8.5x50mm 65x8.5x50mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUW250512 ZUW250515 ZUW251212 ZUW251215 ZUW252412 ZUW252415 ZUW254812 ZUW254815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
