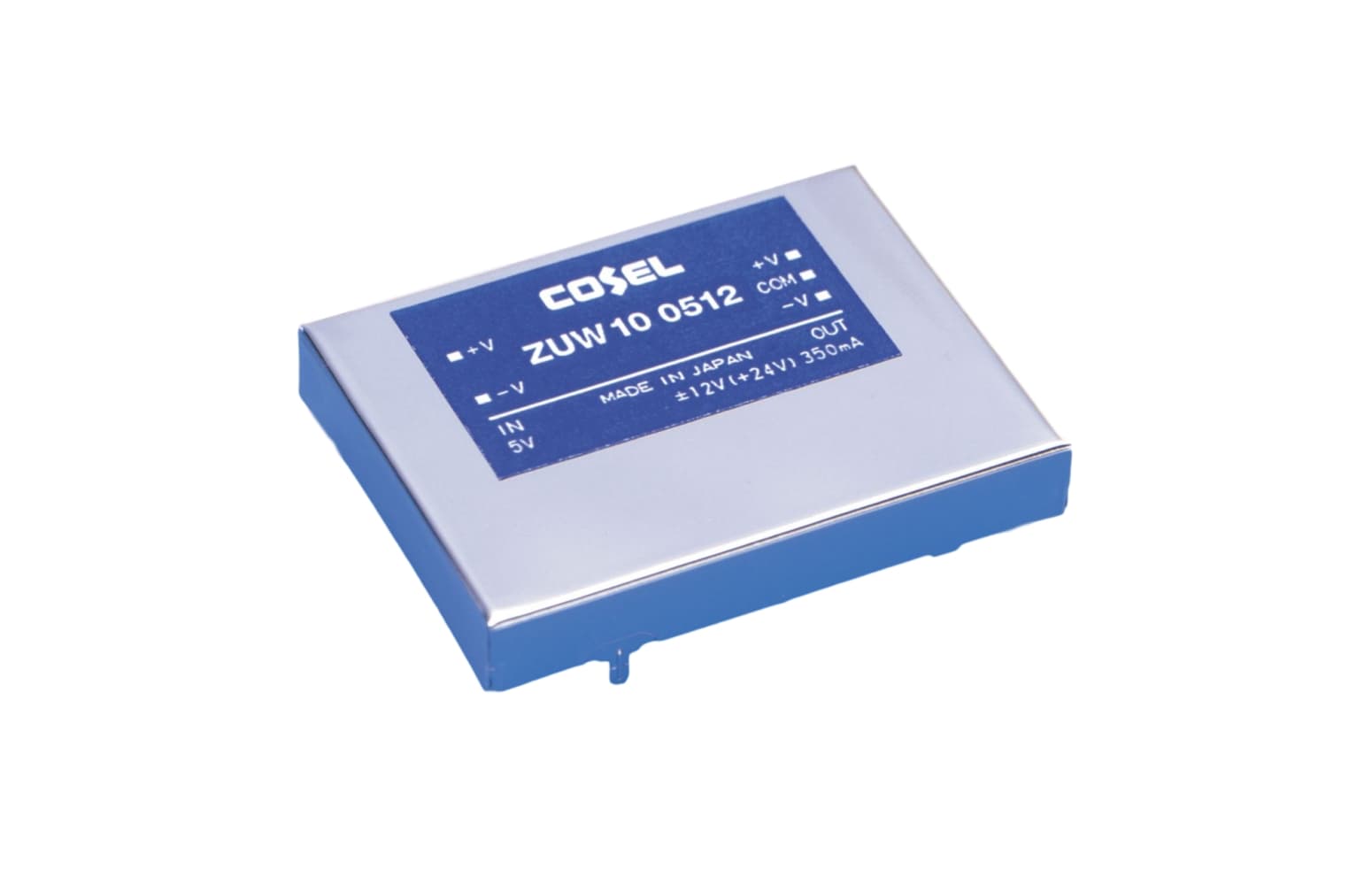

ZUW10

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGW series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

ZU(1)  W(2)  10(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
string(264) "

ZU(1)  W(2)  10(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  W(2)  10(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZUW100512 ZUW100515 ZUW101212 ZUW101215 ZUW102412 ZUW102415 ZUW104812 ZUW104815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current ±12V (+24V) 0.35A ±15V (+30V) 0.30A ±12V (+24V) 0.45A ±15V (+30V) 0.35A ±12V (+24V) 0.45A ±15V (+30V) 0.35A ±12V (+24V) 0.45A ±15V (+30V) 0.35A
Output Power 8.4W 9.0W 10.8W 10.5W 10.8W 10.5W 10.8W 10.5W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 45x7x35mm 45x7x35mm 45x7x35mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUW100512 ZUW100515 ZUW101212 ZUW101215 ZUW102412 ZUW102415 ZUW104812 ZUW104815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
