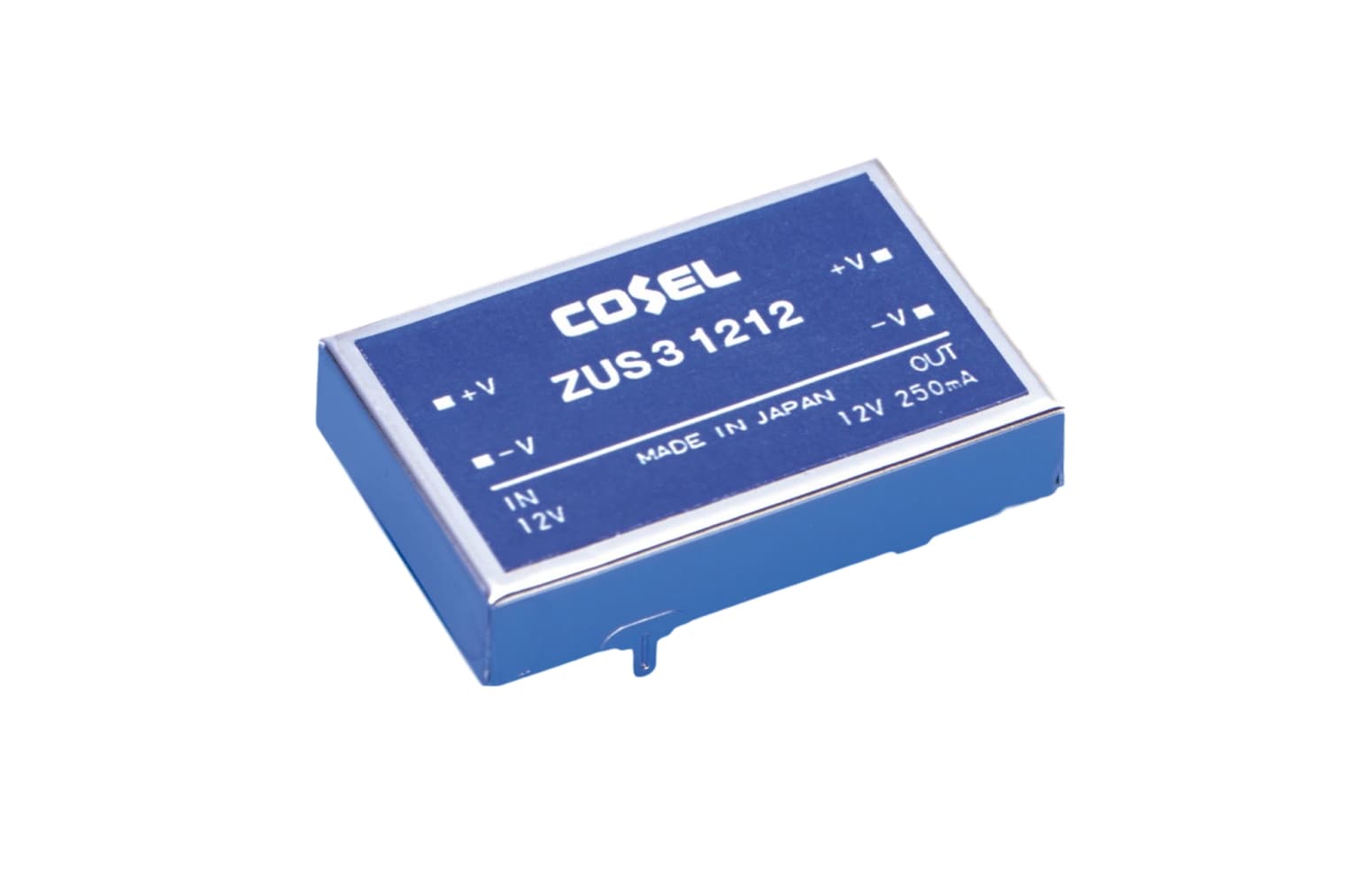

ZUS3

ZUS3

Discontinued

This series will be discontinued in Nov 2023 completely. Please refer to the MGS series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(388) "
ZU(1)  S(2)  3(3)  12(4)  05(5)  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZU(1)  S(2)  3(3)  12(4)  05(5)  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification ZUS30505 ZUS30512 ZUS30515 ZUS31205 ZUS31212 ZUS31215 ZUS32405 ZUS32412 ZUS32415 ZUS34805 ZUS34812 ZUS34815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current 5V 0.60A 12V 0.25A 15V 0.20A 5V 0.60A 12V 0.25A 15V 0.20A 5V 0.60A 12V 0.25A 15V 0.20A 5V 0.60A 12V 0.25A 15V 0.20A
Output Power 3W 3W 3W 3W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 35x7x23mm 35x7x23mm 35x7x23mm 35x7x23mm
Safety Agency Approvals UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1 UL60950-1, IEC60950-1, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data ZUS30505 ZUS30512 ZUS30515 ZUS31205 ZUS31212 ZUS31215 ZUS32405 ZUS32412 ZUS32415 ZUS34805 ZUS34812 ZUS34815
Performance Data
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data


⌅
