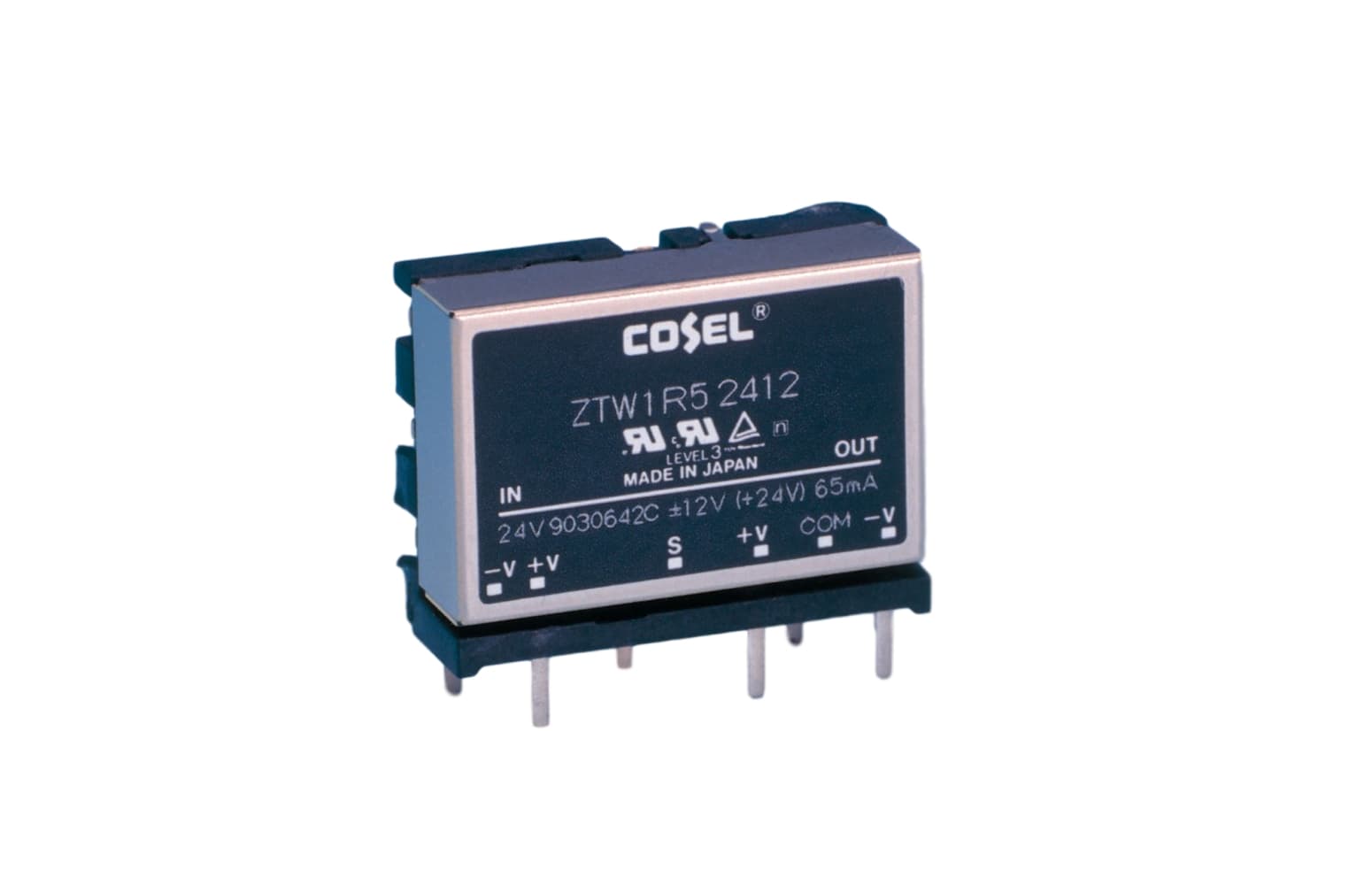

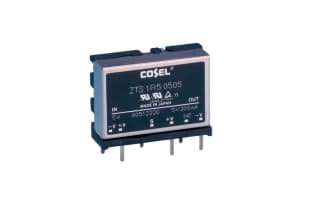

ZTW1R5

ZTW1R5

Discontinued

5V input model for ZTW3 was discnotinued. All otheer models will be discontinued on Nov 2023.
This series is very old and not recommended for new designs. Please refer to the SUTW series as a suitable alternative.

Options

(For detailed information, please refer to the instruction manual)

ZT(1)  W(2)  1R5(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
string(265) "
ZT(1)  W(2)  1R5(3)  12(4)  12(5)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

ZT(1)  W(2)  1R5(3)  12(4)  12(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
Basic Specification ZTW1R50512 ZTW1R50515 ZTW1R51212 ZTW1R51215 ZTW1R52412 ZTW1R52415 ZTW1R54812 ZTW1R54815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 72V
Output Voltage / Current ±12V (+24V) 0.065A ±15V (+30V) 0.050A ±12V (+24V) 0.065A ±15V (+30V) 0.050A ±12V (+24V) 0.065A ±15V (+30V) 0.050A ±12V (+24V) 0.065A ±15V (+30V) 0.050A
Output Power 1.56W 1.50W 1.56W 1.50W 1.56W 1.50W 1.56W 1.50W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) * -20 to +71℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 28x21x10mm 28x21x10mm 28x21x10mm
Safety Agency Approvals UL60950-1, C-UL, IEC60950-1, Complies with IEC60950-1 UL60950-1, C-UL, IEC60950-1, Complies with IEC60950-1 UL60950-1, C-UL, IEC60950-1, Complies with IEC60950-1
Technical Data ZTW1R50512 ZTW1R50515 ZTW1R51212 ZTW1R51215 ZTW1R52412 ZTW1R52415 ZTW1R54812 ZTW1R54815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
