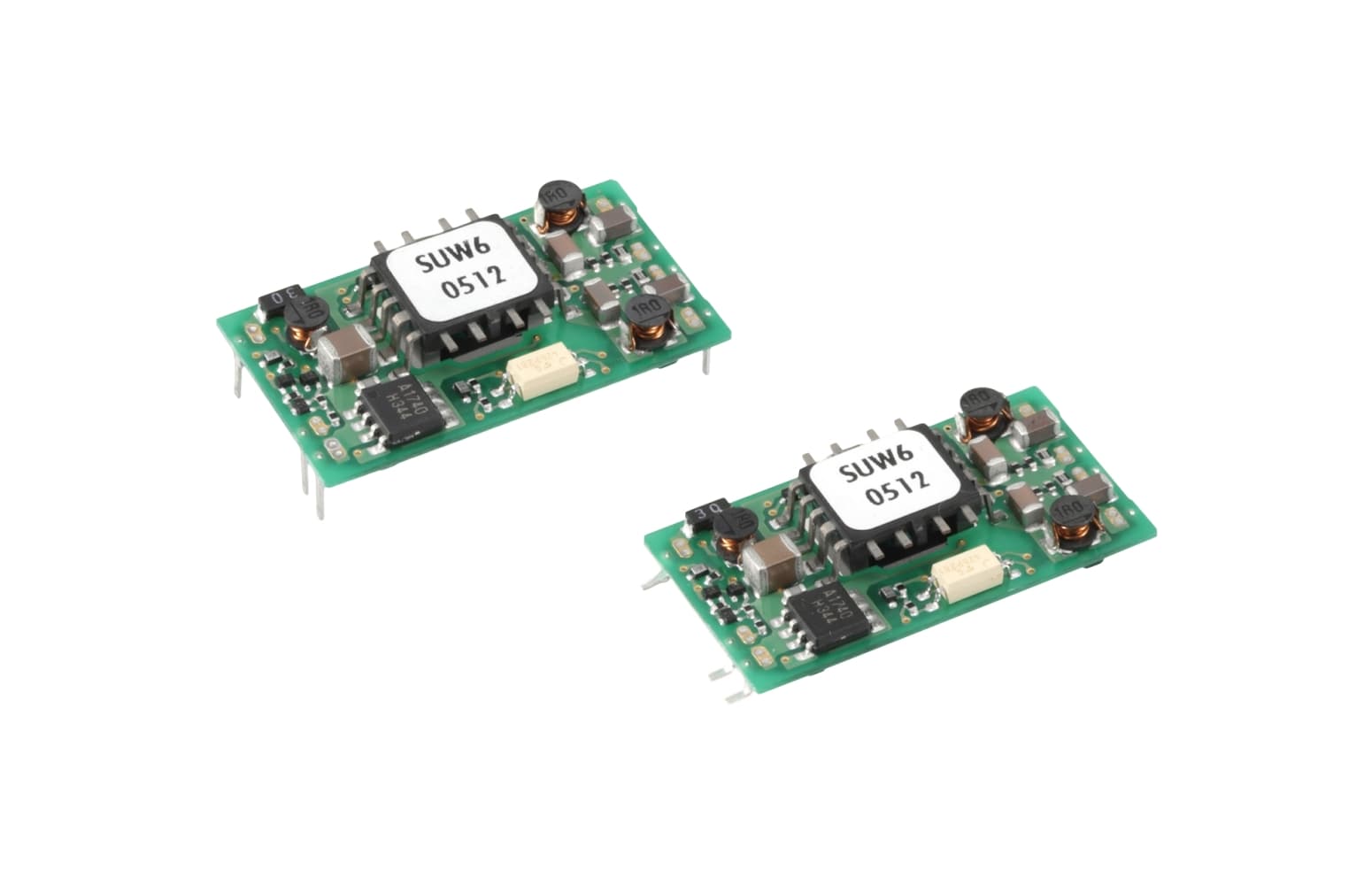

SUW6

SUW6

Key Product Features

  • Low Power DC-DC Converter
  • Operating Temperature (-40 to +85 °C)
  • Various Input/Output Combinations
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(620) "
SU(1)  W(2)  6(3)  12(4)  12(5)  B(6)  P(7)  -  □(8)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SU(1)  W(2)  6(3)  12(4)  12(5)  B(6)  P(7)  -  □(8)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification SUW60512 SUW60515 SUW61212 SUW61215 SUW62412 SUW62415 SUW64812 SUW64815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 76V
Output Voltage / Current ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A ±12V (+24V) 0.25A ±15V (+30V) 0.2A
Output Power 6W 6W 6W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 31.6x6.5x18.1mm 31.6x6.5x18.1mm 31.6x6.5x18.1mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
Technical Data SUW60512 SUW60515 SUW61212 SUW61215 SUW62412 SUW62415 SUW64812 SUW64815
Performance Data
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
