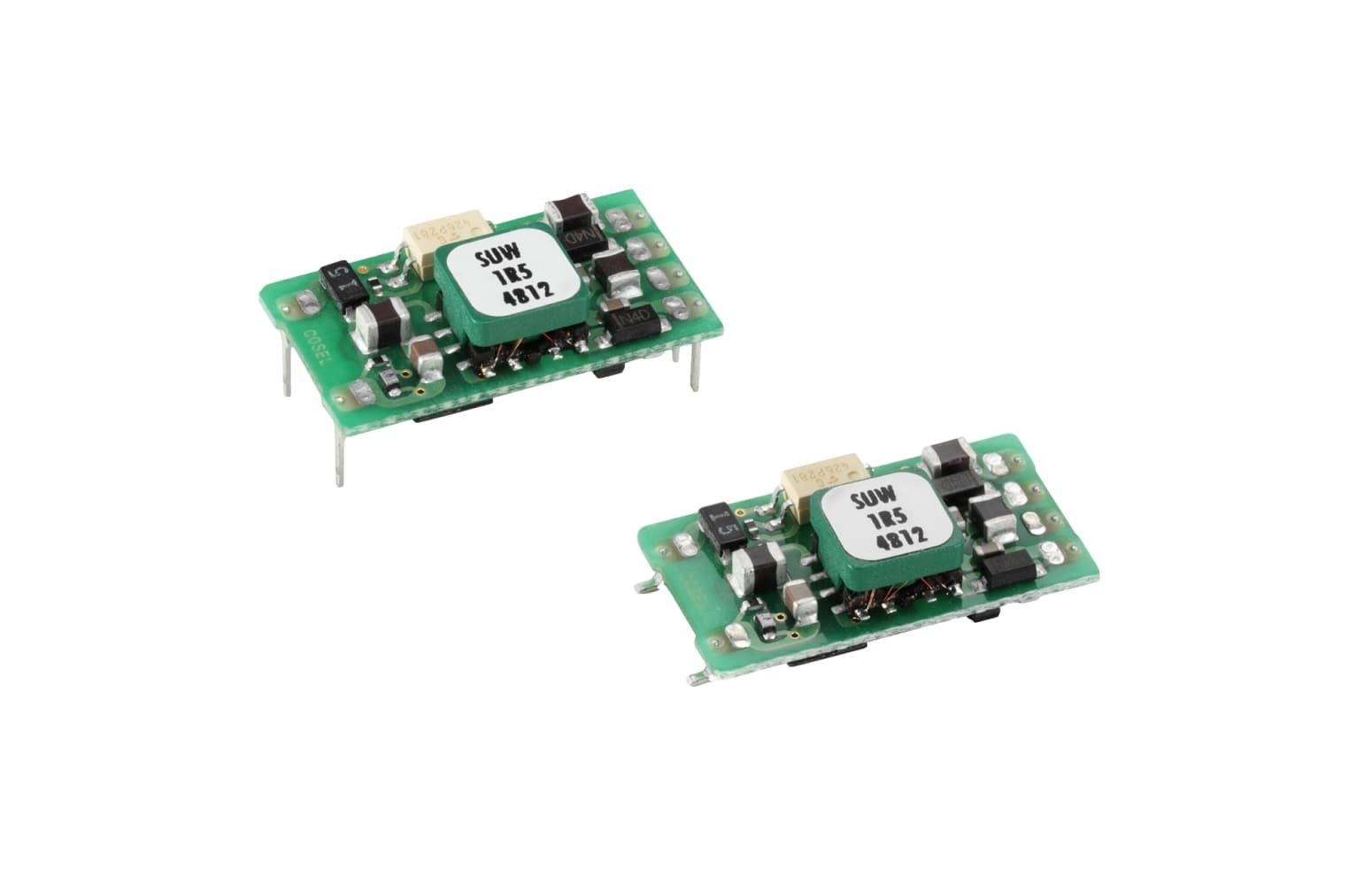

SUW1R5

SUW1R5

Key Product Features

  • Low Power DC-DC Converter
  • Operating Temperature (-40 to +85 °C)
  • Various Input/Output Combinations
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

SU(1)  W(2)  1R5(3)  12(4)  12(5)  B(6)  P(7)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
string(486) "
SU(1)  W(2)  1R5(3)  12(4)  12(5)  B(6)  P(7)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SU(1)  W(2)  1R5(3)  12(4)  12(5)  B(6)  P(7)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
Basic Specification SUW1R50512 SUW1R50515 SUW1R51212 SUW1R51215 SUW1R52412 SUW1R52415 SUW1R54812 SUW1R54815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 76V
Output Voltage / Current ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A
Output Power 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 to 95%RH (Non condensing) (Required Derating)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 21.4x6.5x12.2mm 21.4x6.5x12.2mm 21.4x6.5x12.2mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
