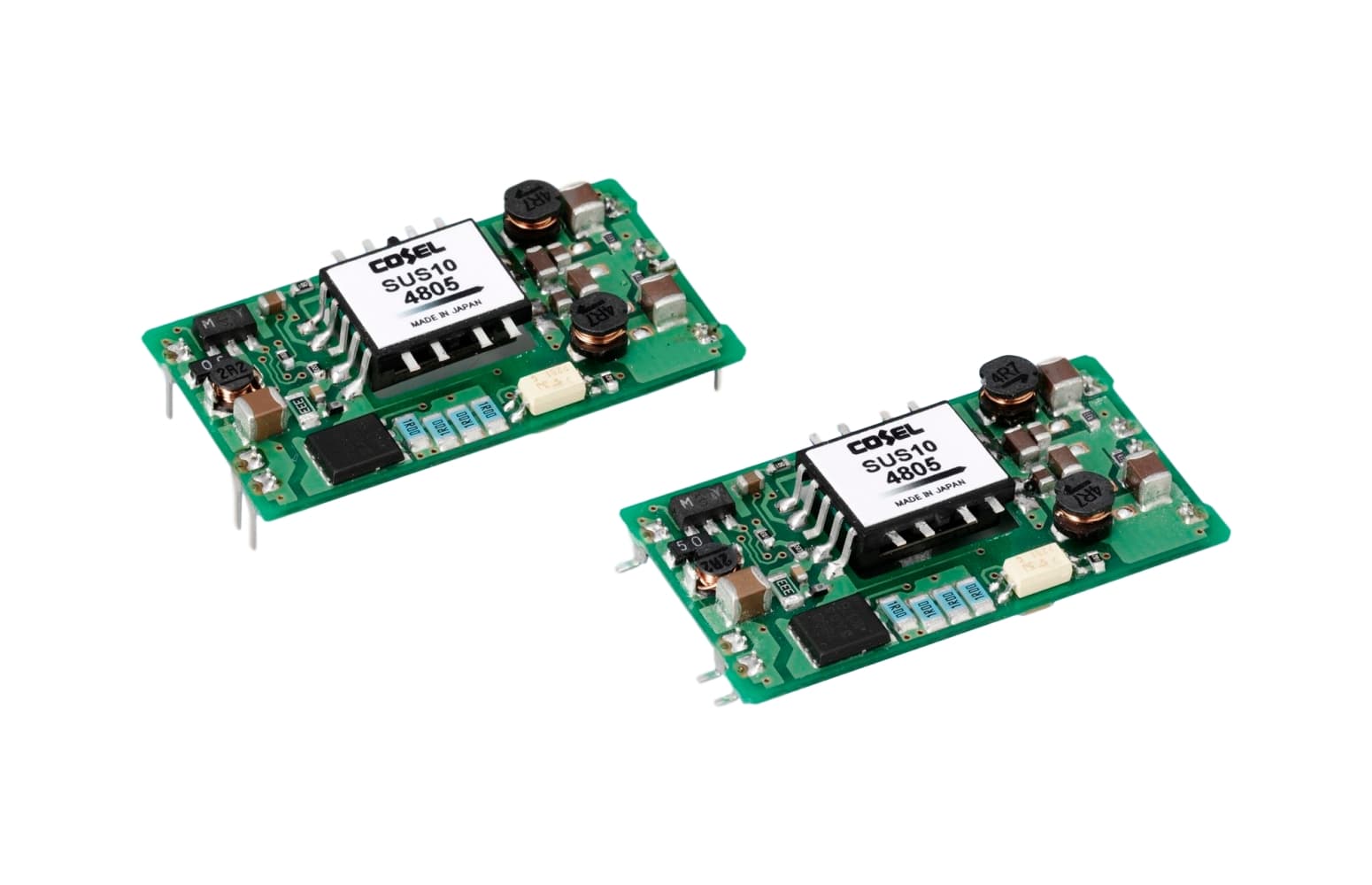

SUS10

SUS10

Key Product Features

  • Low Power DC-DC Converter
  • Operating Temperature (-40 to +85 °C)
  • Various Input/Output Combinations
  • Built in Remote On/Off
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High

Options

(For detailed information, please refer to the instruction manual)

  G: Capacitor between Input and Output is removed.
string(623) "
SU(1)  S(2)  10(3)  12(4)  05(5)  B(6)  P(7)  -  □(8)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  G: Capacitor between Input and Output is removed."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

SU(1)  S(2)  10(3)  12(4)  05(5)  B(6)  P(7)  -  □(8)

(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Mounting type
  B: SMD
  C: DIP
(7) Packing form
  Blank: Plastic cover
  P: Tray (SMD type)
(8) Optional
  G: Capacitor between Input and Output is removed.
Basic Specification SUS10053R3 SUS100505 SUS100512 SUS100515 SUS10123R3 SUS101205 SUS101212 SUS101215 SUS10243R3 SUS102405 SUS102412 SUS102415 SUS10483R3 SUS104805 SUS104812 SUS104815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC4.5 - 9V DC9 - 18V DC9 - 18V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V
Output Voltage / Current 3.3V 2.6A 5V 2A 12V 0.9A 15V 0.7A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A 3.3V 2.6A 5V 2A 12V 1A 15V 0.8A
Output Power 8.58W 10W 10.8W 10.5W 8.58W 10W 12W 8.58W 10W 12W 8.58W 10W 12W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating) -40 to +85℃, 20 - 95%RH (Non condensing) (Required Derating)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 39.2x6.5x21.0mm 39.2x6.5x21.0mm 39.2x6.5x21.0mm 39.2x6.5x21.0mm 39.2x6.5x21.0mm 39.2x6.5x21.0mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
Technical Data SUS10053R3 SUS100505 SUS100512 SUS100515 SUS10123R3 SUS101205 SUS101212 SUS101215 SUS10243R3 SUS102405 SUS102412 SUS102415 SUS10483R3 SUS104805 SUS104812 SUS104815
Performance Data
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
