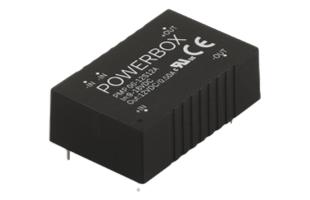

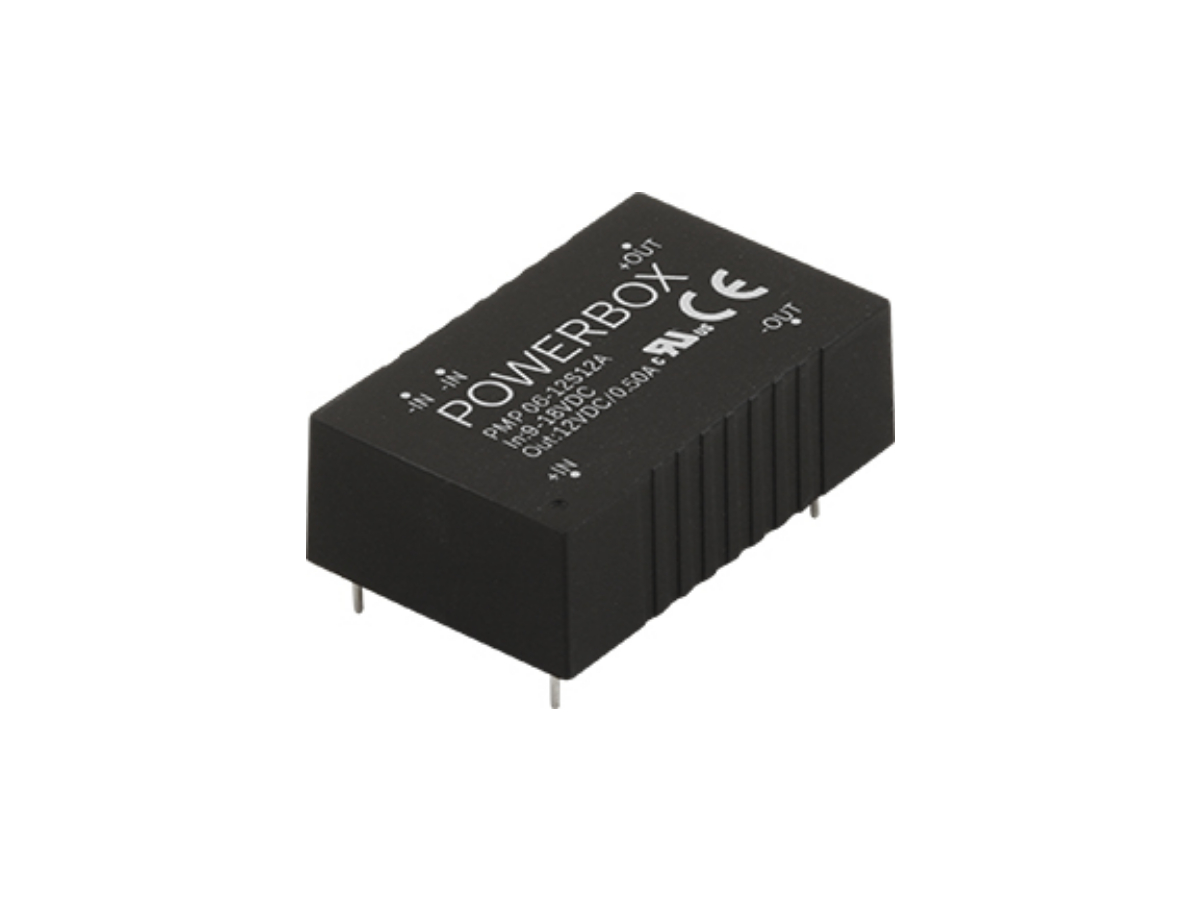

PMP10-24D

PMP10-24D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOOP & 3kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 10W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMP10-24D05A PMP10-24D12A PMP10-24D15A PMP10-24D05WA PMP10-24D12WA PMP10-24D15WA PMP10-24D05B PMP10-24D12B PMP10-24D15B PMP10-24D05WB PMP10-24D12WB PMP10-24D15WB
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V DC18 - 36V, DC9 - 36V
Output Voltage / Current V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A		 V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A		 V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A		 V1: 5V 1A
V2: 5V 1A		 V1: 12V 0.416A
V2: 12V 0.416A		 V1: 15V 0.333A
V2: 15V 0.333A
Output Power 10W 10W 10W 10W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 76℃ -40 to 76℃ -40 to 76℃ -40 to 76℃
Cooling Method Convection Convection Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMP10-24D05A PMP10-24D12A PMP10-24D15A PMP10-24D05WA PMP10-24D12WA PMP10-24D15WA PMP10-24D05B PMP10-24D12B PMP10-24D15B PMP10-24D05WB PMP10-24D12WB PMP10-24D15WB
Performance Data On request On request On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request On request On request
Reliability Data
