PRODUCTS DC-DC PMP SERIES PMP06-5D
Enquire

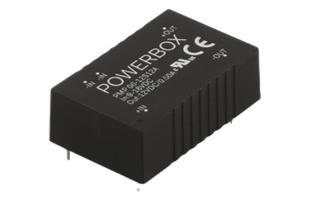

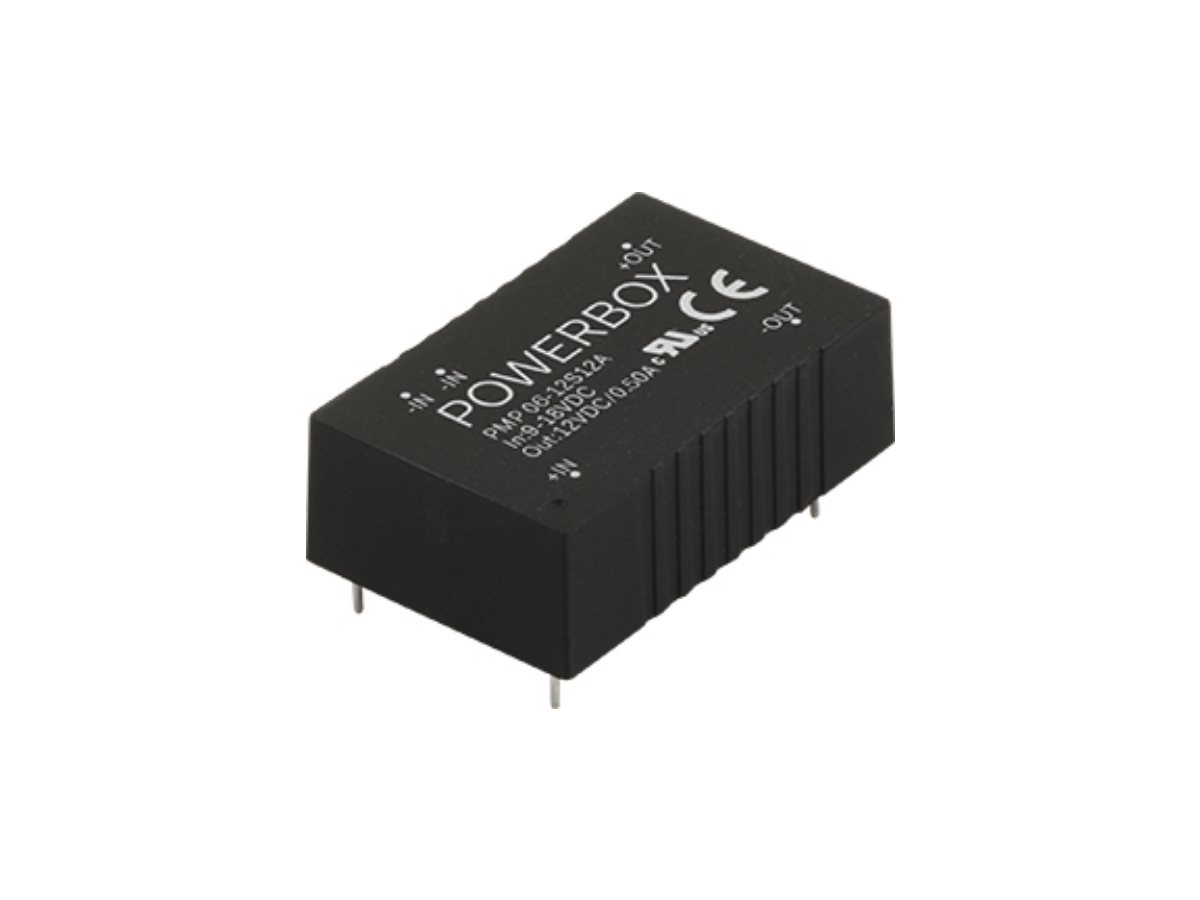

PMP06-5D

PMP06-5D

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOOP & 3kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 10W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMP06-05D05A PMP06-05D12A PMP06-05D15A PMP06-05D05B PMP06-05D12B PMP06-05D15B
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC4.5 - 9V
Output Voltage / Current 5V 0.6A 12V 0.25A 15V 0.2A V1: 5V 0.6A
V2: 5V 0.6A		 V1: 12V 0.25A
V2: 12V 0.25A		 V1: 15V 0.2A
V2: 15V 0.2A
Output Power 6W 6W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 87℃ -40 to 87℃
Cooling Method Convection Convection
Dimensions (W x H x D) 20.3x102x31.8mm 20.3x102x31.8mm
Safety Agency Approvals
Technical Data PMP06-05D05A PMP06-05D12A PMP06-05D15A PMP06-05D05B PMP06-05D12B PMP06-05D15B
Performance Data On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request
Reliability Data
