PRODUCTS DC-DC PMM SERIES PMM20-48SW
Enquire

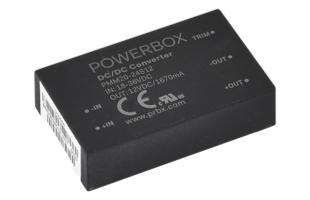

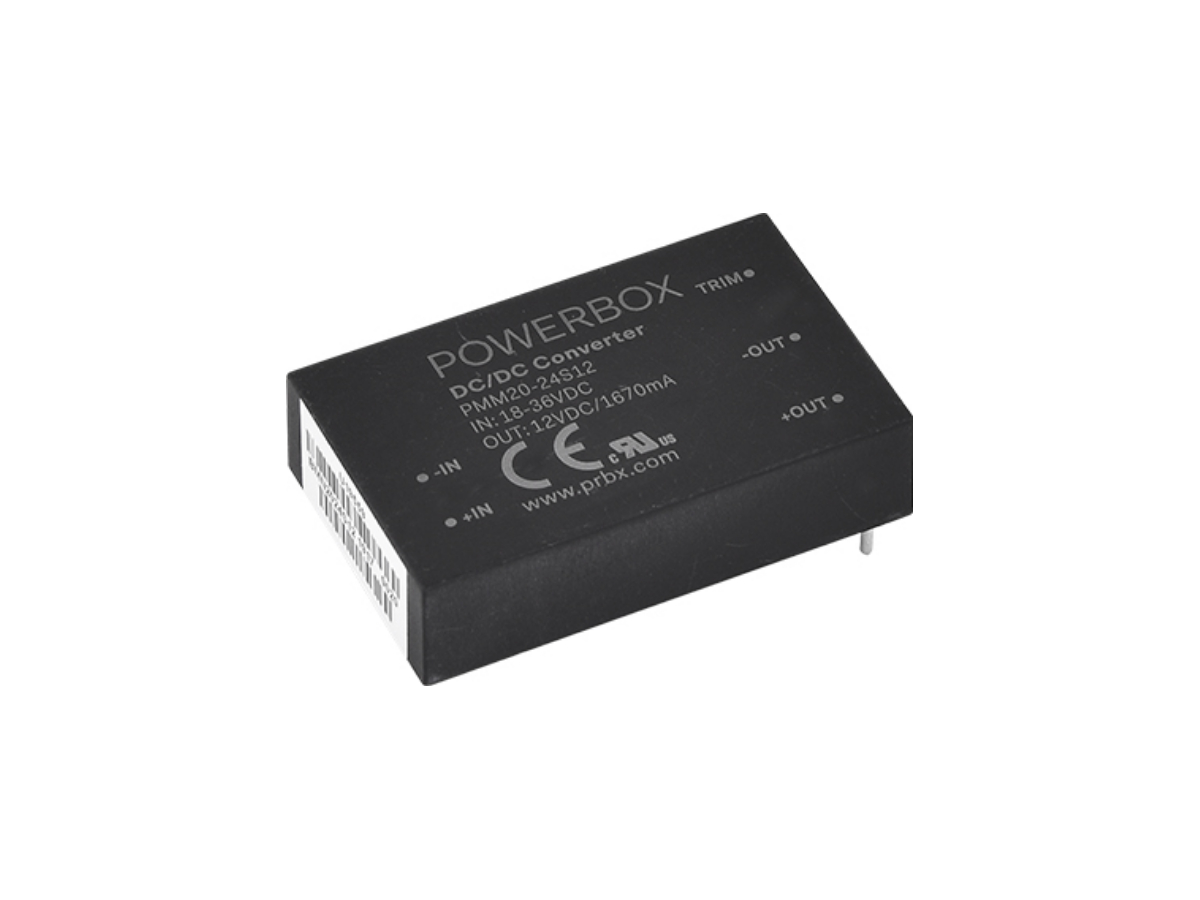

PMM20-48SW

PMM20-48SW

Key Product Features

  • Low Power Medical Approved DC-DC Converter
  • 2 x MOPP & 5kV Isolation
  • Low Leakage Current of just 2µA
  • Single or Dual Outputs
  • 3W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High
  • Leakage Current <0.5mA
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMM20-48S05W PMM20-48S12W PMM20-48S15W PMM20-48S24W
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V
Output Voltage / Current 5V 4A 12V 1.67A 15V 1.33A 24V 0.833A
Output Power 20W 20W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 105℃ -40 to 105℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x40.6mm 25.4x10.2x40.6mm
Safety Agency Approvals
Technical Data PMM20-48S05W PMM20-48S12W PMM20-48S15W PMM20-48S24W
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
Reliability Data
