PRODUCTS DC-DC PMF SERIES PMF30-48SW
Enquire

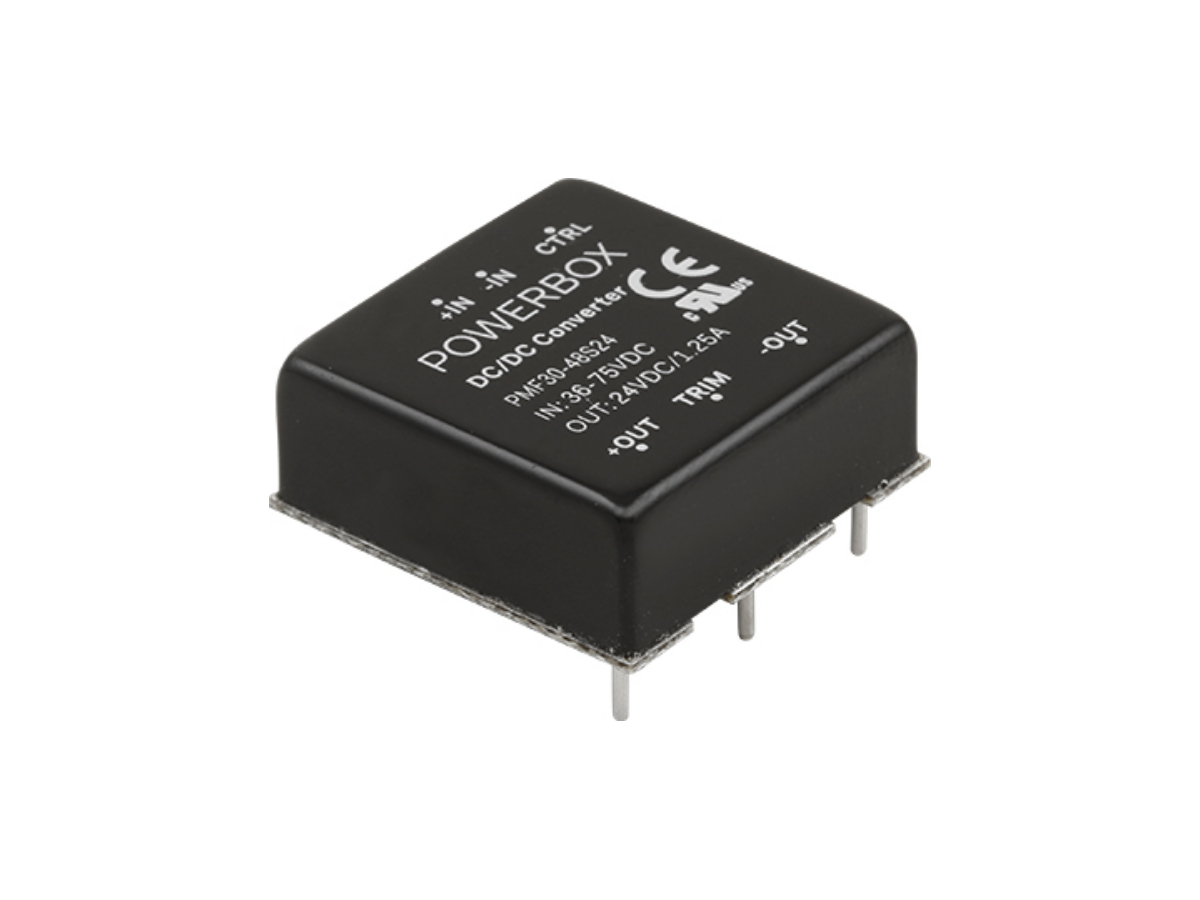

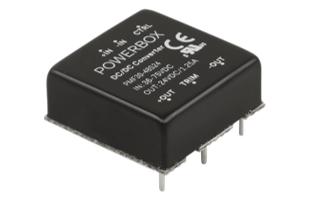

PMF30-48SW

PMF30-48SW

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 15W to 30W Output Power
  • SMD or TH Mounting
  • Various Protection Features

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMF30-48S3P3W PMF30-48S05W PMF30-48S12W PMF30-48S15W PMF30-48S24W
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V
Output Voltage / Current 3.3V 7A 5V 6A 12V 2.5A 15V 2A 24V 1.25A
Output Power 23.1W 30W 30W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 50℃ -40 to 50℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x9.9x25.4mm 25.4x9.9x25.4mm
Safety Agency Approvals
Technical Data PMF30-48S3P3W PMF30-48S05W PMF30-48S12W PMF30-48S15W PMF30-48S24W
Performance Data On request On request On request On request On request
EMC Data On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request
Reliability Data
