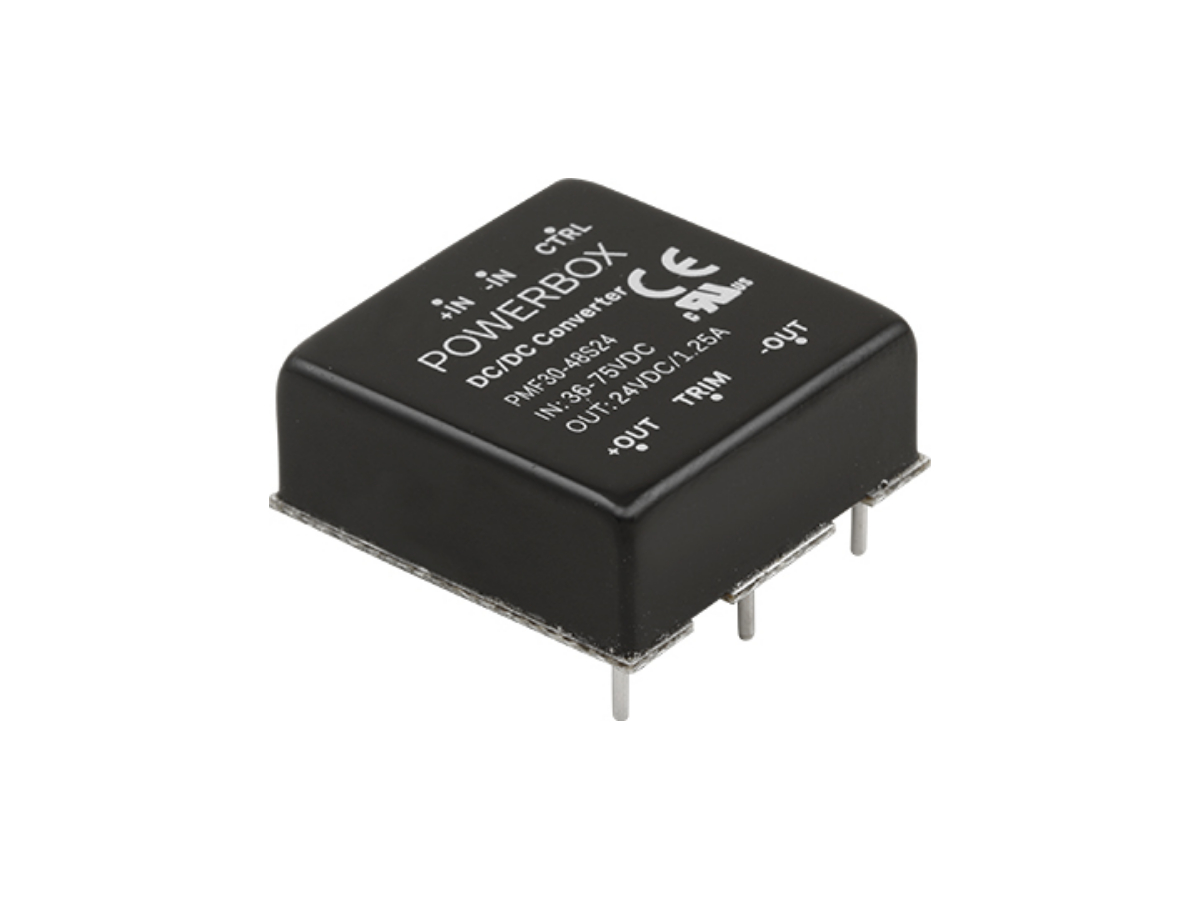

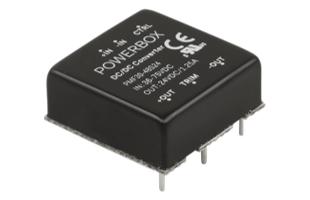

PRODUCTS DC-DC PMF SERIES PMF30-48D

PMF30-48D

Key Product Features

Low Power DC-DC Converter
Various Input Voltages
Single or Dual Outputs
15W to 30W Output Power
SMD or TH Mounting
Various Protection Features

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheets
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	PMF30-48D12W	PMF30-48D15W	PMF30-48D24W	PMF30-48D12	PMF30-48D15	PMF30-48D24
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC18 - 75V			DC18 - 75V, DC36 - 75V
Output Voltage / Current	V1: 12V 1.25A V2: 12V 1.25A	V1: 15V 1A V2: 15V 1A	V1: 24V 0.625A V2: 24V 0.625A	V1: 12V 1.25A V2: 12V 1.25A	V1: 15V 1A V2: 15V 1A	V1: 24V 0.625A V2: 24V 0.625A
Output Power	30W			30W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 50℃			-40 to 50℃
Cooling Method	Convection			Convection
Dimensions (W x H x D)	25.4x9.9x25.4mm			25.4x9.9x25.4mm
Safety Agency Approvals
Technical Data	PMF30-48D12W	PMF30-48D15W	PMF30-48D24W	PMF30-48D12	PMF30-48D15	PMF30-48D24
Performance Data	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request
Reliability Data
