PRODUCTS DC-DC PMF SERIES PMF20-48S
Enquire

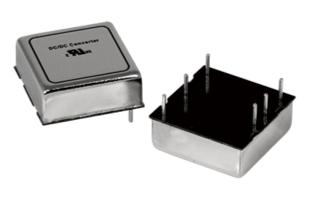

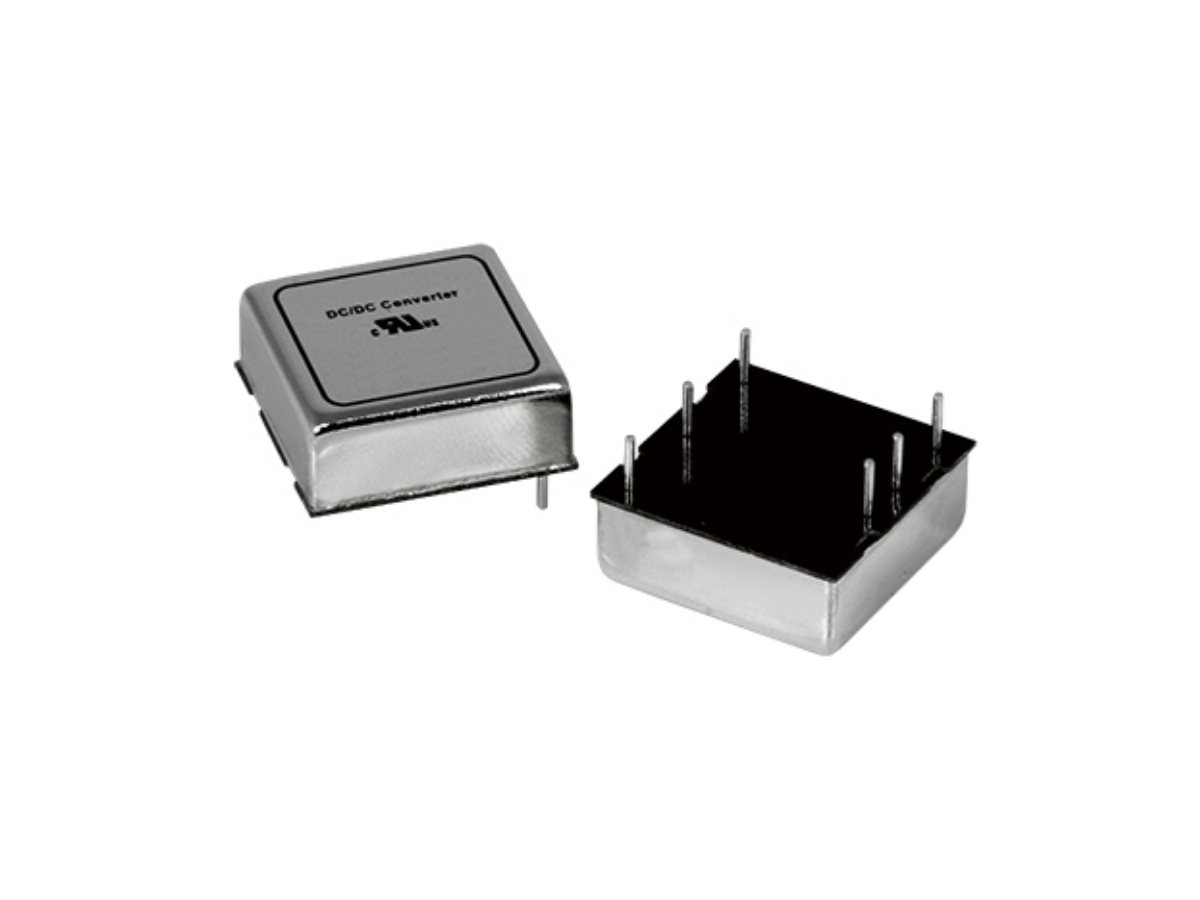

PMF20-48S

PMF20-48S

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 15W to 30W Output Power
  • SMD or TH Mounting
  • Various Protection Features

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMF20-48S3P3 PMF20-48S05 PMF20-48S12 PMF20-48S15
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC36 - 75V DC36 - 75V
Output Voltage / Current 3.3V 4.5A 5V 4A 12V 1.67A 15V 1.33A
Output Power 20W 20W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 60℃ -40 to 60℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x9.9x25.4mm 25.4x9.9x25.4mm
Safety Agency Approvals
Technical Data PMF20-48S3P3 PMF20-48S05 PMF20-48S12 PMF20-48S15
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
Reliability Data
