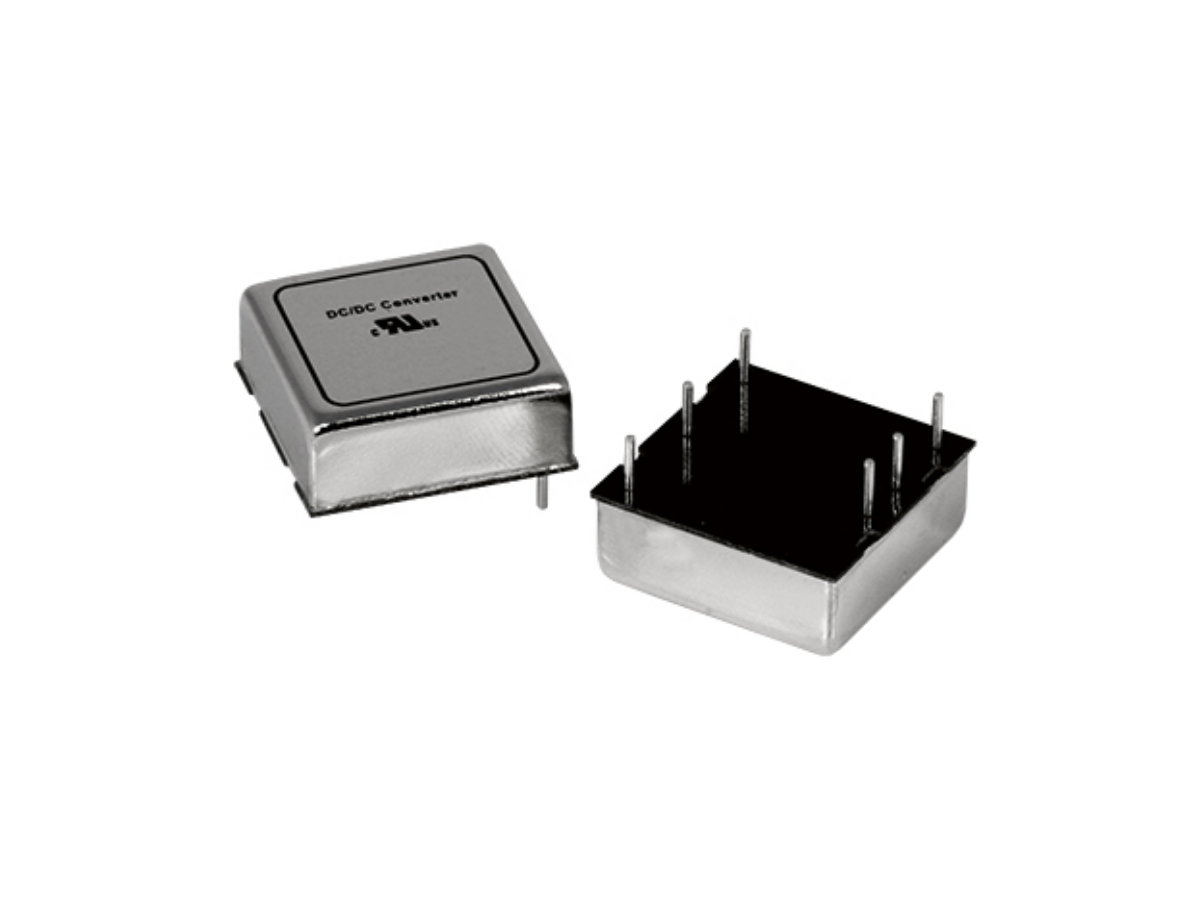

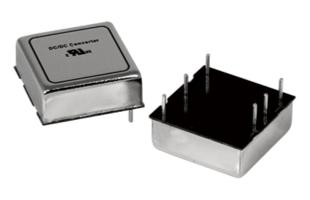

PMF20-24D
Options
Drawings
Safety Certificates
Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.
| Basic Specification | PMF20-24D12 | PMF20-24D15 |
|---|---|---|
| Check Stock | Check Stock | |
| Input Voltage Range | DC18 - 36V | |
| Output Voltage / Current | V1: 12V 0.833A V2: 12V 0.833A |
V1: 15V 0.667A V2: 15V 0.667A |
| Output Power | 20W | |
| Output Voltage Adj Range | Refer to datasheet | |
| Operating Temp (°C) | -40 to 60℃ | |
| Cooling Method | Convection | |
| Dimensions (W x H x D) | 25.4x9.9x25.4mm | |
| Safety Agency Approvals | ||
| Technical Data | PMF20-24D12 | PMF20-24D15 |
| Performance Data | On request | On request |
| EMC Data | On request | On request |
| Expected Life | N/A | N/A |
| MTBF | On request | On request |
| Reliability Data | ||
