PRODUCTS DC-DC PME SERIES PME10-48S
Enquire

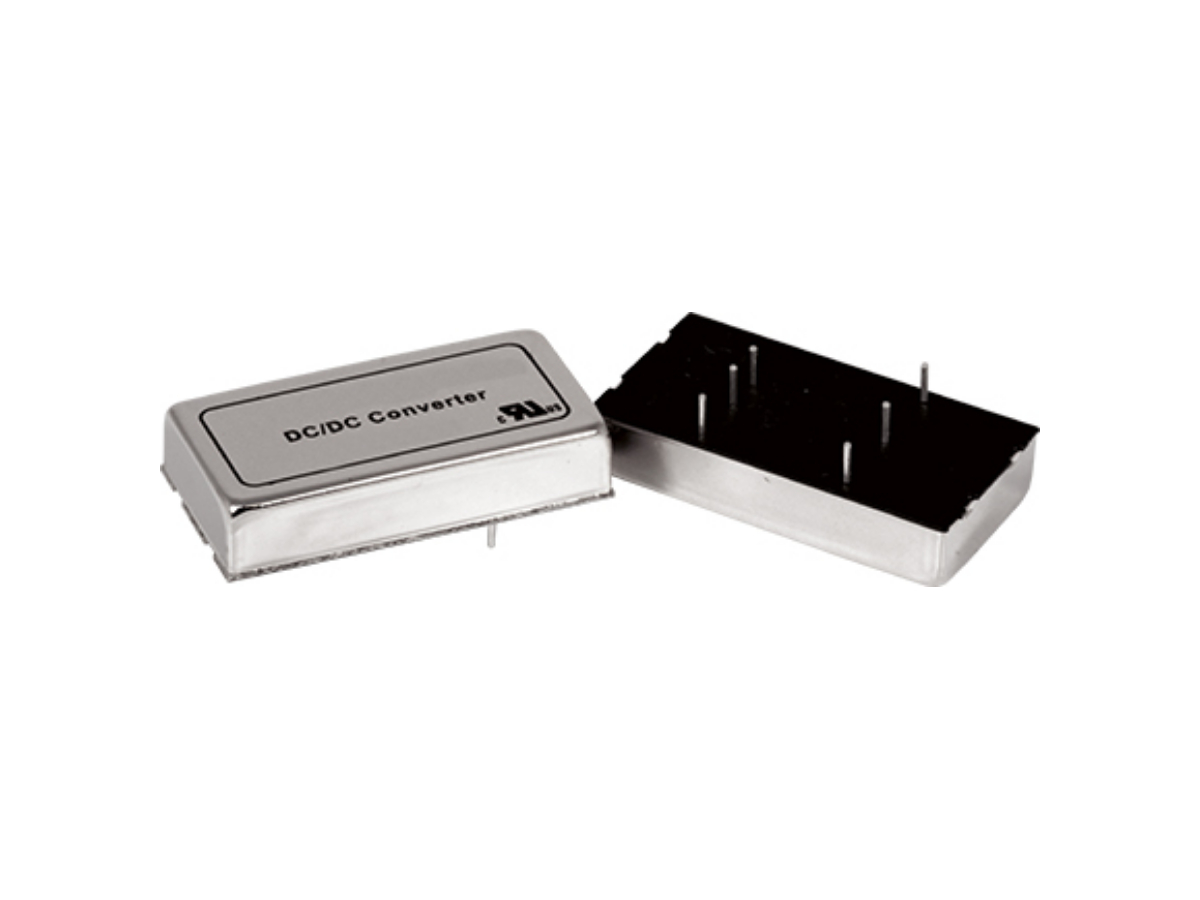

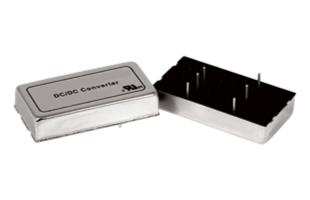

PME10-48S

PME10-48S

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single, Dual or Triple Outputs
  • 3W to 60W Output Power
  • SMD or TH Mounting
  • Various Protection Features

*PME03 and PME40 series will be discontinued on 31.08.2023

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PME10-48S33 PME10-48S05 PME10-48S12 PME10-48S15 PME10-48S33W PME10-48S05W PME10-48S12W PME10-48S15W
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC36 - 75V DC36 - 75V DC36 - 75V, DC18 - 75V DC36 - 75V, DC18 - 75V
Output Voltage / Current 3.3V 2A 5V 2A 12V 0.83A 15V 0.67A 3.3V 2.5A 5V 2A 12V 0.83A 15V 0.67A
Output Power 10W 10W 10W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -25 to 77.2℃ -25 to 77.2℃ -25 to 77.2℃
Cooling Method Convection Convection Convection
Dimensions (W x H x D) 25.4x10.2x50.8mm 25.4x10.2x50.8mm 25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data PME10-48S33 PME10-48S05 PME10-48S12 PME10-48S15 PME10-48S33W PME10-48S05W PME10-48S12W PME10-48S15W
Performance Data On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request
Reliability Data
