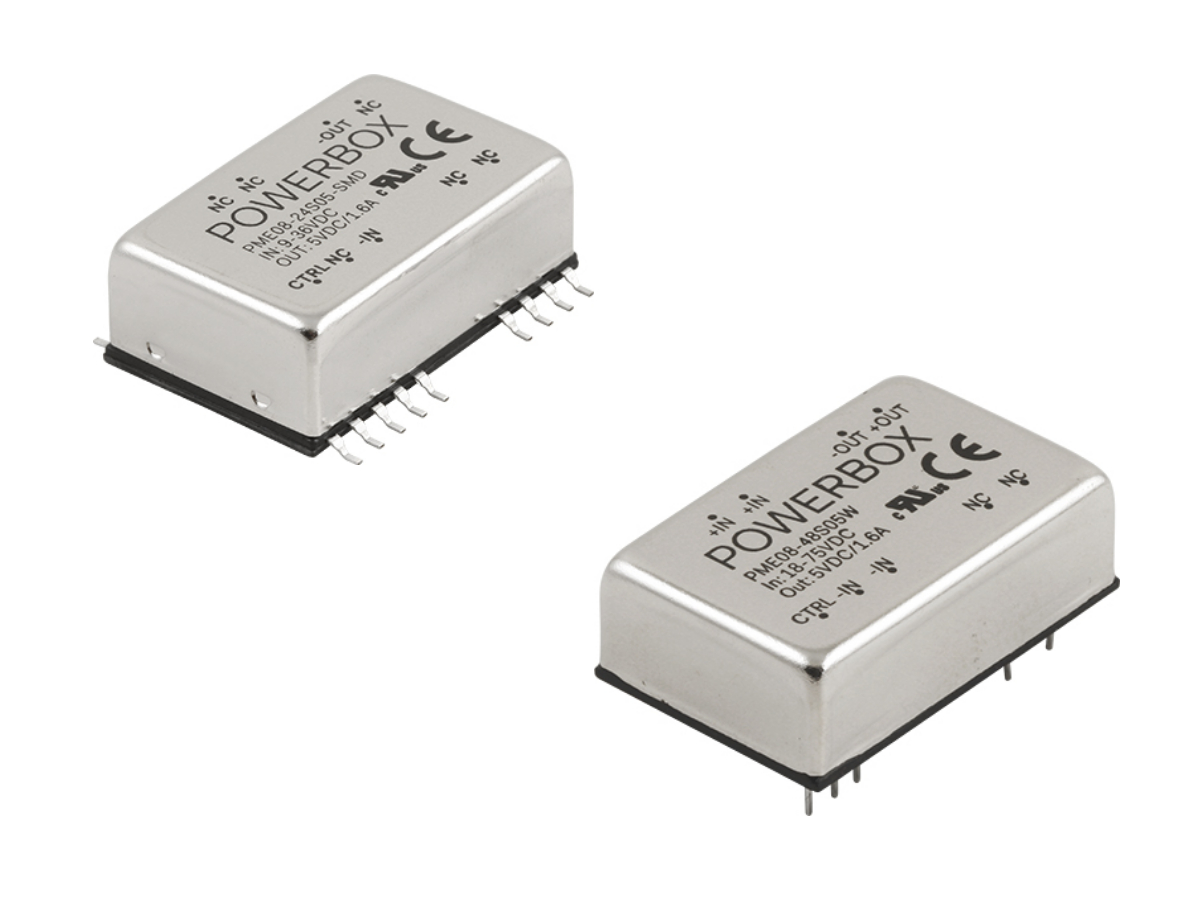

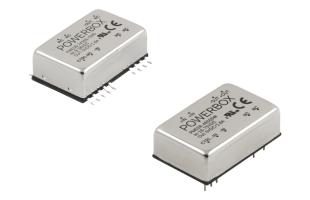

PME08-48D
Options
Drawings
Safety Certificates
Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.
| Basic Specification | PME08-48D05 | PME08-48D12 | PME08-48D15 |
|---|---|---|---|
| Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | DC36 - 75V | ||
| Output Voltage / Current | V1: 5V 0.8A V2: 5V 0.8A |
V1: 12V 0.333A V2: 12V 0.333A |
V1: 15V 0.267A V2: 15V 0.267A |
| Output Power | 8W | ||
| Output Voltage Adj Range | Refer to datasheet | ||
| Operating Temp (°C) | -40 to 70℃ | ||
| Cooling Method | Convection | ||
| Dimensions (W x H x D) | 20.3x10.2x31.8mm | ||
| Safety Agency Approvals | |||
| Technical Data | PME08-48D05 | PME08-48D12 | PME08-48D15 |
| Performance Data | On request | On request | On request |
| EMC Data | On request | On request | On request |
| Expected Life | N/A | N/A | N/A |
| MTBF | On request | On request | On request |
| Reliability Data | |||
