PRODUCTS DC-DC PMD SERIES PMD30-24D
Enquire

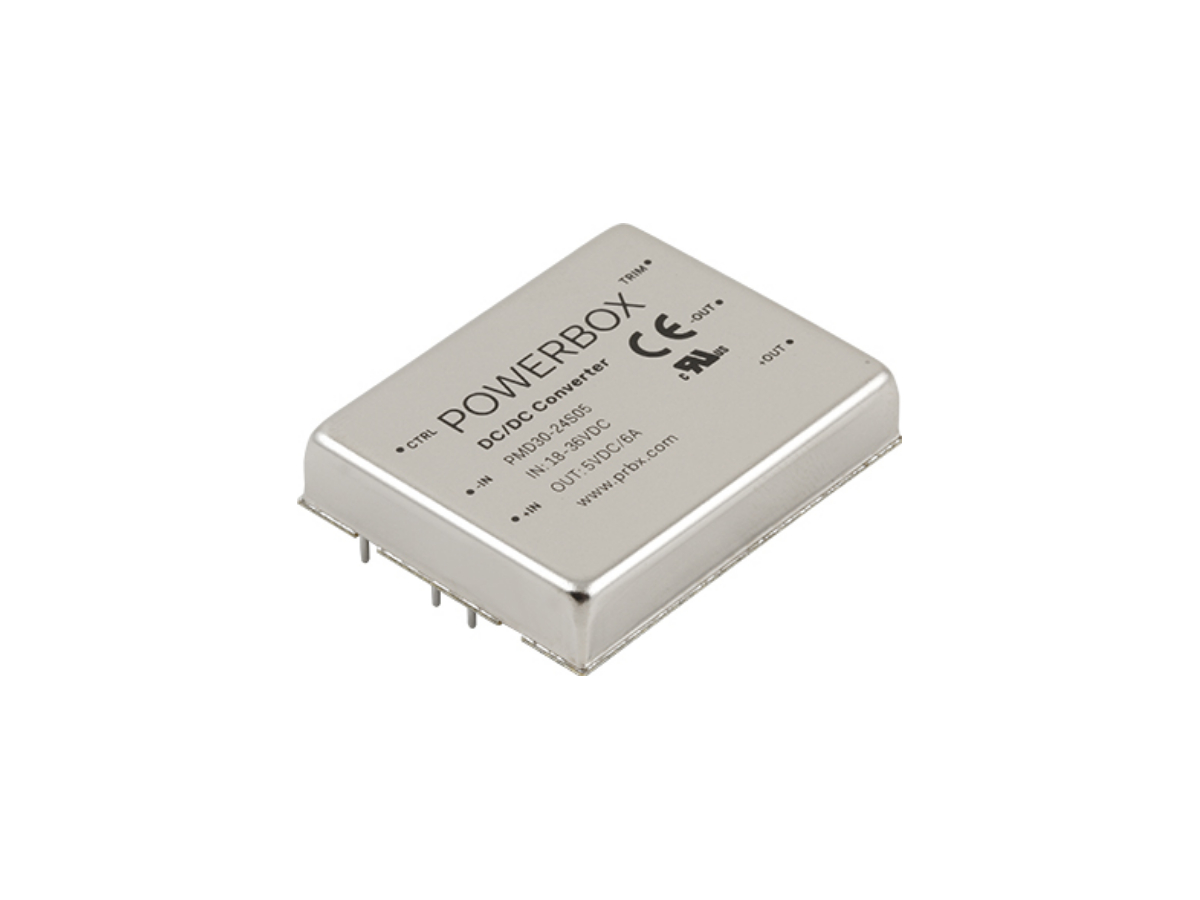

PMD30-24D

PMD30-24D

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 12W to 30W Output Power
  • Various Protection Features
  • 5 or 6 Side Fully Shielded

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMD30-24D12 PMD30-24D15
  Check Stock Check Stock
Input Voltage Range DC18 - 36V
Output Voltage / Current V1: 12V 1.25A
V2: 12V 1.25A		 V1: 15V 1A
V2: 15V 1A
Output Power 30W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to 62.9℃
Cooling Method Convection
Dimensions (W x H x D) 40.6x10.2x50.8mm
Safety Agency Approvals
Technical Data PMD30-24D12 PMD30-24D15
Performance Data On request On request
EMC Data On request On request
Expected Life N/A N/A
MTBF On request On request
Reliability Data
