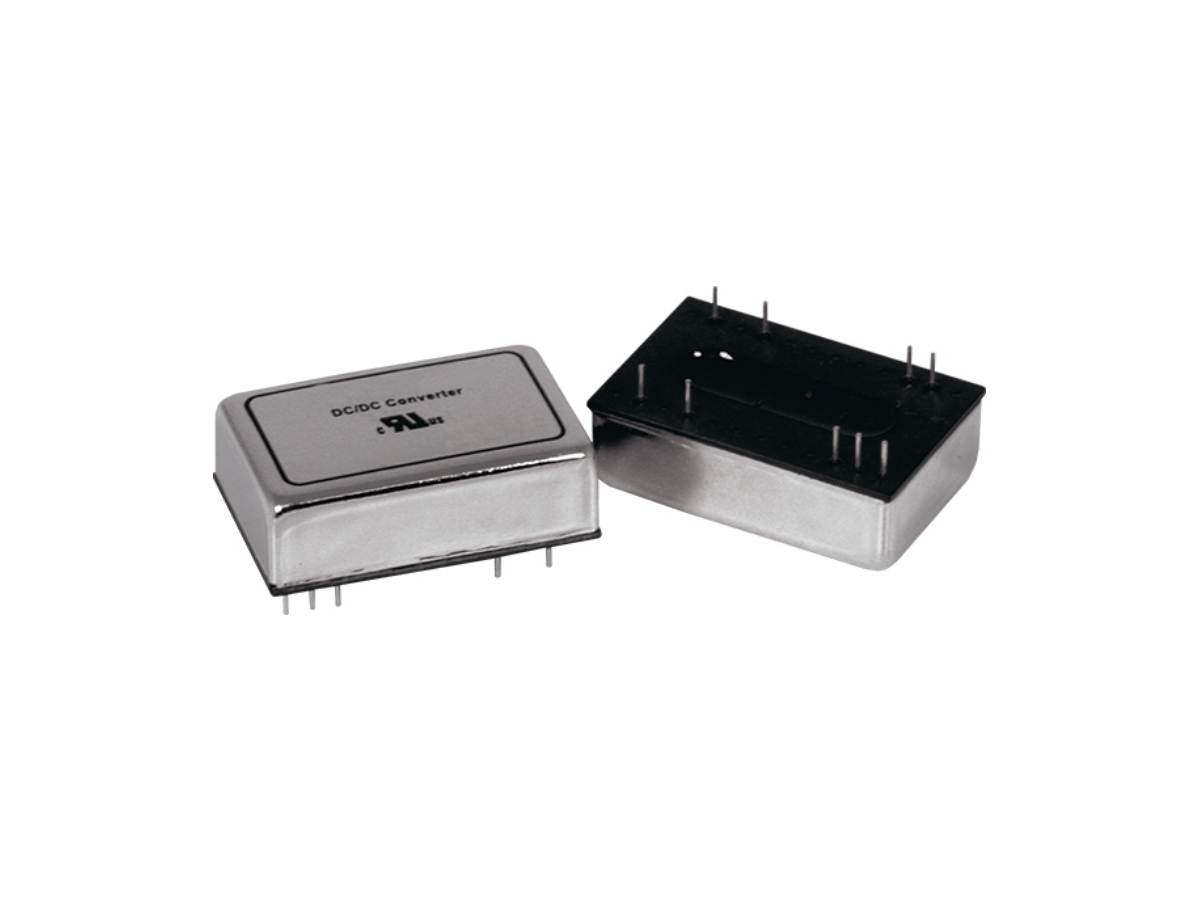

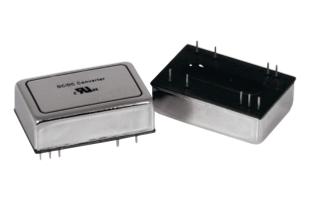

PRODUCTS DC-DC PMD SERIES PMD20-12S

PMD20-12S

Key Product Features

Low Power DC-DC Converter
Various Input Voltages
Single or Dual Outputs
12W to 30W Output Power
Various Protection Features
5 or 6 Side Fully Shielded

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheet
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	PMD20-12S1P5	PMD20-12S1P8	PMD20-12S2P5	PMD20-12S3P3	PMD20-12S05	PMD20-12S12	PMD20-12S15
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC9 - 18V			DC9 - 18V			DC9 - 18V
Output Voltage / Current	1.5V 6A	1.8V 6A	2.5V 6A	3.3V 5A	5V 4A	12V 1.67A	15V 1.33A
Output Power	20W			20W			20W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 70℃			-40 to 70℃			-40 to 70℃
Cooling Method	Convection			Convection			Convection
Dimensions (W x H x D)	25.4x10.2x50.8mm			25.4x10.2x50.8mm			25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data	PMD20-12S1P5	PMD20-12S1P8	PMD20-12S2P5	PMD20-12S3P3	PMD20-12S05	PMD20-12S12	PMD20-12S15
Performance Data	On request	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request	On request
