PRODUCTS DC-DC PMD SERIES PMD15-48S
Enquire

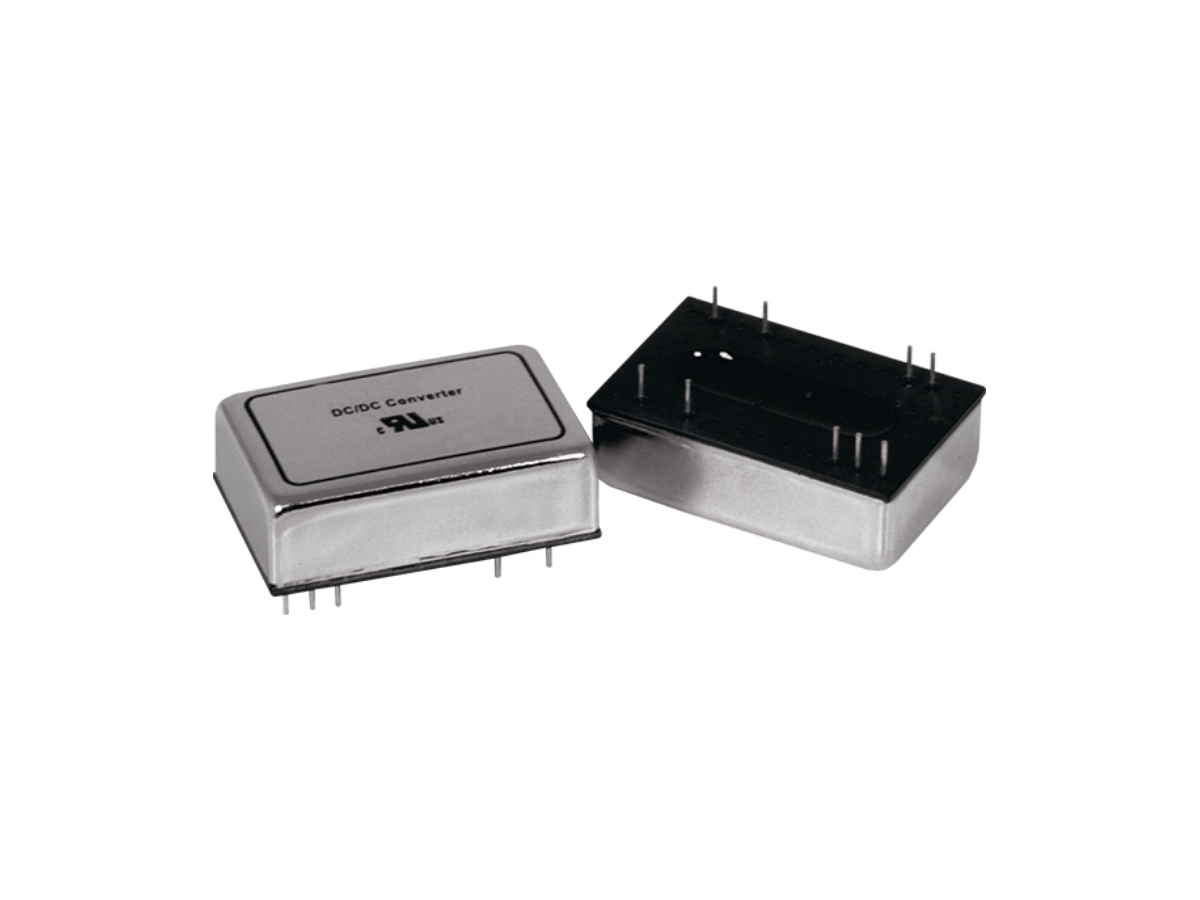

PMD15-48S

PMD15-48S

Key Product Features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 12W to 30W Output Power
  • Various Protection Features
  • 5 or 6 Side Fully Shielded

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMD15-48S33 PMD15-48S05 PMD15-48S12 PMD15-48S15
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC36 - 75V DC36 - 75V
Output Voltage / Current 3.3V 4A 5V 3A 12V 1.25A 15V 1A
Output Power 15W 15W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 63℃ -40 to 63℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x50.8mm 25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data PMD15-48S33 PMD15-48S05 PMD15-48S12 PMD15-48S15
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
Reliability Data
