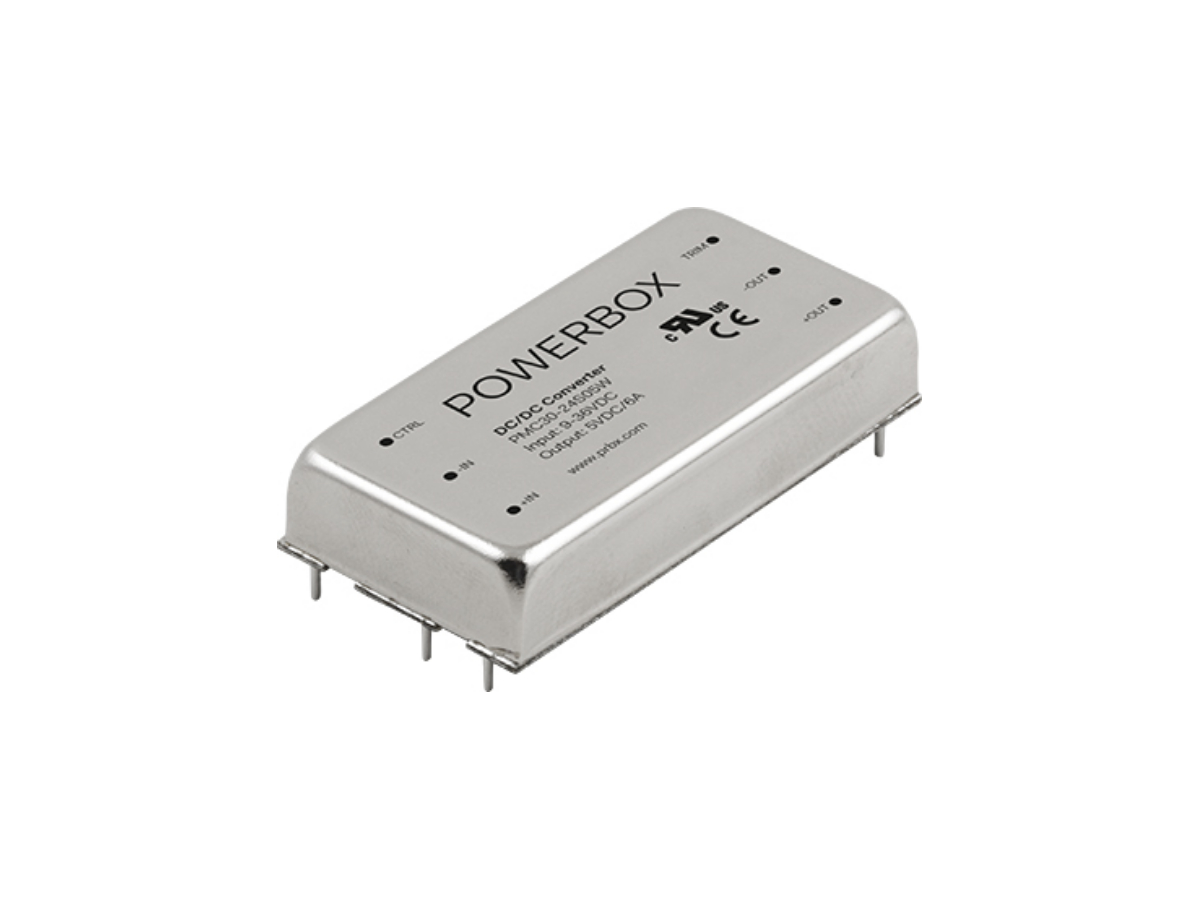

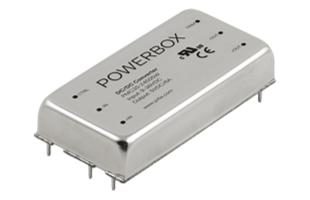

PMC30-48TW

PMC30-48TW

Key Product Features

  • Low Power DC-DC Converter
  • SMD or TH Option
  • Various Input Voltages
  • Single, Dual or Triple Outputs
  • 2W to 30W Output Power
  • Various Protection Features

Technical Features

  • < 1U High

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheets
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PMC30-48T3312W PMC30-48T3315W PMC30-48T0512W PMC30-48T0515W
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V
Output Voltage / Current V1: 3.3V 5A
V2: 12V 0.416A
V3: -12V 0.416A		 V1: 3.3V 5A
V2: 15V 0.333A
V3: -15V 0.333A		 V1: 5V 4A
V2: 12V 0.416A
V3: -12V 0.416A		 V1: 5V 4A
V2: 15V 0.333A
V3: -15V 0.333A
Output Power 26.5W 30W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 55℃ -40 to 55℃
Cooling Method Convection Convection
Dimensions (W x H x D) 25.4x10.2x50.8mm 25.4x10.2x50.8mm
Safety Agency Approvals
Technical Data PMC30-48T3312W PMC30-48T3315W PMC30-48T0512W PMC30-48T0515W
Performance Data On request On request On request On request
EMC Data On request On request On request On request
Expected Life N/A N/A N/A N/A
MTBF On request On request On request On request
