PRODUCTS DC-DC PFB SERIES PFB400-48SW
Enquire

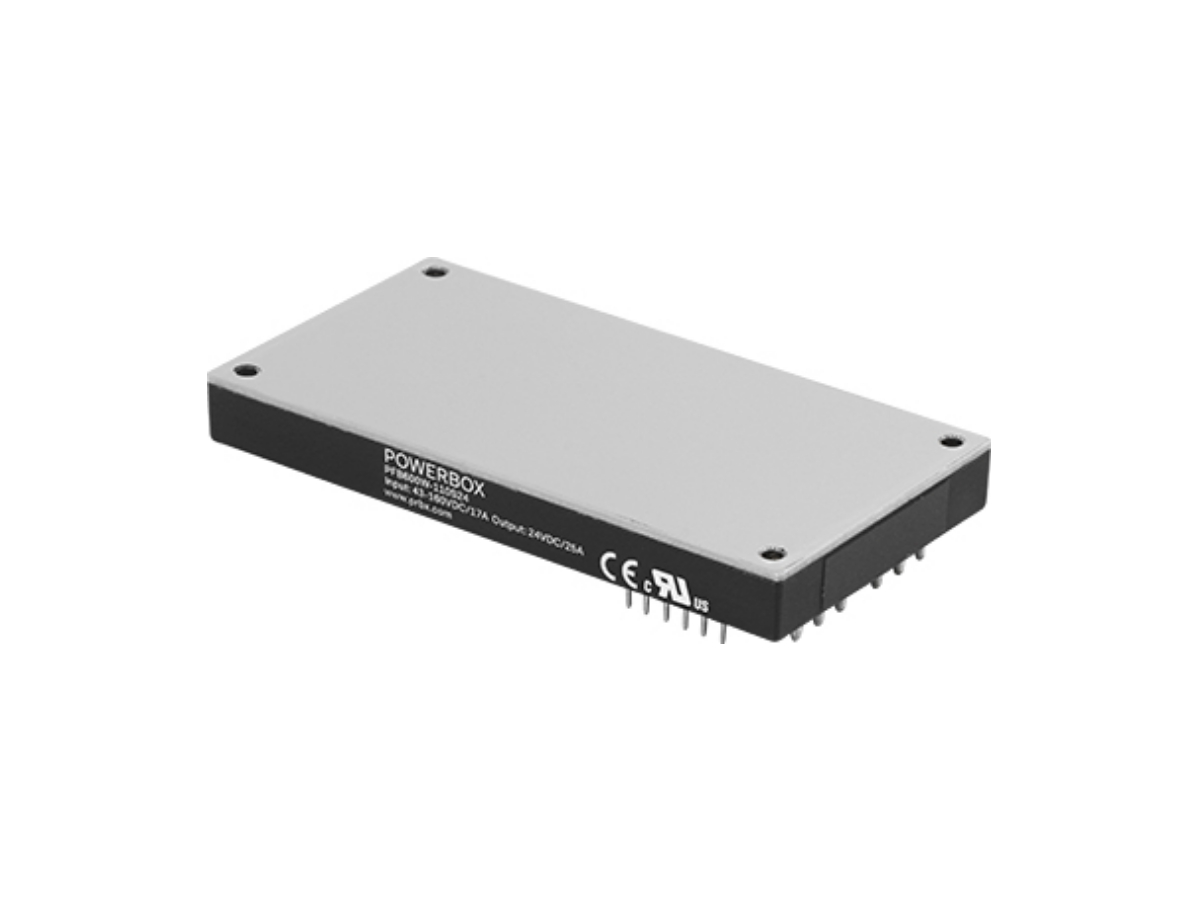

PFB400-48SW

PFB400-48SW

Key Product Features

  • Full Brick Size DC-DC Converter
  • 400W - 750W Output Power
  • Up to 425V Input
  • Various Protection Features
  • Conduction Cooled
  • Up to 92% Efficiency

*PFB600W-110S and PFB750W-300S series will be discontinued on 31.08.2023

Technical Features

  • < 1U High
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PFB400W-48S05 PFB400W-48S12 PFB400W-48S24 PFB400W-48S28 PFB400W-48S48 PFB400W-48S05P PFB400W-48S12P PFB400W-48S24P PFB400W-48S28P PFB400W-48S48P
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V DC18 - 75V DC18 - 75V
Output Voltage / Current 5V 80A 12V 33.3A 24V 16.7A 28V 14.3A 48V 8.3A 5V 80A 12V 33.3A 24V 16.7A 28V 14.3A 48V 8.3A
Output Power 400W 400W 400W 400W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 100℃ -40 to 100℃ -40 to 100℃ -40 to 100℃
Cooling Method Convection;Conduction/baseplate Convection;Conduction/baseplate Convection;Conduction/baseplate Convection;Conduction/baseplate
Dimensions (W x H x D) 61x12.7x116.8mm 61x12.7x116.8mm 61x12.7x116.8mm 61x12.7x116.8mm
Safety Agency Approvals
Technical Data PFB400W-48S05 PFB400W-48S12 PFB400W-48S24 PFB400W-48S28 PFB400W-48S48 PFB400W-48S05P PFB400W-48S12P PFB400W-48S24P PFB400W-48S28P PFB400W-48S48P
Performance Data On request On request On request On request On request On request On request On request On request On request
EMC Data On request On request On request On request On request On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request On request On request On request On request On request
Reliability Data
