PRODUCTS DC-DC PAF SERIES PAF150-48SW
Enquire

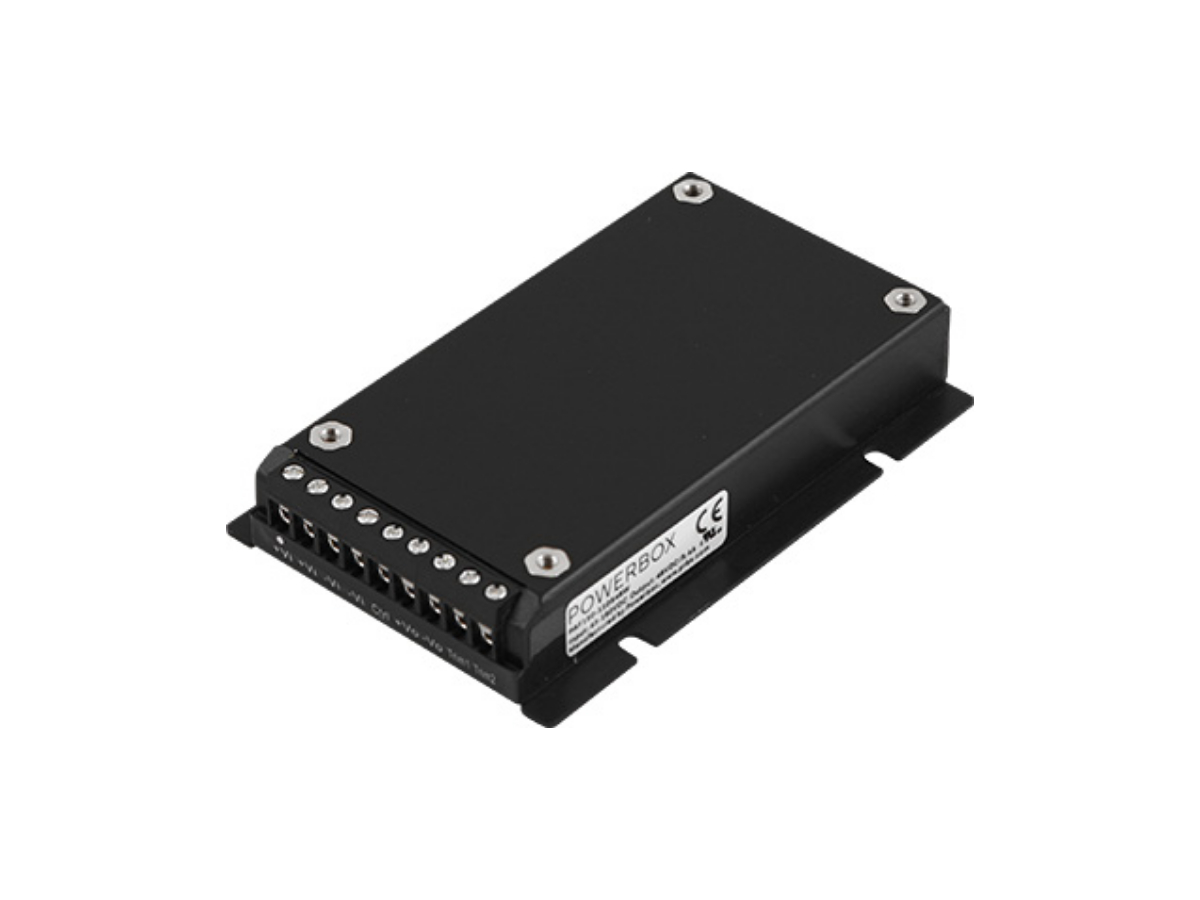

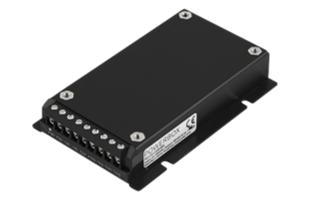

PAF150-48SW

PAF150-48SW

Key Product Features

  • Wall Mountable DC-DC Converter
  • Railway Approved
  • Adjustable Output Voltage
  • Input Reverse Protection
  • Six Sided Shielding
  • Constant Current & Constant Voltage

Technical Features

  • < 1U High
  • Constant Current
  • Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification PAF150-48S12W PAF150-48S15W PAF150-48S24W PAF150-48S28W PAF150-48S48W
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 75V DC18 - 75V
Output Voltage / Current 12V 12.5A 15V 10A 24V 6.3A 28V 5.4A 48V 3.2A
Output Power 150W 150W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to 50℃ -40 to 50℃
Cooling Method Convection Convection
Dimensions (W x H x D) 65x17x98mm 65x17x98mm
Safety Agency Approvals
Technical Data PAF150-48S12W PAF150-48S15W PAF150-48S24W PAF150-48S28W PAF150-48S48W
Performance Data On request On request On request On request On request
EMC Data On request On request On request On request On request
Expected Life N/A N/A N/A N/A N/A
MTBF On request On request On request On request On request
Reliability Data
