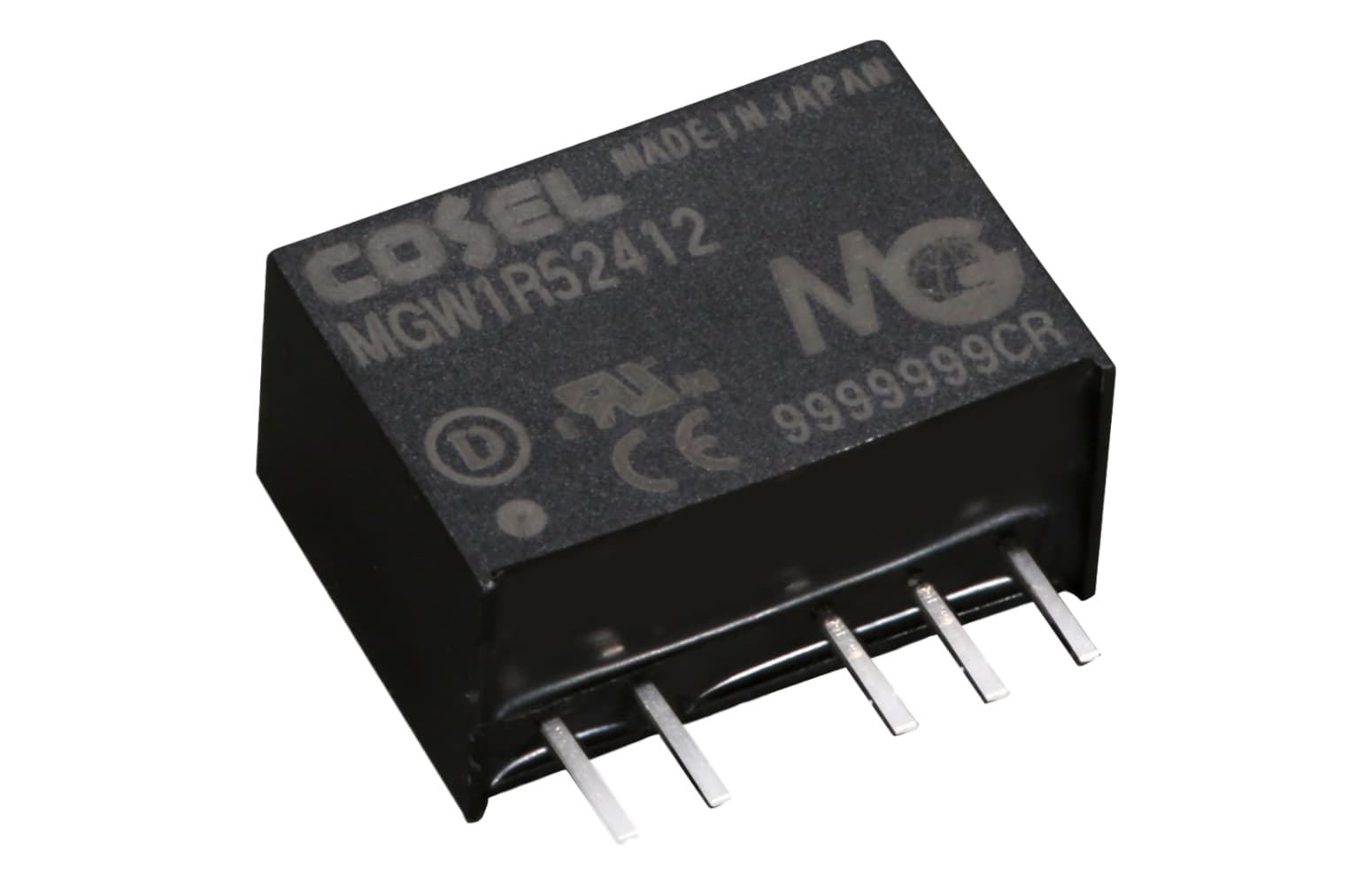

MGW1R5

MGW1R5

Key Product Features

  • Low Power DC-DC Converter
  • Industry Standard Pin Layout
  • Fully Potted
  • Built in Remote On/Off
  • 10 Year Warranty
  • EN & UL Approved

Technical Features

  • Remote On/Off
  • < 1U High

Options

(For detailed information, please refer to the instruction manual)

MG(1)　W(2)　1R5(3)　24(4)　12(5)　-　□(6)　

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
string(271) "
MG(1)　W(2)　1R5(3)　24(4)　12(5)　-　□(6)　
(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

MG(1)　W(2)　1R5(3)　24(4)　12(5)　-　□(6)　

(1) Series name
(2) Dual output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
Basic Specification MGW1R50512 MGW1R50515 MGW1R51212 MGW1R51215 MGW1R52412 MGW1R52415 MGW1R54812 MGW1R54815
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC4.5 - 9V DC9 - 18V DC18 - 36V DC36 - 76V
Output Voltage / Current ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A ±12V (+24V) 0.065A ±15V (+30V) 0.05A
Output Power 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W 1.56W 1.5W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 to 95%RH (Non condensing) -40 to +85℃, 20 to 95%RH (Non condensing) -40 to +85℃, 20 to 95%RH (Non condensing)
Cooling Method Convection/Forced air Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 17.0x12.0x8.5mm 17.0x12.0x8.5mm 17.0x12.0x8.5mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1 UL60950-1, C-UL, EN62368-1
Technical Data MGW1R50512 MGW1R50515 MGW1R51212 MGW1R51215 MGW1R52412 MGW1R52415 MGW1R54812 MGW1R54815
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
