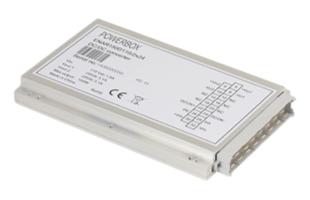

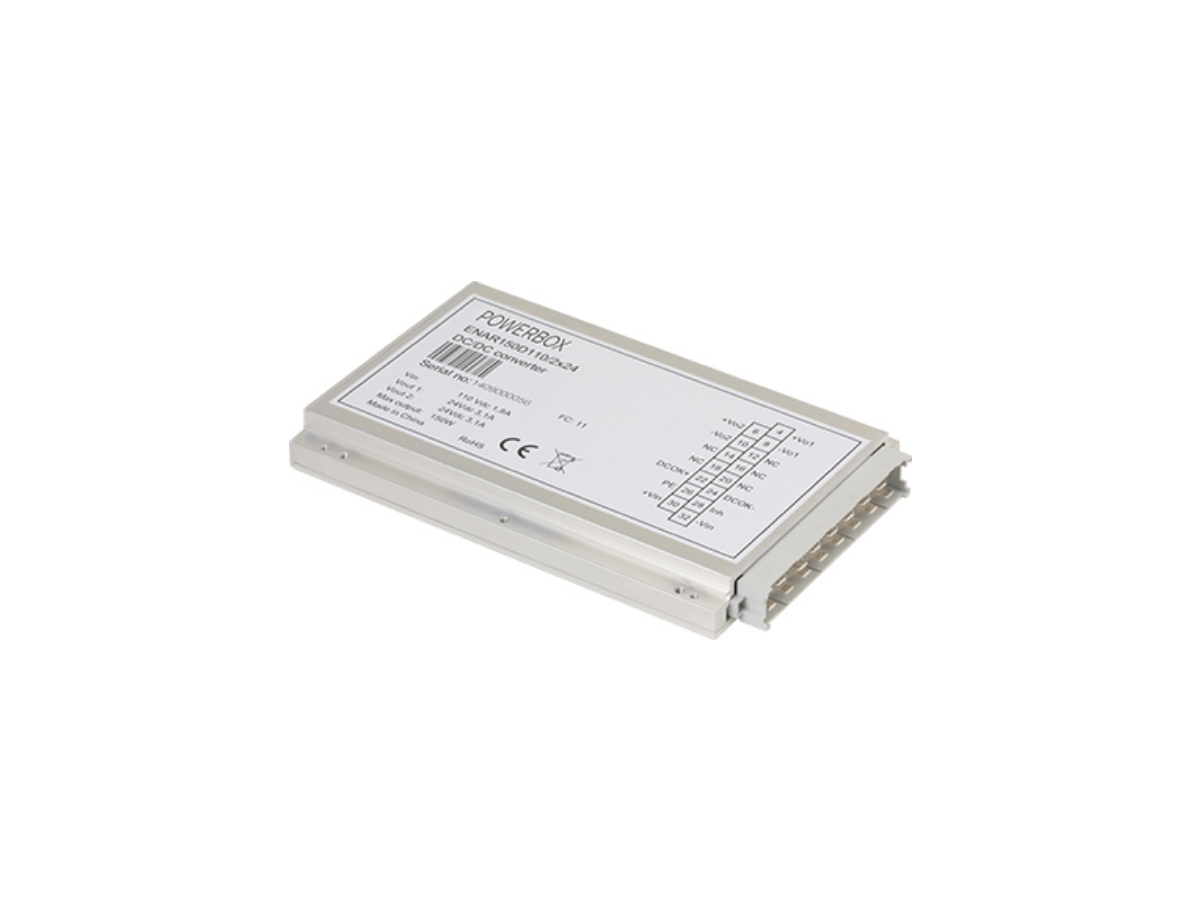

ENAR150-D

Key Product Features

Railway Certified & Compliant
Low Profile
Chassis or Wall Mountable
Wide Input Voltage Ranges
Full Plug & Play Solution
Up to 93% Efficiency

*ENAR20W/40W series will be discontinued on 31.08.2023

Technical Features

< 1U High
Remote On/Off

Options

(For detailed information, please refer to the instruction manual)

string(0) ""

Product Data

Datasheets
Instruction Manual
Glossary of Technical Terms

Drawings

Safety Certificates

Powerbox is recognized for technical innovations that reduce energy consumption and its ability to manage full product lifecycles while minimizing environmental impact. Powerbox is a Cosel Group Company.

Basic Specification	ENAR150D110/2x24	ENAR150D110/2x12	ENAR150D24/2x24	ENAR150D24/2x12	ENAR150D72/2x24,MOQrequired	ENAR150D72/2x12,MOQrequired	ENAR150D48/2x24,MOQrequired	ENAR150D48/2x12,MOQrequired
	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock	Check Stock
Input Voltage Range	DC77 - 137.5V		DC77 - 137.5V, DC16.8 - 30V		DC77 - 137.5V, DC16.8 - 30V, DC50.4 - 90V		DC77 - 137.5V, DC16.8 - 30V, DC50.4 - 90V, DC33.6 - 60V
Output Voltage / Current	V1: 24V 3.125A V2: 24V 3.125A	V1: 12V 6.25A V2: 12V 6.25A	V1: 24V 3.125A V2: 24V 3.125A	V1: 12V 6.25A V2: 12V 6.25A	V1: 24V 3.125A V2: 24V 3.125A	V1: 12V 6.25A V2: 12V 6.25A	V1: 24V 3.125A V2: 24V 3.125A	V1: 12V 6.25A V2: 12V 6.25A
Output Power	150W			150W			150W
Output Voltage Adj Range	Refer to datasheet			Refer to datasheet			Refer to datasheet
Operating Temp (°C)	-40 to 55℃			-40 to 55℃			-40 to 55℃
Cooling Method	Convection;Conduction/baseplate			Convection;Conduction/baseplate			Convection;Conduction/baseplate
Dimensions (W x H x D)	18.5x111x162mm			18.5x111x162mm			18.5x111x162mm
Safety Agency Approvals
Technical Data	ENAR150D110/2x24	ENAR150D110/2x12	ENAR150D24/2x24	ENAR150D24/2x12	ENAR150D72/2x24,MOQrequired	ENAR150D72/2x12,MOQrequired	ENAR150D48/2x24,MOQrequired	ENAR150D48/2x12,MOQrequired
Performance Data	On request	On request	On request	On request	On request	On request	On request	On request
EMC Data	On request	On request	On request	On request	On request	On request	On request	On request
Expected Life	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
MTBF	On request	On request	On request	On request	On request	On request	On request	On request
