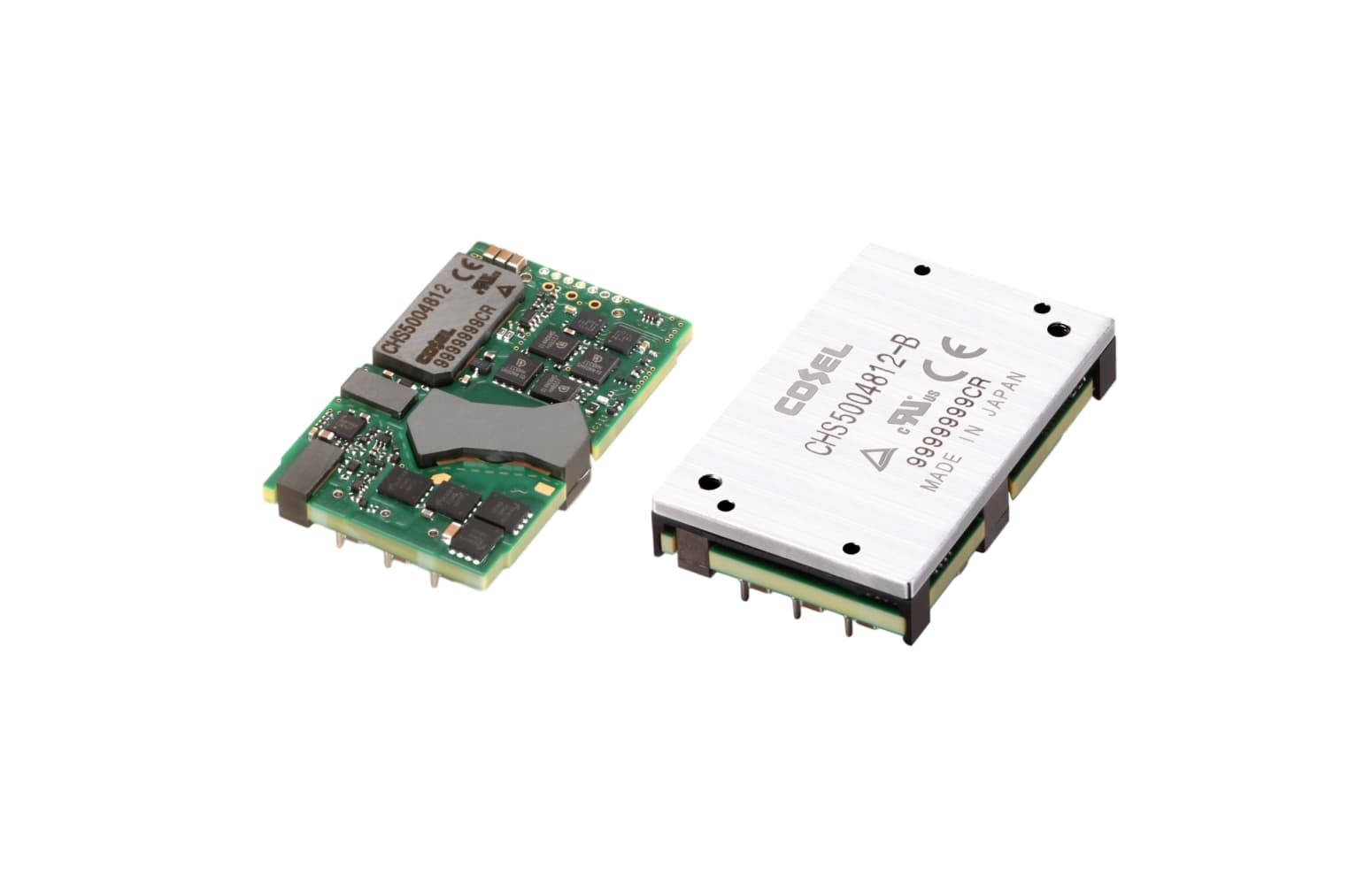

CHS500

Key Product Features

  • Ultra Compact DC-DC Converter
  • Industry Standard Brick Sizes
  • Up to 95% efficiency
  • Built in Remote On/Off
  • PMBus Interface (300W/400W/500W)
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • Remote On/Off
  • Parallel Function
  • < 1U High
  • Communication Function
  • PMBus

Options

(For detailed information, please refer to the instruction manual)

  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  P: Parallel operation (5 Pins without +S, -S and TRM)
  L2: Pin length 5.3mm
  L5: 5 pins type (+S, -S, TRM less)
string(708) "

CH(1)  S(2)  500(3)  48(4)  12(5)  -  (6)


(1) Series name
(2) Single output
(3) Output power
(4) Input voltage
  48: DC36 - 76V
(5) Output voltage
  12: 12V
(6) Optional
  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  P: Parallel operation (5 Pins without +S, -S and TRM)
  L2: Pin length 5.3mm
  L5: 5 pins type (+S, -S, TRM less)"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • PMBus Communication Manual
  • Application Software (PMBus)
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits
  • Thermal Considerations



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • B:Baseplate option
  • 3D CAD Data (IGES)
    • Standard model
    • B:Baseplate option

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

CH(1)  S(2)  500(3)  48(4)  12(5)  -  (6)


(1) Series name
(2) Single output
(3) Output power
(4) Input voltage
  48: DC36 - 76V
(5) Output voltage
  12: 12V
(6) Optional
  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  P: Parallel operation (5 Pins without +S, -S and TRM)
  L2: Pin length 5.3mm
  L5: 5 pins type (+S, -S, TRM less)
Basic Specification CHS5004812
  Check Stock
Input Voltage Range DC36 - 76V
Output Voltage / Current 12V 42A
Output Power 504.0W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air/Conduction
Dimensions (W x H x D) 58.4x9.5x36.8mm
58.9x12.7x37.3mm * (BasePlate Option)
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data CHS5004812
Performance Data
EMC Data
Expected Life N/A
MTBF
Reliability Data
