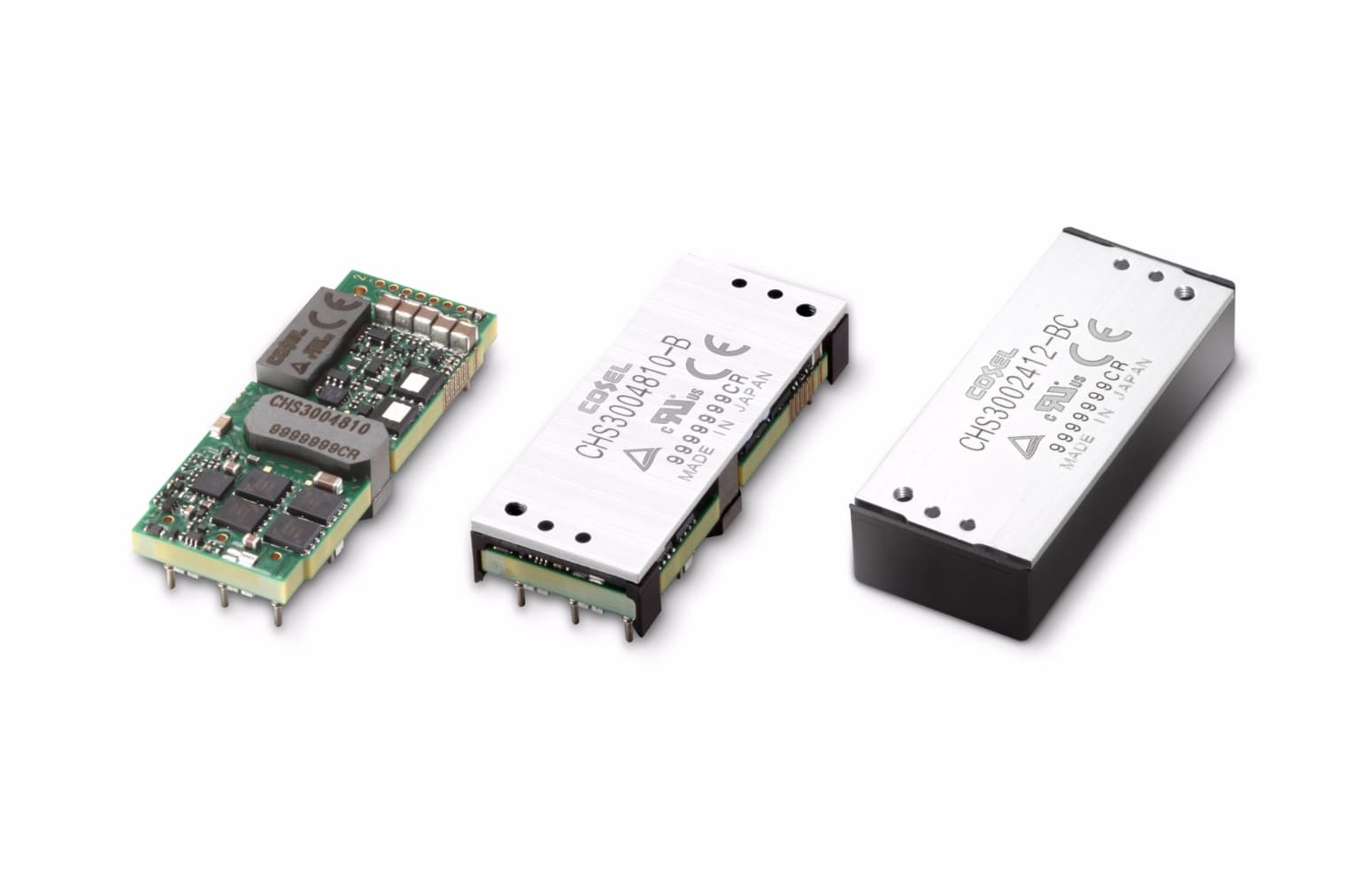

CHS300

CHS300

Key Product Features

  • Ultra Compact DC-DC Converter
  • Industry Standard Brick Sizes
  • Up to 95% efficiency
  • Built in Remote On/Off
  • PMBus Interface (300W/400W/500W)
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • Remote On/Off
  • Parallel Function
  • < 1U High
  • Communication Function
  • PMBus

Options

(For detailed information, please refer to the instruction manual)

  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  BC: Baseplate and case option with mounting hole M3 (only CHS30024)
  L2: Pin length 5.3mm
  L5: 5 pins option (+S, -S, TRM less)
  I: with the PMBus interface (only CHS3004810/4812)
string(1059) "
CH(1)  S(2)  300(3)  48(4)  10(5)  -  □(6)


(1) Series name
(2) Single output
(3) Output power
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
  05: 5V
  10: 10V
  12: 12V
  12H: 12V (High efficiency type)
  15: 15V
  24: 24V
  28: 28V
  32: 32V
  48: 48V
(6) Optional
  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  BC: Baseplate and case option with mounting hole M3 (only CHS30024)
  L2: Pin length 5.3mm
  L5: 5 pins option (+S, -S, TRM less)
  I: with the PMBus interface (only CHS3004810/4812)"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • PMBus Communication Manual
  • Application Software (PMBus)
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuits
  • Thermal Considerations



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • B:Baseplate option
    • BC:Baseplate and case option
  • 3D CAD Data (IGES)
    • Standard model
    • B:Baseplate option
    • BC:Baseplate and case option

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

CH(1)  S(2)  300(3)  48(4)  10(5)  -  □(6)


(1) Series name
(2) Single output
(3) Output power
(4) Input voltage
  24: DC18 - 36V
  48: DC36 - 76V
(5) Output voltage
  05: 5V
  10: 10V
  12: 12V
  12H: 12V (High efficiency type)
  15: 15V
  24: 24V
  28: 28V
  32: 32V
  48: 48V
(6) Optional
  R: with Remote ON/OFF Positive logic control
  U: Shut down in protection circuit working
  B: BasePlate option
  BC: Baseplate and case option with mounting hole M3 (only CHS30024)
  L2: Pin length 5.3mm
  L5: 5 pins option (+S, -S, TRM less)
  I: with the PMBus interface (only CHS3004810/4812)
Basic Specification CHS3002405 CHS3002412 CHS3002415 CHS3002424 CHS3002428 CHS3002432 CHS3002448 CHS3004810 CHS3004812 CHS3004812H CHS3004815 CHS3004824 CHS3004828 CHS3004832 CHS3004848
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range DC18 - 36V DC18 - 36V DC18 - 36V DC36 - 76V DC36 - 76V DC36 - 76V
Output Voltage / Current 5V 40A 12V 16.7A 15V 13.5A 24V 10.5A 28V 9.0A 32V 7.9A 48V 5.3A 10V 30A 12V 25A 15V 20A 24V 12.5A 28V 10.8A 32V 9.4A 48V 6.3A
Output Power 200.0W 200.4W 202.5W 252.0W 252.8W 254.4W 300.0W 300.0W 302.4W 300.8W 302.4W
Output Voltage Adj Range Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet Refer to datasheet
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) * -40 to +85℃, 20 - 95%RH (Non condensing) * -40 to +85℃, 20 - 95%RH (Non condensing) * -40 to +85℃, 20 - 95%RH (Non condensing) * -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air/Conduction Convection/Forced air/Conduction Convection/Forced air/Conduction Convection/Forced air/Conduction Convection/Forced air/Conduction
Dimensions (W x H x D) 58.4x11.0x22.86mm
58.9x12.7x23.3mm * (*BasePlate Option)
61.1X14.3X26.1 ** (**Baseplate and case option)
 58.4x11.0x22.86mm
58.9x12.7x23.3mm * (*BasePlate Option)
61.1X14.3X26.1 ** (**Baseplate and case option)
 58.4x11.0x22.86mm
58.9x12.7x23.3mm * (*BasePlate Option)
61.1X14.3X26.1 ** (**Baseplate and case option)
 58.4x11.0x22.86mm
58.9x12.7x23.3mm * (*BasePlate Option)
61.1X14.3X26.1 ** (**Baseplate and case option)
 58.4x11.0x22.86mm
58.9x12.7x23.3mm * (*BasePlate Option)
61.1X14.3X26.1 ** (**Baseplate and case option)
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data CHS3002405 CHS3002412 CHS3002415 CHS3002424 CHS3002428 CHS3002432 CHS3002448 CHS3004810 CHS3004812 CHS3004812H CHS3004815 CHS3004824 CHS3004828 CHS3004832 CHS3004848
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
MTBF
Reliability Data
