PRODUCTS AC-DC YAW SERIES YAW5
Enquire

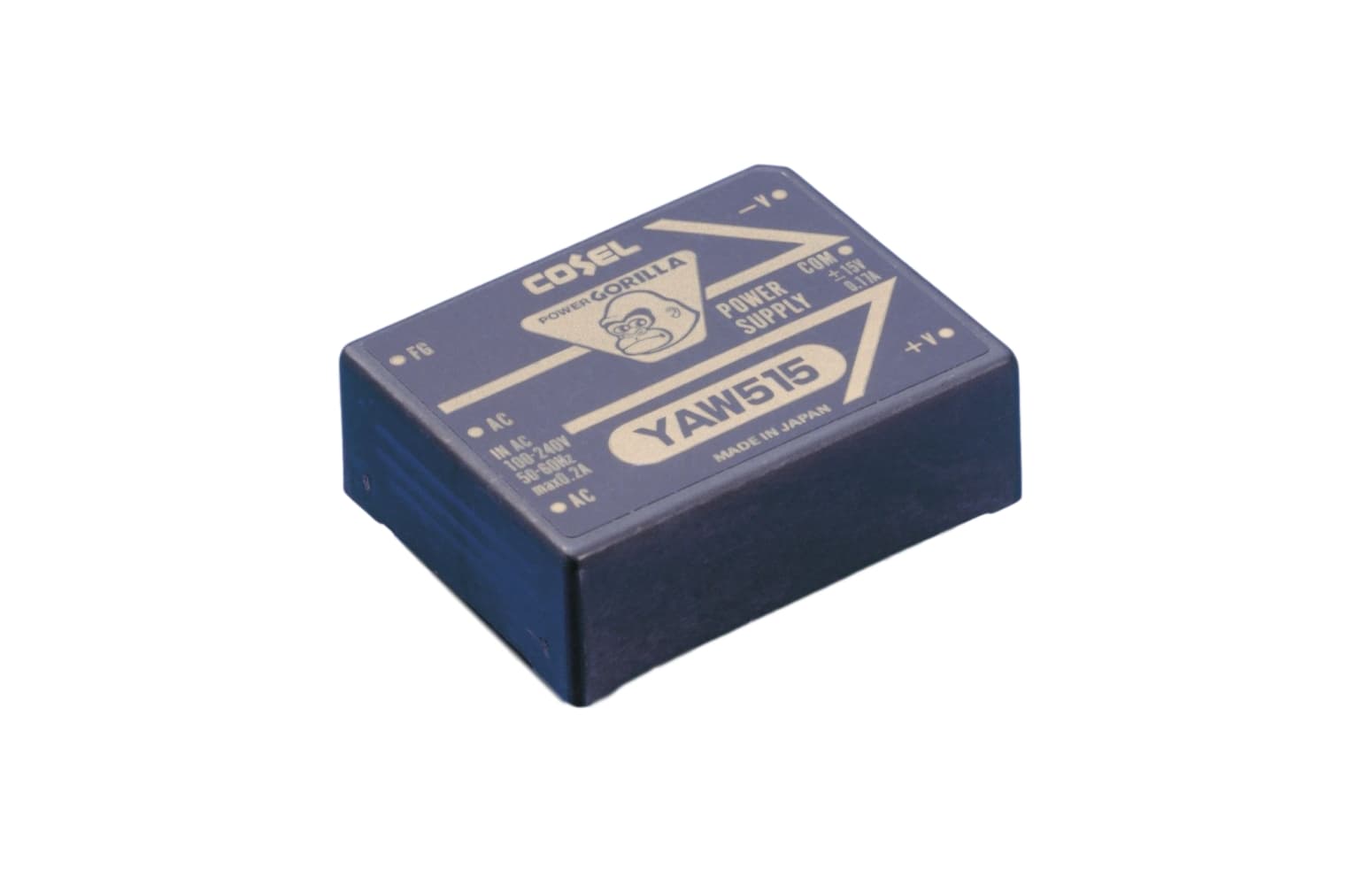

YAW5

YAW5

Discontinued

This series will be discontinued in May 2018. Please refer to the TUHS Series as our recommended replacement.

Options

(For detailed information, please refer to the instruction manual)

YA(1)  W(2)  5(3)  12(4)  □(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E
string(328) "
YA(1)  W(2)  5(3)  12(4)  □(5)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

YA(1)  W(2)  5(3)  12(4)  □(5)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Output voltage
(5) UL recognized, TÜV
   approved CSA certified: E
Basic Specification YAW512 YAW515
  Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current ±12V (+24V) 0.22A ±15V (+30V) 0.17A
Output Power 5.28W 5.10W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +70℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection
Dimensions (W x H x D) 45x19.5x58mm
Safety Agency Approvals UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with IEC60950-1
Technical Data YAW512 YAW515
Performance Data
EMC Data
Expected Life N/A N/A
MTBF
Reliability Data


⌅
