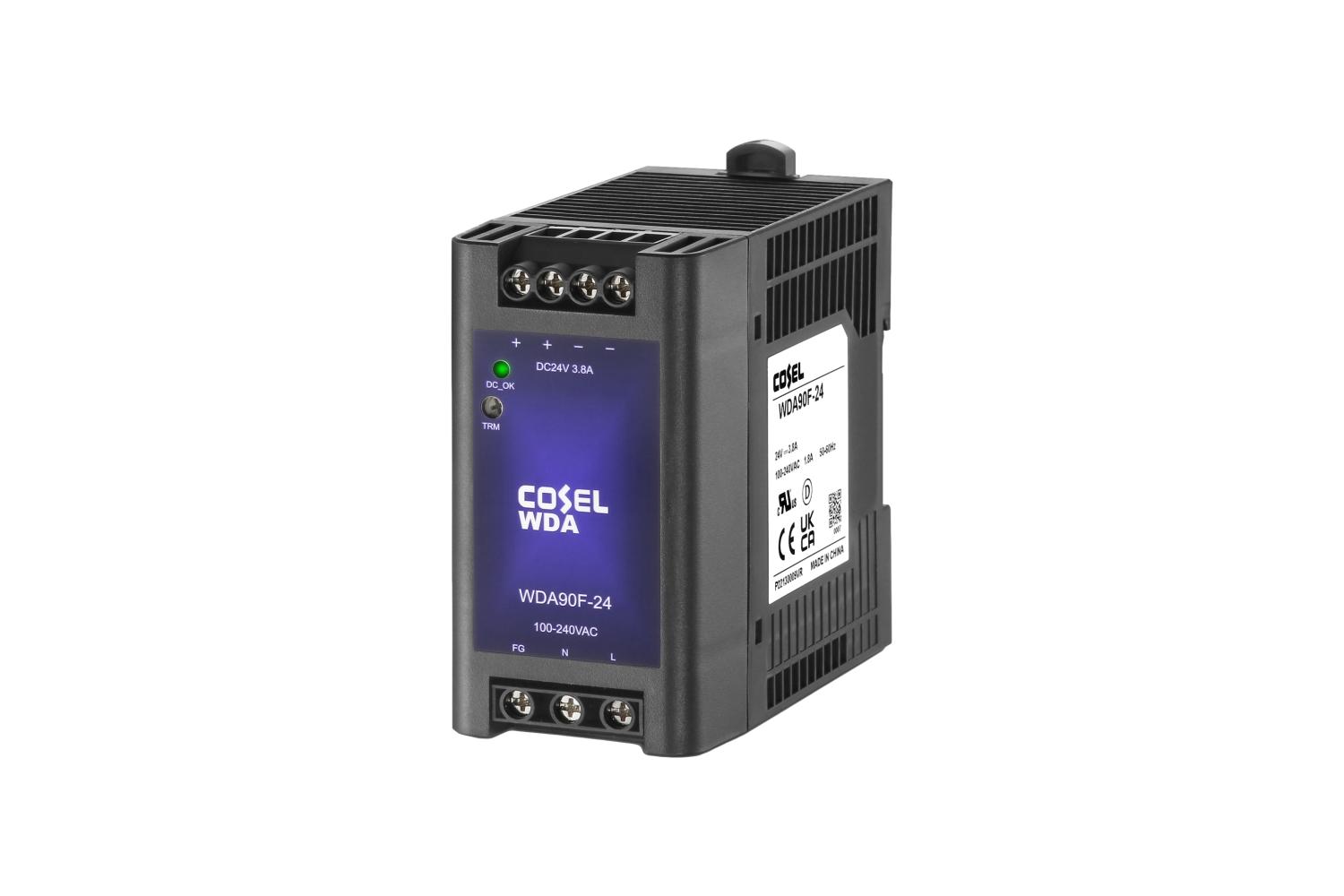

WDA90F
Key Product Features
• For DIN（35mm）rail products
• Wide temperature range (-20℃ to +70℃, Derating is required)
• Built in overcurrent protection, overvoltage protection circuits
• Low power consumption at no load
• Universal input (AC85 - 264V, Derating is required)
Options
WD(1) A(2) 30(3) F(4) - □□(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C: with Coating
| Basic Specification | WDA90F-12 | WDA90F-24 | WDA90F-48 |
|---|---|---|---|
| Check Stock | Check Stock | Check Stock | |
| Input Voltage Range | AC85 - 264V 1Φ | ||
| Output Voltage / Current | 12V 7.5A | 24V 3.8A | 24V 1.9A |
| Output Power | 90W | 91.2W | |
| Output Voltage Adj Range | 10.80 - 13.20V | 21.60 - 26.4V | 43.20 - 52.80V |
| Operating Temp (°C) | -20 to +70℃ (Required to Derating) , 20 - 90%RH (Non condensing) | ||
| Cooling Method | Convection | ||
| Dimensions (W x H x D) | 50x90x90mm | ||
| Safety Agency Approvals | UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1) , EN62368-1 | ||
| Technical Data | WDA90F-12 | WDA90F-24 | WDA90F-48 |
| Performance Data | |||
| EMC Data | |||
| Expected Life | |||
| MTBF | |||
| Reliability Data | |||
