PRODUCTS AC-DC VAF SERIES VAF10
Enquire

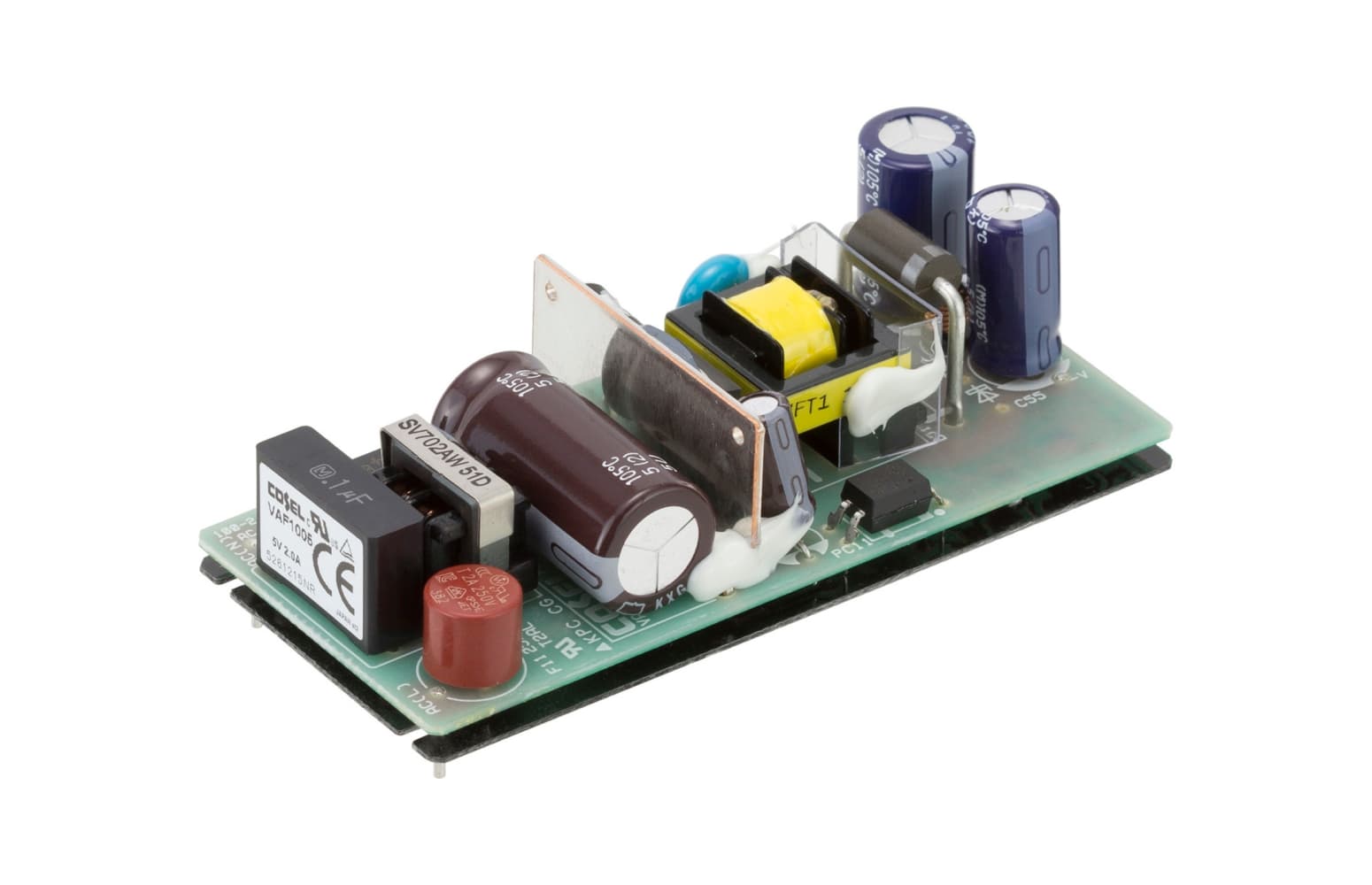

VAF10

VAF10

Discontinued

For alternative products, please see the TUHS

Options

(For detailed information, please refer to the instruction manual)

VAF(1)  10(2)  05(3)

(1) Series name
(2) Output wattage
(3) Output voltage
string(166) "
VAF(1)  10(2)  05(3)
(1) Series name
(2) Output wattage
(3) Output voltage"

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

VAF(1)  10(2)  05(3)

(1) Series name
(2) Output wattage
(3) Output voltage
Basic Specification VAF1003 VAF1005 VAF1012 VAF1015 VAF1024
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V AC85 - 264V 1Φ or DC110 - 370V
Output Voltage / Current 3.3V 2.0A (Peak: 2.4A) 5V 2.0A (Peak: 2.4A) 12V 0.9A (Peak: 1.08A) 15V 0.7A (Peak: 0.84A) 24V 0.45A (Peak: 0.54A)
Output Power 6.6W 10.0W 10.8W 10.5W 10.8W
Output Voltage Adj Range Refer to datasheet Refer to datasheet
Operating Temp (°C) -10 to +71℃, 20 - 90%RH (Non condensing) * -10 to +71℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection Convection
Dimensions (W x H x D) 36x21x78mm 36x21x78mm
Safety Agency Approvals UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1 UL60950-1, C-UL, EN62368-1 Complies with DEN-AN and IEC60950-1
Technical Data VAF1003 VAF1005 VAF1012 VAF1015 VAF1024
Performance Data On request
EMC Data On request
Expected Life N/A
MTBF On request
Reliability Data
