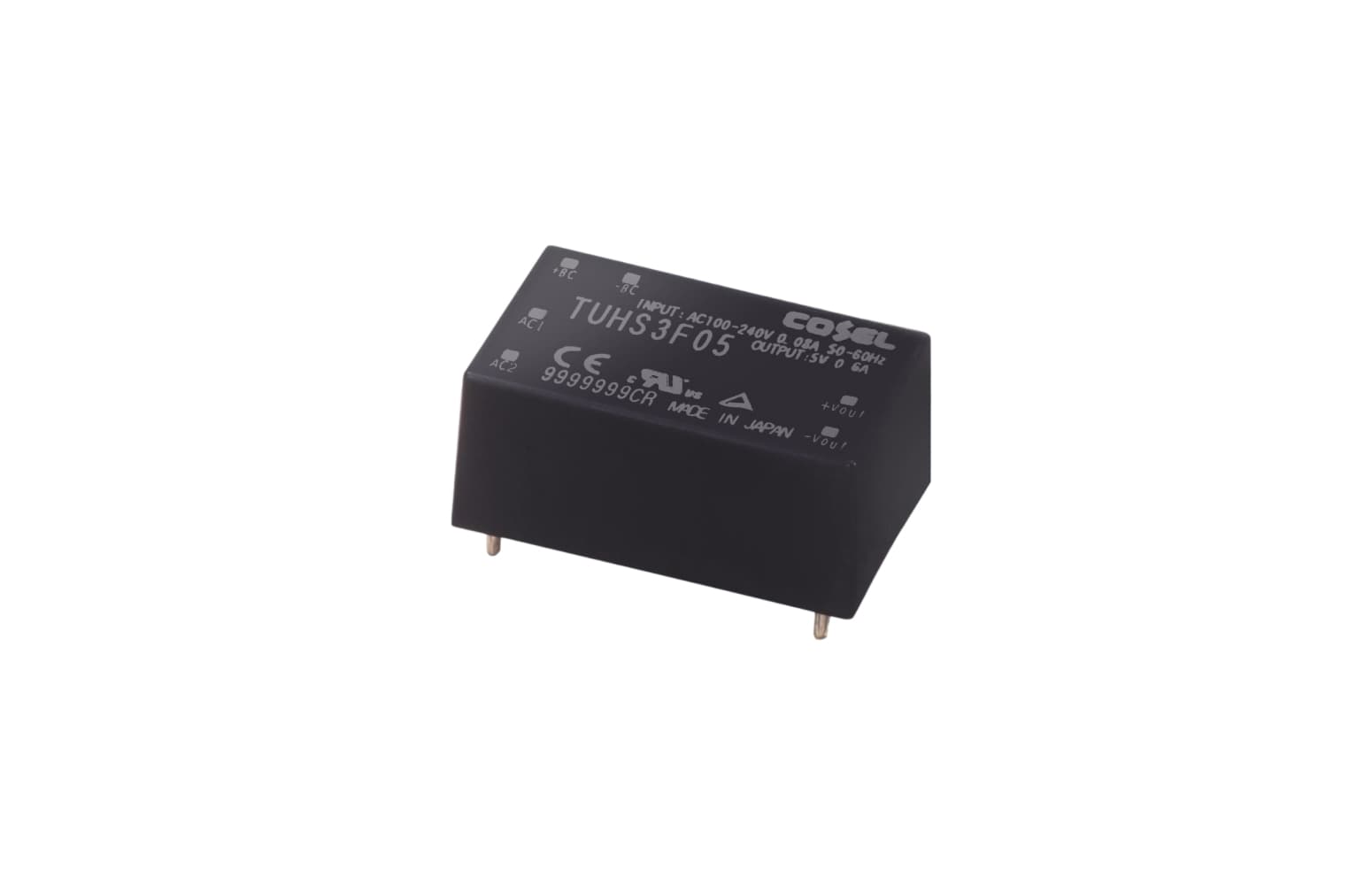

TUHS3F

Key Product Features

  • Ultra Compact AC-DC Power Supply
  • Expected Life up to 30 years
  • -40 to +85 °C operating temperature
  • Flexible Design - Control Hold Up Time
  • 5 Year Warranty
  • EN & UL Approved

Technical Features

  • < 1U High

Options

(For detailed information, please refer to the instruction manual)

TUH(1)  S(2)  3(3)  F(4)  05(5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
string(336) "

TUH(1)  S(2)  3(3)  F(4)  05(5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional"

Product Data

  • Datasheet
  • Instruction Manual
  • Applications Manual
  • PCB Reference Design Data
  • Glossary of Technical Terms

Additional Technical Documents

  • Application Manual & Circuit



Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

TUH(1)  S(2)  3(3)  F(4)  05(5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
Basic Specification TUHS3F05 TUHS3F12 TUHS3F15 TUHS3F24
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC 120 - 370V AC85 - 264V 1Φ or DC 120 - 370V AC85 - 264V 1Φ or DC 120 - 370V
Output Voltage / Current 5.0V 0.6A 12.0V 0.25A 15.0V 0.2A 24.0V 0.13A
Output Power 3.00W 3.12W
Output Voltage Adj Range
Operating Temp (°C) -40 to +85℃, 20 - 95%RH (Non condensing) * -40 to +85℃, 20 - 95%RH (Non condensing) *
Cooling Method Convection/Forced air Convection/Forced air
Dimensions (W x H x D) 28.7x12.7x17.5mm 28.7x12.7x17.5mm
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1) , EN62368-1 UL60950-1, C-UL (CSA60950-1) , EN62368-1
Technical Data TUHS3F05 TUHS3F12 TUHS3F15 TUHS3F24
Performance Data
EMC Data
Expected Life N/A N/A N/A N/A
MTBF
Reliability Data
