PRODUCTS AC-DC TEPS SERIES TEPS20F
Enquire

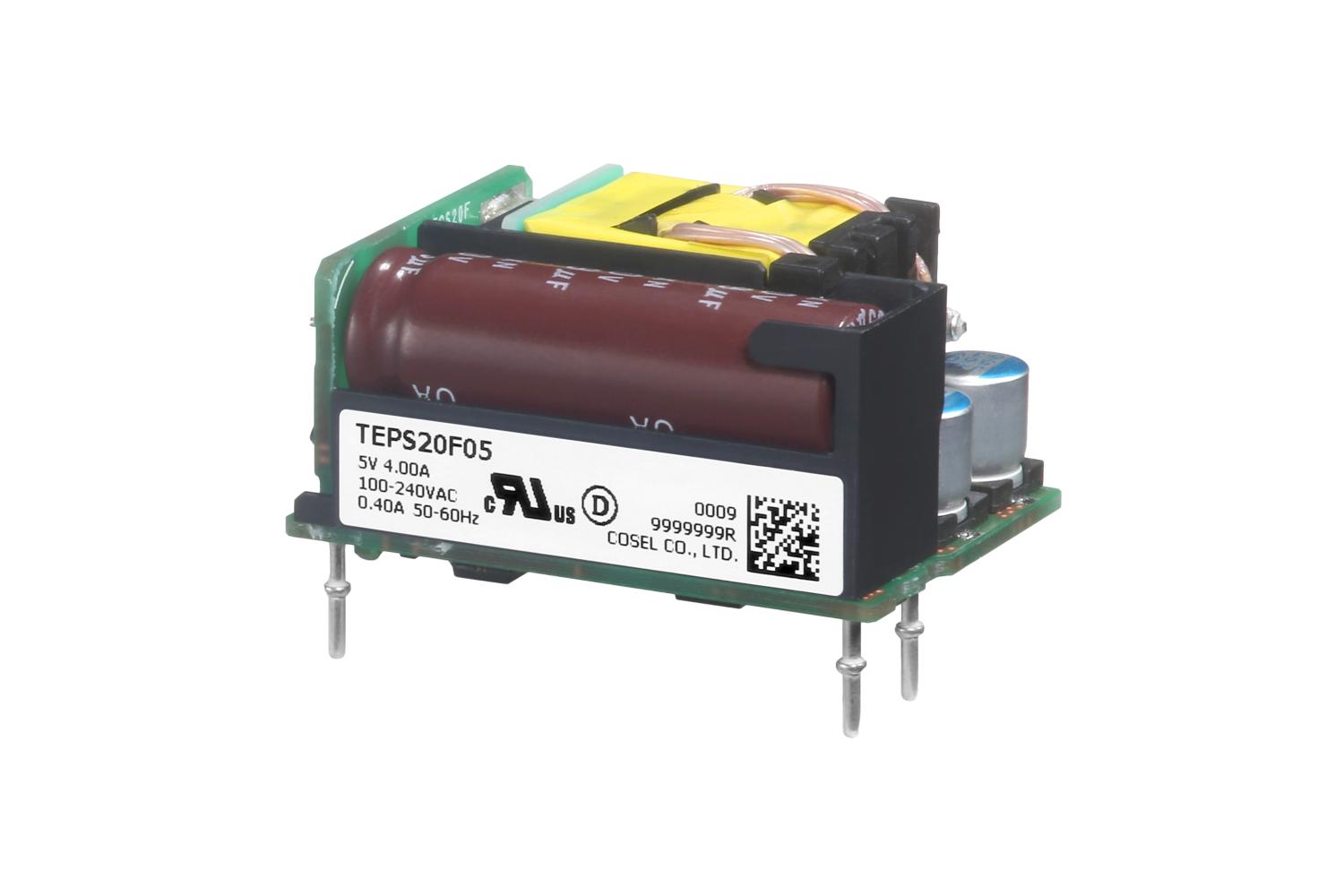

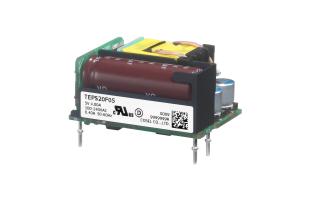

TEPS20F

TEPS20F

Key Product Features

• Wide Band Gap Gallium Nitride (GaN) power stage and planar magnetics
• 1x1.5 inch (TEP10F, 20F), 1x2.3 (TEP45F, 65F) inch high power density design
• 10W - 20W, 45W - 65W interoperable footprint
• High efficiency up to 93.5%
• 140% peak output current on 12V and 24V models (45W, 65W)
• PCB mount and dust protective case
• Class Ⅱ: No FG connection is necessary
• 140% peak power available by -H option at 12V and 24V models

Technical Features

  • Leakage Current <0.5mA

Options

(For detailed information, please refer to the instruction manual)

E2: Low leakage current
Specification is changed at option, refer to Instruction manual.
string(458) "
TEP(1)  S(2)  20(3)  F(4)  □□(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Low leakage current
Specification is changed at option, refer to Instruction manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

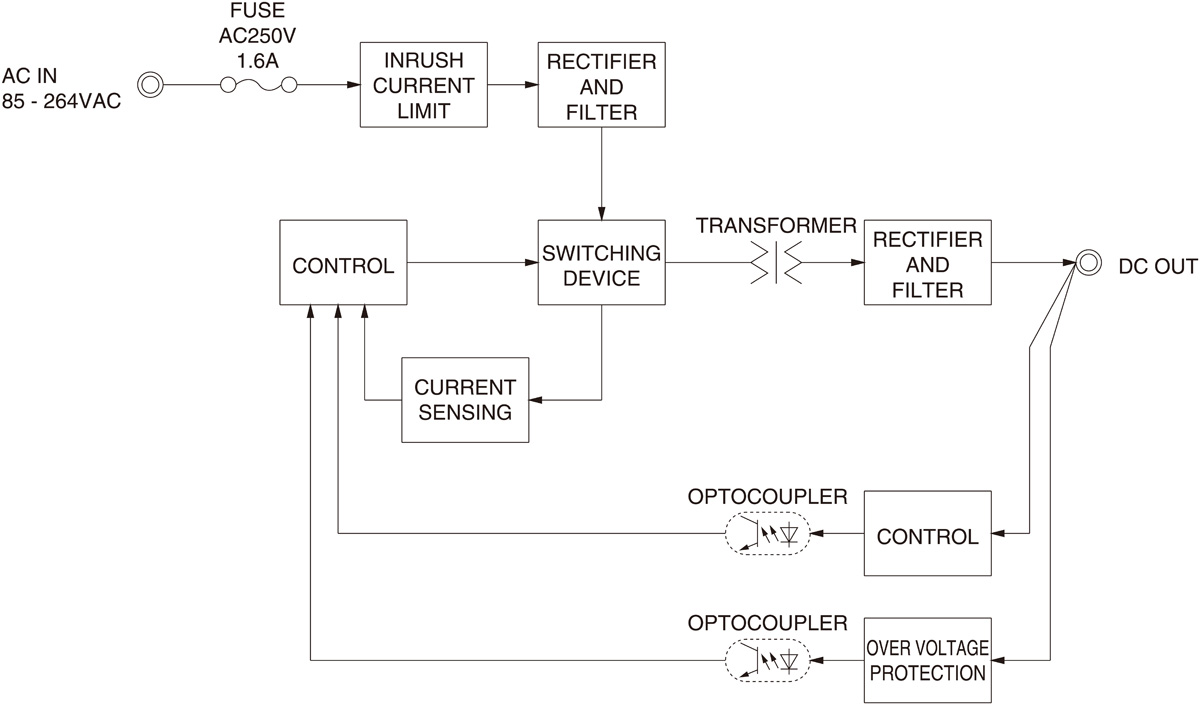

  • Block diagram

Safety Certificates

  • Safety Approvals

TEP(1)  S(2)  20(3)  F(4)  □□(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Low leakage current
Specification is changed at option, refer to Instruction manual.
Basic Specification TEPS20F05 TEPS20F12 TEPS20F15 TEPS20F24
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range 85 - 264VAC 1Φ 85 - 264VAC 1Φ
Output Voltage / Current 5V 4.0A 12V 1.7A 15V 1.35A 24V 0.85A
Output Power 20.0W 20.4W 20.25W 20.4W
Output Voltage Adj Range
Operating Temp (°C) -20 to +85℃, 20 - 90%RH (Non condensing) * -20 to +85℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 25.4x21.6x38.1mm 25.4x21.6x38.1mm
Safety Agency Approvals UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1) ,
EN62368-1, Complies with DEN-AN		 UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1) ,
EN62368-1, Complies with DEN-AN
Technical Data TEPS20F05 TEPS20F12 TEPS20F15 TEPS20F24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
