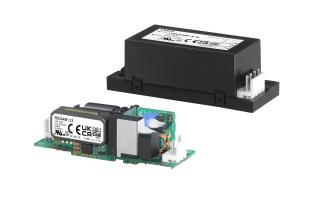

TECS45F

Key Product Features

• Wide Band Gap Gallium Nitride (GaN) power stage and planar magnetics
• 45W and 65W interoperable footprint
• High efficiency up to 93.5%
• Connector interface and dust protective case
• Class Ⅱ: No FG connection is necessary
• 140% peak power available by -H option at 12V and 24V models

Options

(For detailed information, please refer to the instruction manual)

E2: Capacitor between Input and Output is changed
H: with the function to be acceptable to output peak current(12V,24V)
N: with cover
string(525) "

TEC(1)  S(2)  45(3)  F(4)  -  (5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Capacitor between Input and Output is changed
H: with the function to be acceptable to output peak current(12V,24V)
N: with cover"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
    • N: with Cover
  • 3D CAD Data (IGES)
    • Standard model
    • N: with Cover
  • Block diagram

Safety Certificates

  • Safety Approvals

TEC(1)  S(2)  45(3)  F(4)  -  (5)  -  (6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
E2: Capacitor between Input and Output is changed
H: with the function to be acceptable to output peak current(12V,24V)
N: with cover
Basic Specification TECS45F-5 TECS45F-12 TECS45F-12-H TECS45F-24 TECS45F-24-H
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range 85 - 264VAC 1Φ 85 - 264VAC 1Φ
Output Voltage / Current 5V 8.0A 12V 3.8A 12V 3.8A(peak:5.45A) 24V 1.9A 24V 1.9A(peak:2.75A)
Output Power 40.0W 45.6W 45.6W(65.4W) 45.6W 45.6W(66.0W)
Output Voltage Adj Range
Operating Temp (°C) -10 to +70℃, 20 - 90%RH (Non condensing) * -10 to +70℃, 20 - 90%RH (Non condensing) *
Cooling Method Convection/Forced air * Convection/Forced air *
Dimensions (W x H x D) 25.4×23.5×76.2㎜ 25.4×23.5×76.2㎜
Safety Agency Approvals UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1),
EN62368-1
UL62368-1, C-UL (equivalent to CAN/CSA-C22.2No.62368-1),
EN62368-1
Technical Data TECS45F-5 TECS45F-12 TECS45F-12-H TECS45F-24 TECS45F-24-H
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
