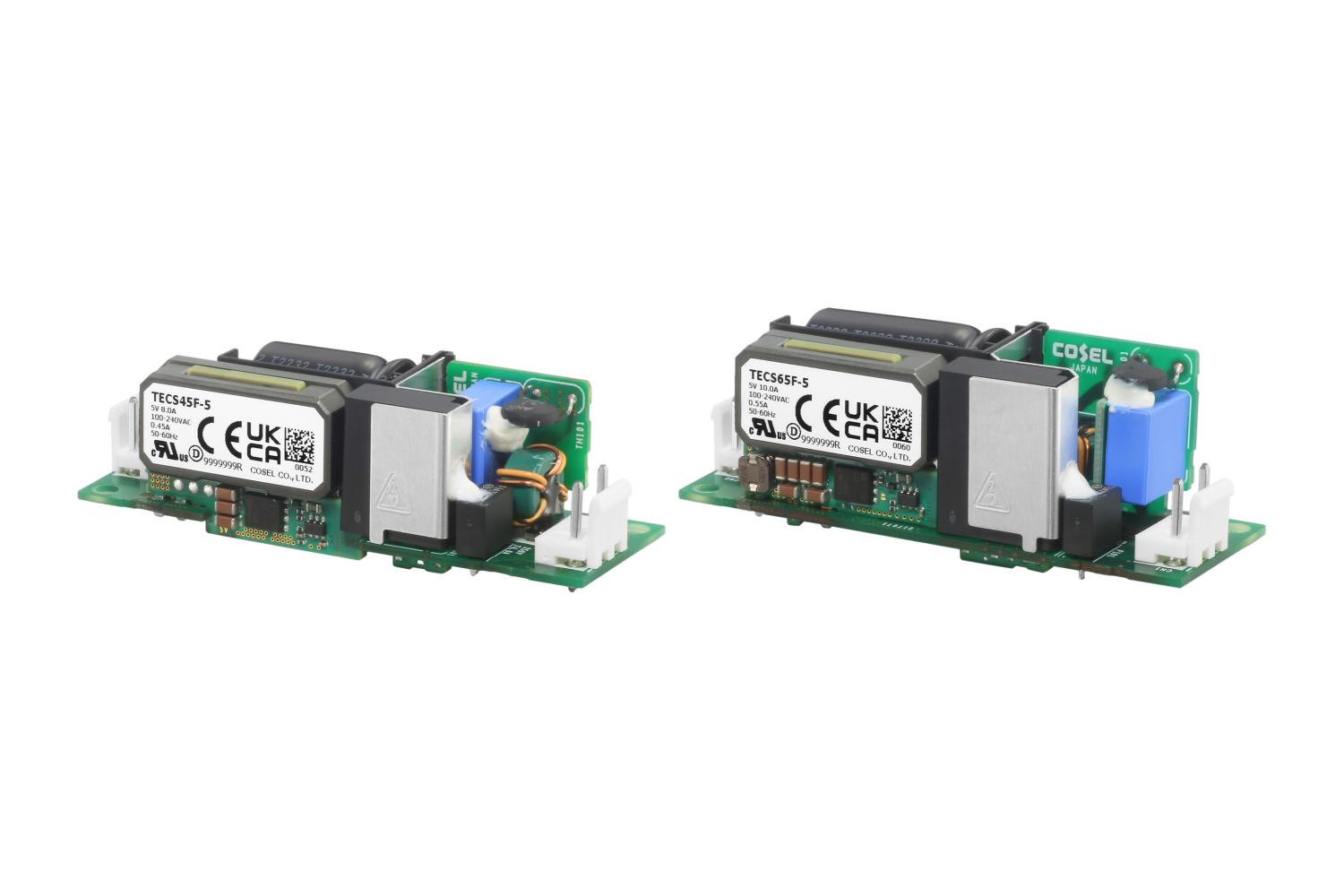

TECS Series
NEW
NRND
to be discontinued
NEW MODELS
Key Product Features
• Wide Band Gap Gallium Nitride (GaN) power stage and planar magnetics
• 10W - 20W, 45W - 65W interoperable footprint
• High efficiency up to 93.5%
• Connector interface and dust protective case
• Class Ⅱ: No FG connection is necessary
• 140% peak power available by -H option at 12V and 24V models(45W, 65W)
Industries
- Communication
- Industrial
- Infrastructure

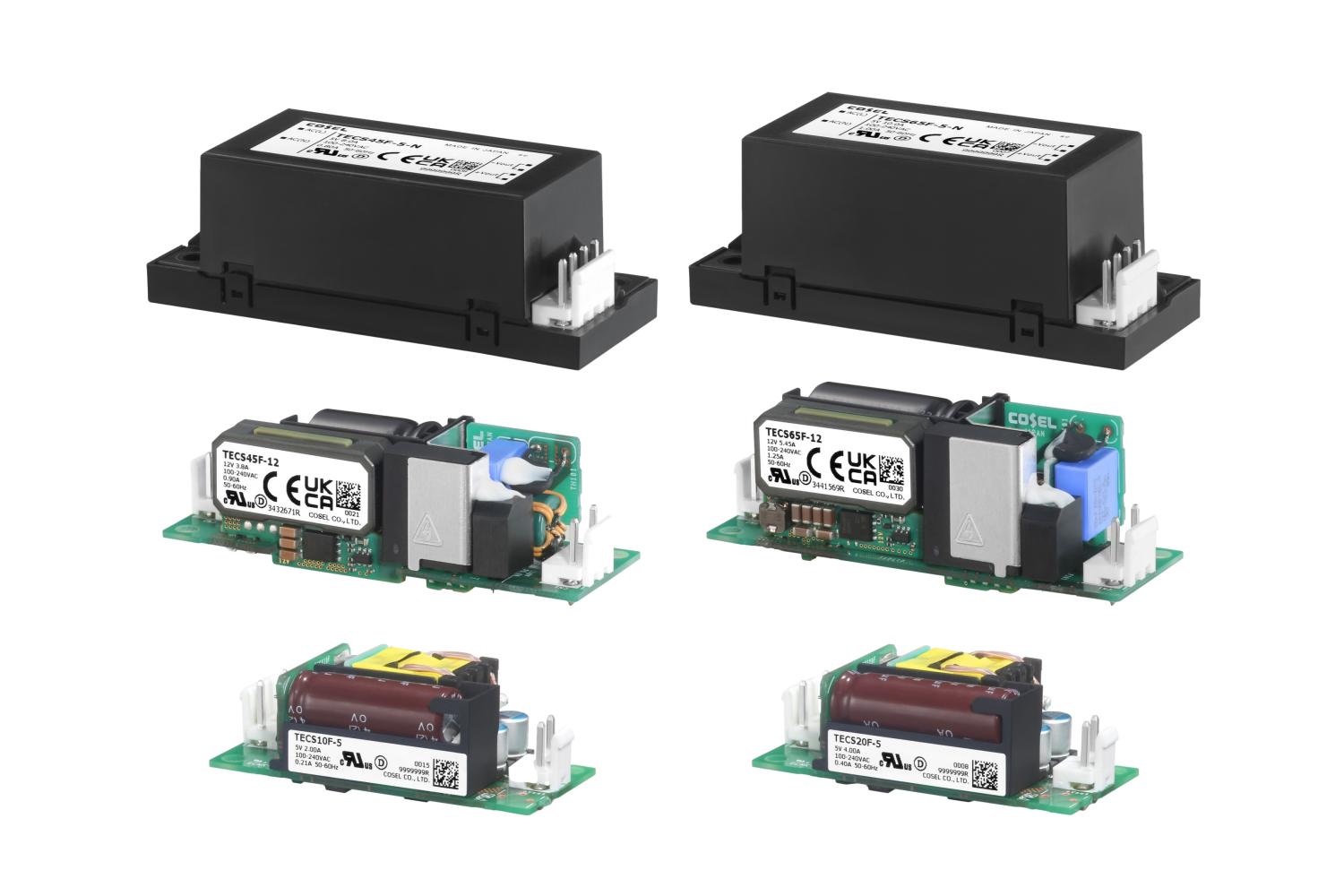

| TECS Models | Datasheet | Input Voltage | Output Type | Output Voltages | Output Power | Cooling Method | ||
|---|---|---|---|---|---|---|---|---|
| Convection | Conduction | Forced Air | ||||||
| TECS10F | 85 - 264VAC | Single | 5V, 12V, 15V, 24V | 10W | ||||
| TECS20F | 85 - 264VAC | Single | 5V, 12V, 15V, 24V | 20W | ||||
| TECS45F | 85 - 264VAC | Single | 5V, 12V, 24V | 45W | ||||
| TECS65F | 85 - 264VAC | Single | 5V, 12V, 24V | 65W | ||||
