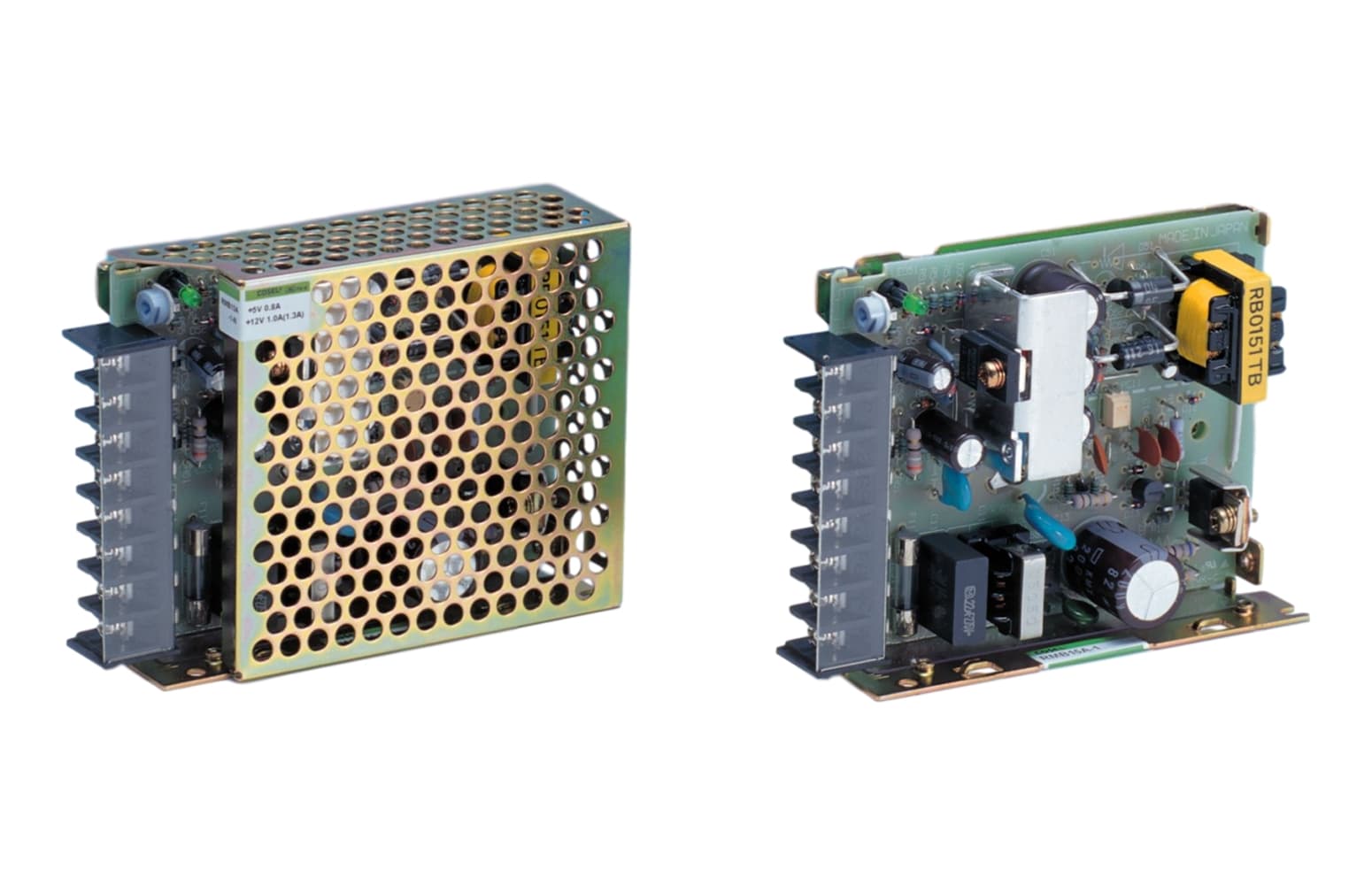

RMB15A
Discontinued
This series will be discontinued in Sep 2017. Please refer to the LEB Series as a suitable replacement.
Options
Drawings
Safety Certificates
RMB(1) 15A(2) - 1(3) - □(4)
(1) Series name(2) Output wattage
(3) Output voltage combination
(4) Optional
J: Connector type
N: with Cover
| Basic Specification | RMB15A-1 | RMB15A-2 |
|---|---|---|
| Check Stock | Check Stock | |
| Input Voltage Range | AC85 - 132V 1Φ or DC110 - 170V | |
| Output Voltage / Current | V1: +5V 0.8A V2: +12V 1.0A (Peak: 1.3A) |
V1: +5V 0.8A V2: +24V 0.5A (Peak: 0.65A) |
| Output Power | 16W (Peak: 19.6W) | |
| Output Voltage Adj Range | Refer to datasheet | |
| Operating Temp (°C) | -10 to +60℃, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE) | |
| Cooling Method | Convection | |
| Dimensions (W x H x D) | 28x80x100mm | |
| Safety Agency Approvals | UL60950-1, C-UL Complies with DEN-AN | |
| Technical Data | RMB15A-1 | RMB15A-2 |
| Performance Data | ||
| EMC Data | On request | On request |
| Expected Life | ||
| MTBF | ||
| Reliability Data | ||
