PRODUCTS AC-DC PMC SERIES PMC50
Enquire

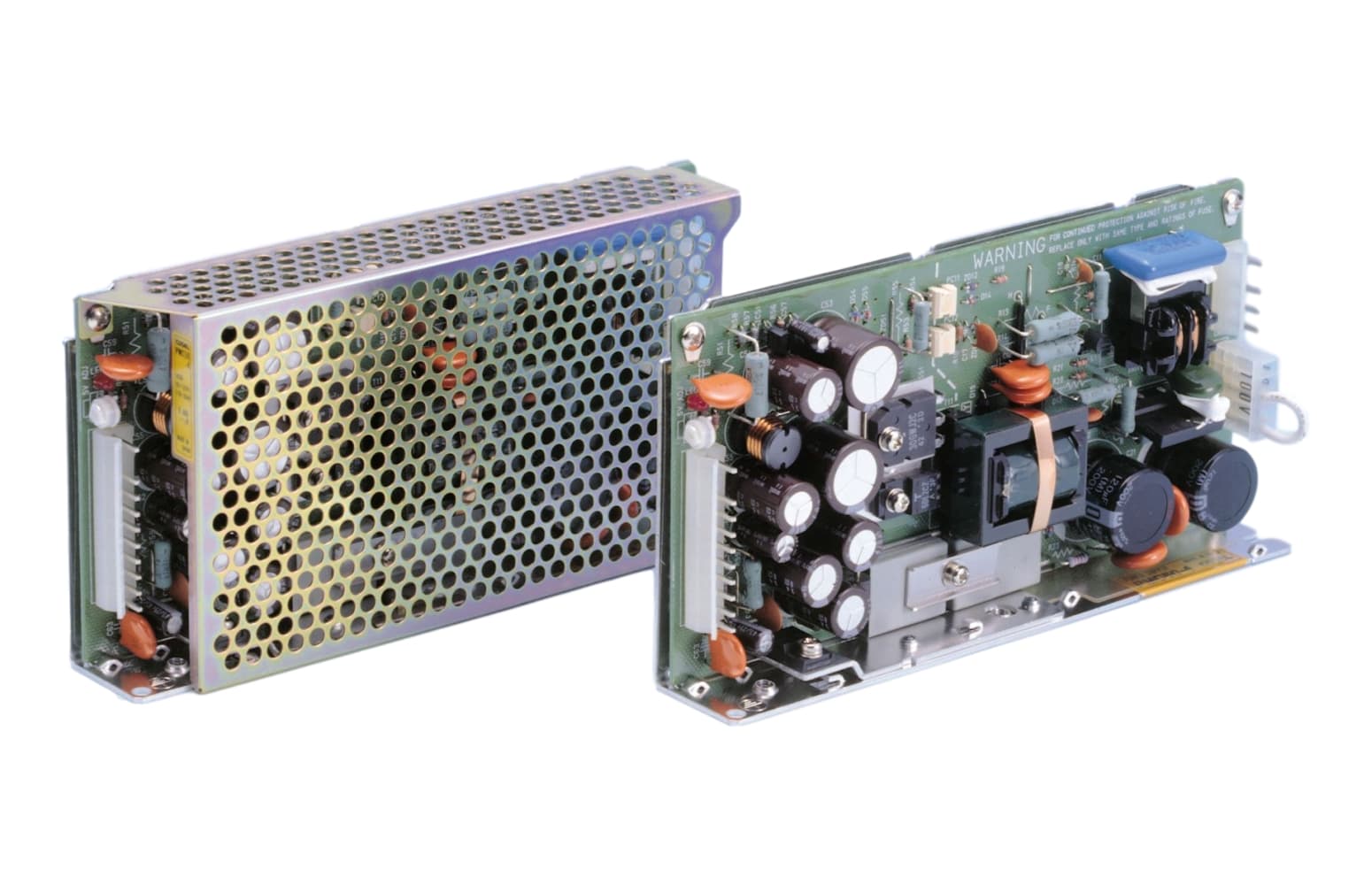

PMC50

PMC50

Discontinued

This series will be discontinued in Dec 2017. Please refer to the LDC Series as a suitable replacement.

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  N: with Cover
string(417) "
PMC(1)  50(2)  E(3)  -  1(4)  -XULA  -□(5)

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
  C: with Coating
  N: with Cover"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

Safety Certificates

  • Safety Approvals

PMC(1)  50(2)  E(3)  -  1(4)  -XULA  -□(5)


(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
  C: with Coating
  N: with Cover
Basic Specification PMC50E-1-XULA PMC50E-2-XULA PMC50E-4-XULA
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V
Output Voltage / Current V1: +5V 5.0A
V2: +12V 1.25A (Peak: 2.0A)
V3: -12V 0.35A		 V1 :+5V 5.0A
V2 :+15V 1.0A
V3 :-15V 0.35A		 V1: +5V 7.0A
V2: +12V 0.7A (Peak: 1.5A)
V3: -12V 0.2A
Output Power 49W (Peak: 55W) 50.5W 50.6W (Peak: 56.6W)
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C) -10 to +65℃, 20 - 95%RH (Non condensing) (Refer to DERATING CURVE)
Cooling Method Convection
Dimensions (W x H x D) 30x93x185mm
Safety Agency Approvals UL60950-1, CSA C22.2 No.60950-1, EN60950-1, EN50178 Complies with IEC60950-1 and DEN-AN
Technical Data PMC50E-1-XULA PMC50E-2-XULA PMC50E-4-XULA
Performance Data
EMC Data On request On request On request
Expected Life
MTBF On request On request
Reliability Data


⌅
