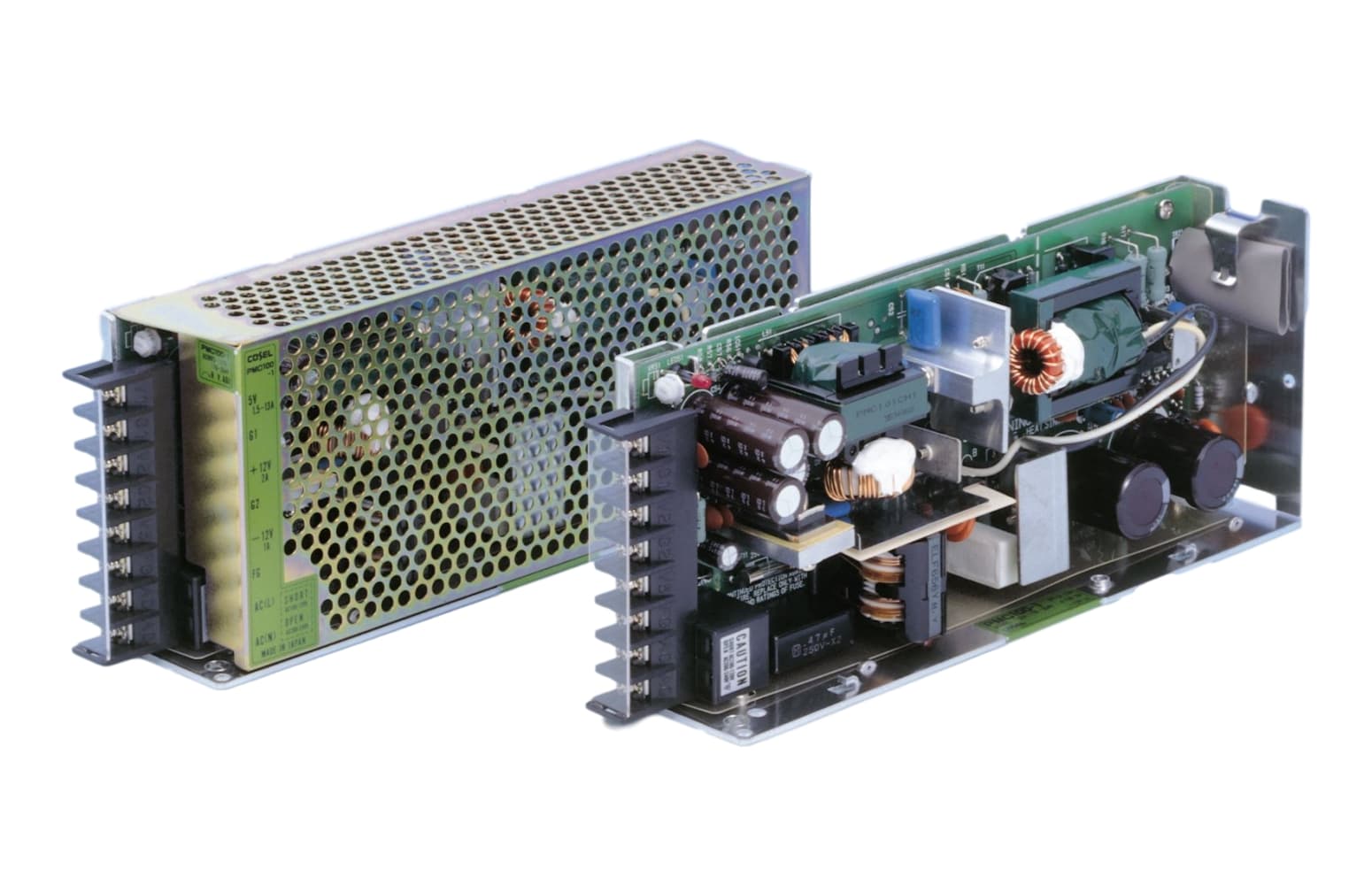

PMC100

Discontinued

This series will be discontinued in Dec 2017. Please refer to the LDC Series as a suitable replacement.

Options

(For detailed information, please refer to the instruction manual)

  G: Low leakage current
  J: Connector type
  N: with Cover

string(460) "PMC⁽¹⁾  100⁽²⁾  □⁽³⁾  -  1⁽⁴⁾  -  □⁽⁵⁾
(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
  G: Low leakage current
  J: Connector type
  N: with Cover"

Product Data

Datasheet
Instruction Manual
Accessories
Glossary of Technical Terms

Drawings

Safety Certificates

Safety Approvals

PMC⁽¹⁾ 100⁽²⁾ □⁽³⁾ - 1⁽⁴⁾ - □⁽⁵⁾

(1) Series name
(2) Output wattage
(3) UL recognized, TÜV approved, CSA certified: E
(4) Output voltage combination
(5) Optional
  G: Low leakage current
  J: Connector type
  N: with Cover

Basic Specification	PMC100E-1	PMC100E-2	PMC100E-4
	Check Stock	Check Stock	Check Stock
Input Voltage Range	AC85 - 132V/170 - 264V 1Φ (User selectable) or DC220 - 370V
Output Voltage / Current	V1 :+5V 13.0A V2 :+12V 2.0A V3 :-12V 1.0A	V1 :+5V 13.0A V2 :+15V 1.5A V3 :-15V 1.0A	V1 :+5V 8.0A V2 :+12V 4.0A V3 :-12V 1.0A
Output Power	101W	102.5W	100W
Output Voltage Adj Range	Refer to datasheet
Operating Temp (°C)	-10 to +65℃, 20 - 95%RH (Non condensing) (Refer to DERATING CURVE)
Cooling Method	Convection
Dimensions (W x H x D)	48x93x220mm (without terminal block and screw)
Safety Agency Approvals	UL60950-1, CSA1402C, EN60950-1, EN50178 Complies with IEC60950-1 and DEN-AN
Technical Data	PMC100E-1	PMC100E-2	PMC100E-4
Performance Data
EMC Data	On request	On request	On request
Expected Life
MTBF		On request	On request
Reliability Data
