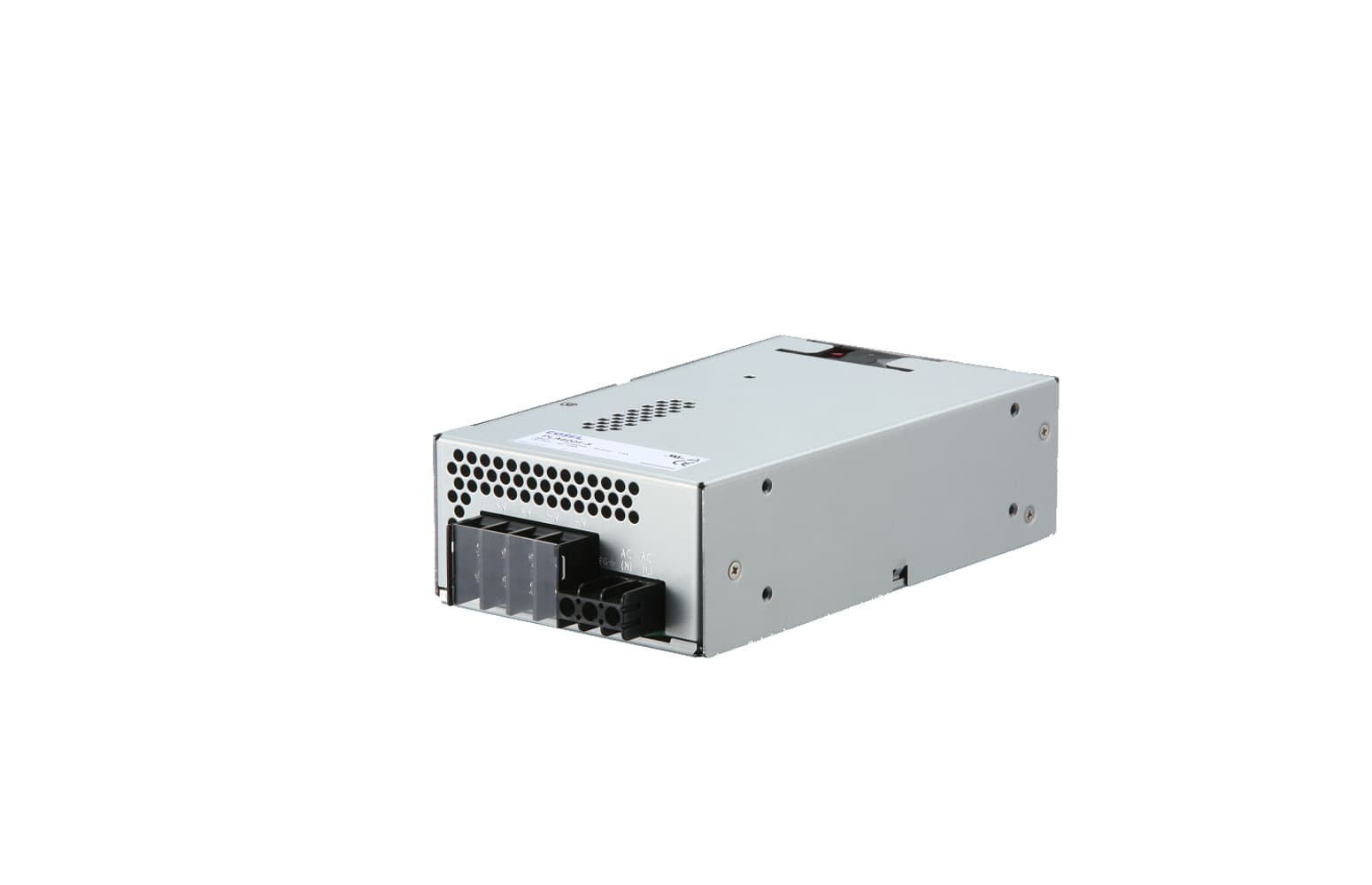

PLA600F

PLA600F

To Be Discontinued

Options

(For detailed information, please refer to the instruction manual)

   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   U: Low input voltage stop (Complies with SEMI F-47)
   W: Parallel operation, LV alarm Remote sensing
   R: with Remote ON/OFF (Required external power source)
   F4: Low speed fan
   T2: Horizontal terminal block (non-screw-hold type)

See 5.1 in Instruction Manual.
string(905) "
PL(1)  A(2)  600(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   U: Low input voltage stop (Complies with SEMI F-47)
   W: Parallel operation, LV alarm Remote sensing
   R: with Remote ON/OFF (Required external power source)
   F4: Low speed fan
   T2: Horizontal terminal block (non-screw-hold type)

See 5.1 in Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PL(1)  A(2)  600(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   U: Low input voltage stop (Complies with SEMI F-47)
   W: Parallel operation, LV alarm Remote sensing
   R: with Remote ON/OFF (Required external power source)
   F4: Low speed fan
   T2: Horizontal terminal block (non-screw-hold type)

See 5.1 in Instruction Manual.
Basic Specification PLA600F-5 PLA600F-12 PLA600F-15 PLA600F-24 PLA600F-36 PLA600F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 5V 100A 12V 50A 15V 40A 24V 25A 36V 16.7A 48V 12.5A
Output Power 500W 600W 601.2W 600W
Output Voltage Adj Range 4.50 - 5.50V 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 32.40 - 39.60V 43.20 - 52.80V
Operating Temp (°C) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method Forced cooling (internal fan) Forced cooling (internal fan)
Dimensions (W x H x D) 120x61x215mm (Excluding terminal block and screw) 120x61x215mm (Excluding terminal block and screw)
Safety Agency Approvals UL62368-1, C-UL (CSA62368-1) , EN62368-1
Complies with DEN-AN		 UL62368-1, C-UL (CSA62368-1) , EN62368-1
Complies with DEN-AN
Technical Data PLA600F-5 PLA600F-12 PLA600F-15 PLA600F-24 PLA600F-36 PLA600F-48
