PLA30F

PLA30F

To Be Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  J: Connector interface
  T: Vertical terminal block
  N1: with DIN rail

See 5.1in Instruction Manual.
string(552) "
PL(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J: Connector interface
  T: Vertical terminal block
  N1: with DIN rail

See 5.1in Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

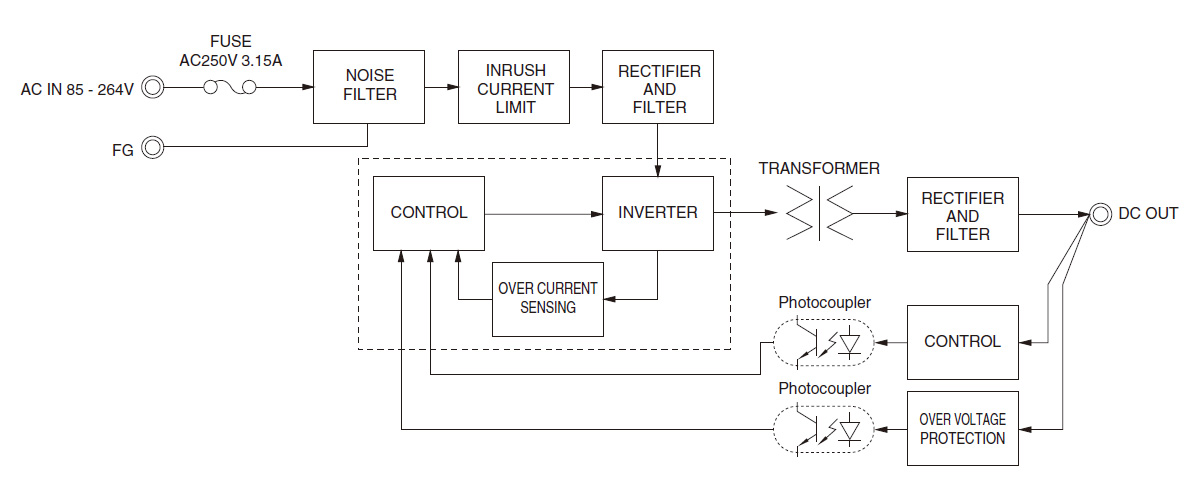

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PL(1)  A(2)  30(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  J: Connector interface
  T: Vertical terminal block
  N1: with DIN rail

See 5.1in Instruction Manual.
Basic Specification PLA30F-5 PLA30F-12 PLA30F-15 PLA30F-24
  Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 5V 6A 12V 2.5A 15V 2A 24V 1.3A
Output Power 30.0W 31.2W
Output Voltage Adj Range 4.50 - 5.50V 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V
Operating Temp (°C) -20 to +70℃, 20 - 90%RH (Non condensing) -20 to +70℃, 20 - 90%RH (Non condensing)
Cooling Method Convection Convection
Dimensions (W x H x D) 38x80x88mm (Excluding terminal block and screw) 38x80x88mm (Excluding terminal block and screw)
Safety Agency Approvals UL60950-1, C-UL (CSA60950-1), EN62368-1, UL508 (Except option -J) Complies with DEN-AN UL60950-1, C-UL (CSA60950-1), EN62368-1, UL508 (Except option -J) Complies with DEN-AN
Technical Data PLA30F-5 PLA30F-12 PLA30F-15 PLA30F-24
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
