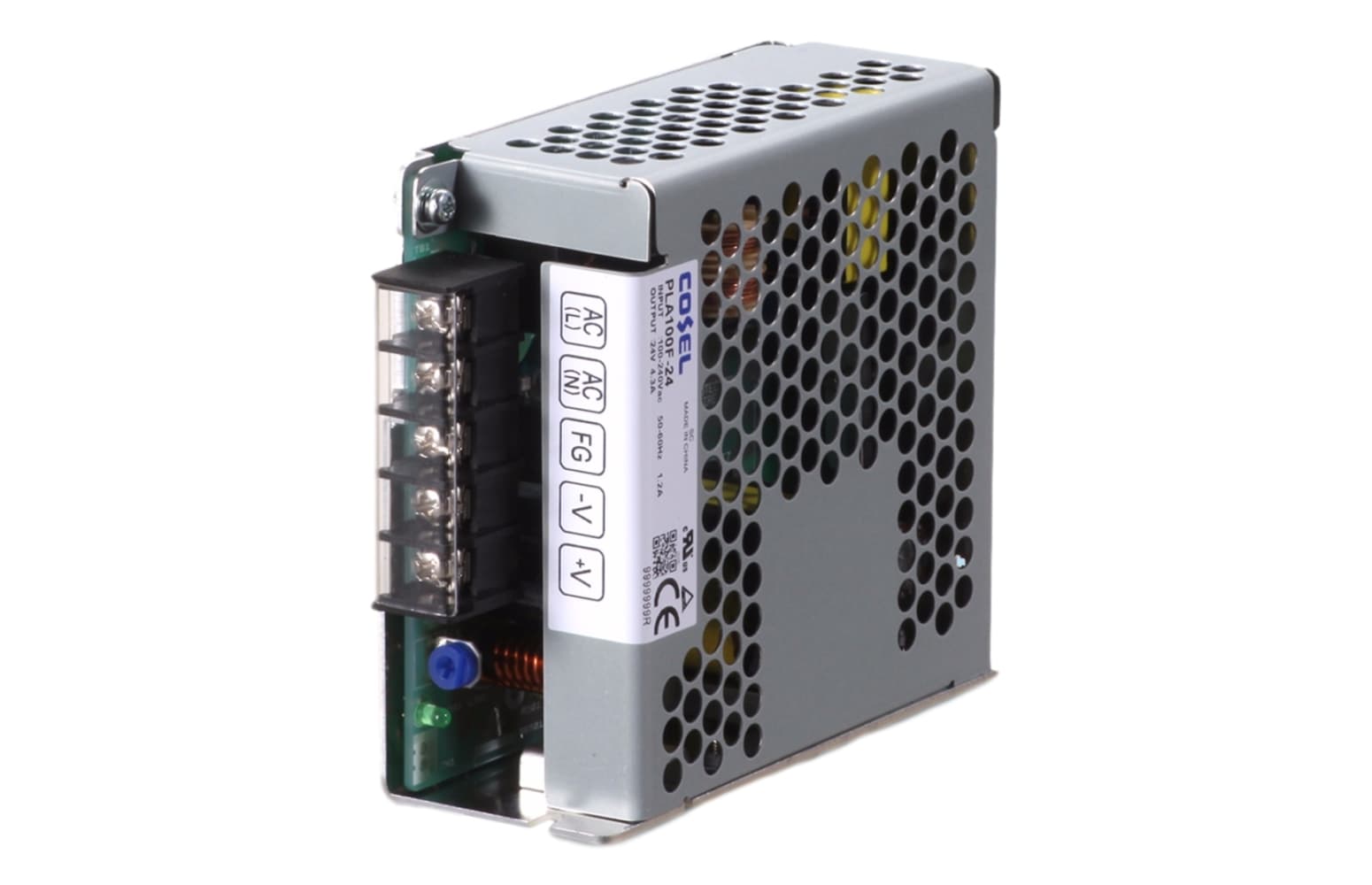

PLA100F

PLA100F

To Be Discontinued

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  R: with Remote ON/OFF (Required external power source)
  J: Connector interface
  T: Vertical terminal block
  L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
  N1: with DIN rail

See 5.1 in Instruction Manual.
string(717) "
PL(1)  A(2)  100(3)  F(4)  -  □(5)  -  □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  R: with Remote ON/OFF (Required external power source)
  J: Connector interface
  T: Vertical terminal block
  L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
  N1: with DIN rail

See 5.1 in Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PL(1)  A(2)  100(3)  F(4)  -  □(5)  -  □(6)

(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  R: with Remote ON/OFF (Required external power source)
  J: Connector interface
  T: Vertical terminal block
  L: Lower power consumption (0.5W max at AC240Vin, no load, ErP-compliant)
  N1: with DIN rail

See 5.1 in Instruction Manual.
Basic Specification PLA100F-12 PLA100F-15 PLA100F-24 PLA100F-36 PLA100F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 12V 8.4A 15V 6.7A 24V 4.3A 36V 2.8A 48V 2.1A
Output Power 100.8W 100.5W 103.2W 100.8W
Output Voltage Adj Range 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 32.40 - 39.60V 43.20 - 52.80V
Operating Temp (°C) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method Convection Convection
Dimensions (W x H x D) 41x97x109mm (Excluding terminal block and screw) 41x97x109mm (Excluding terminal block and screw)
Safety Agency Approvals UL62368-1, C-UL (CSA62368-1) , EN62368-1,
UL508 (Except option -J) Complies with DEN-AN		 UL62368-1, C-UL (CSA62368-1) , EN62368-1,
UL508 (Except option -J) Complies with DEN-AN
Technical Data PLA100F-12 PLA100F-15 PLA100F-24 PLA100F-36 PLA100F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
