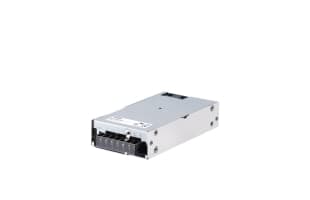

PJA300F

PJA300F

Key Product Features

  • Basic Function AC-DC Power Supply
  • Cost Effective
  • Parallel/Redundancy Operation
  • Various Additional Options
  • 5 Year Warranty
  • EN & UL Approved

Options

(For detailed information, please refer to the instruction manual)

   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   R: with Remote ON/OFF (External power source is required)
   F4: Low speed fan

See 5.1 in Instruction Manual.
string(649) "
PJ(1)  A(2)  300(3)  F(4)  -  □(5) &nbsp


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   R: with Remote ON/OFF (External power source is required)
   F4: Low speed fan

See 5.1 in Instruction Manual."

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PJ(1)  A(2)  300(3)  F(4)  -  □(5) &nbsp


(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
   C: with Coating
   G: Low leakage current
   V: External potentiometer for output voltage adjustment
   R: with Remote ON/OFF (External power source is required)
   F4: Low speed fan

See 5.1 in Instruction Manual.
Basic Specification PJA300F-5 PJA300F-12 PJA300F-15 PJA300F-24 PJA300F-36 PJA300F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ AC85 - 264V 1Φ
Output Voltage / Current 5V 50A 12V 25A 15V 20A 24V 12.5A 36V 8.4A 48V 6.3A
Output Power 250W 300W 302.4W
Output Voltage Adj Range 4.50 - 5.50V 10.80 - 13.20V 13.50 - 16.50V 21.60 - 26.40V 32.40 - 39.60V 43.20 - 52.80V
Operating Temp (°C) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method Forced cooling (internal fan) Forced cooling (internal fan)
Dimensions (W x H x D) 102x41x190mm (Excluding terminal block and screw) 102x41x190mm (Excluding terminal block and screw)
Safety Agency Approvals UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN
Technical Data PJA300F-5 PJA300F-12 PJA300F-15 PJA300F-24 PJA300F-36 PJA300F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
