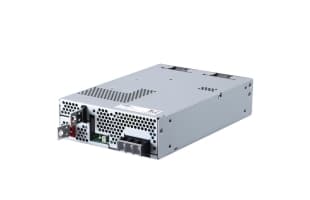

PJA1500F

Key Product Features

  • Basic Function AC-DC Power Supply
  • Cost Effective
  • Parallel/Redundancy Operation
  • Various Additional Options
  • 5 Year Warranty
  • EN & UL Approved

Options

(For detailed information, please refer to the instruction manual)

  C: with Coating
  G: Low leakage current
  V: External potentiometer for output voltage adjustment
  W:Parallel operation, LV alarm and Remote sensing
  R: with Remote ON/OFF (External power source is required)
  U: Operation stop voltage is set at a lower value

See 5.1 in Instruction Manual.

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model
  • 3D CAD Data (IGES)
    • Standard model

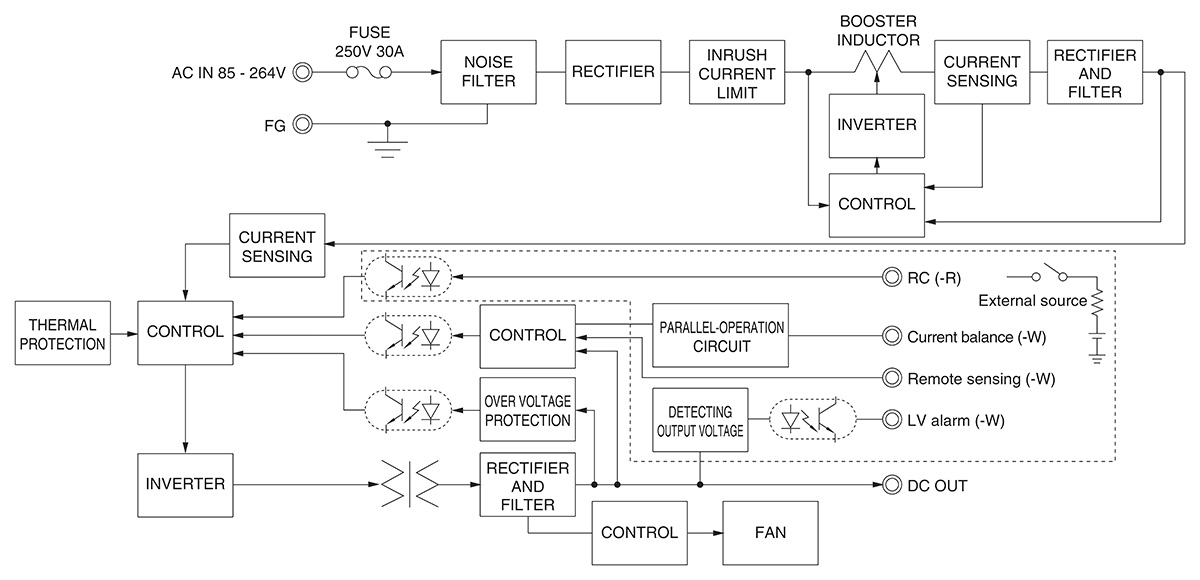

  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity

PJ(1)  A(2)  1500(3)  F(4)  -  (5)  -  (6)




(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
  C: with Coating
  G: Low leakage current
  V: External potentiometer for output voltage adjustment
  W:Parallel operation, LV alarm and Remote sensing
  R: with Remote ON/OFF (External power source is required)
  U: Operation stop voltage is set at a lower value

See 5.1 in Instruction Manual.
Basic Specification PJA1500F-12 PJA1500F-15 PJA1500F-24 PJA1500F-36 PJA1500F-48
  Check Stock Check Stock Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ ※ AC85 - 264V 1Φ ※
Output Voltage / Current 12V 125A 15V 100A 24V 64A 36V 42A 48V 32A
Output Power 1500W 1536W 1512W 1536W
Output Voltage Adj Range 10.80 - 13.50V 13.50 - 17.30V 20.40 - 28.50V 30.60 - 40.80V 40.80 - 55.20V
Operating Temp (°C) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing) -20 to +70℃ (Output derating is required) , 20 - 90%RH (Non condensing)
Cooling Method Forced cooling (internal fan) Forced cooling (internal fan)
Dimensions (W x H x D) 178x61x268mm (Excluding terminal block and screw) 178x61x268mm (Excluding terminal block and screw)
Safety Agency Approvals UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN UL62368-1, C-UL (CSA62368-1) , EN62368-1, Complies with DEN-AN
Technical Data PJA1500F-12 PJA1500F-15 PJA1500F-24 PJA1500F-36 PJA1500F-48
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
