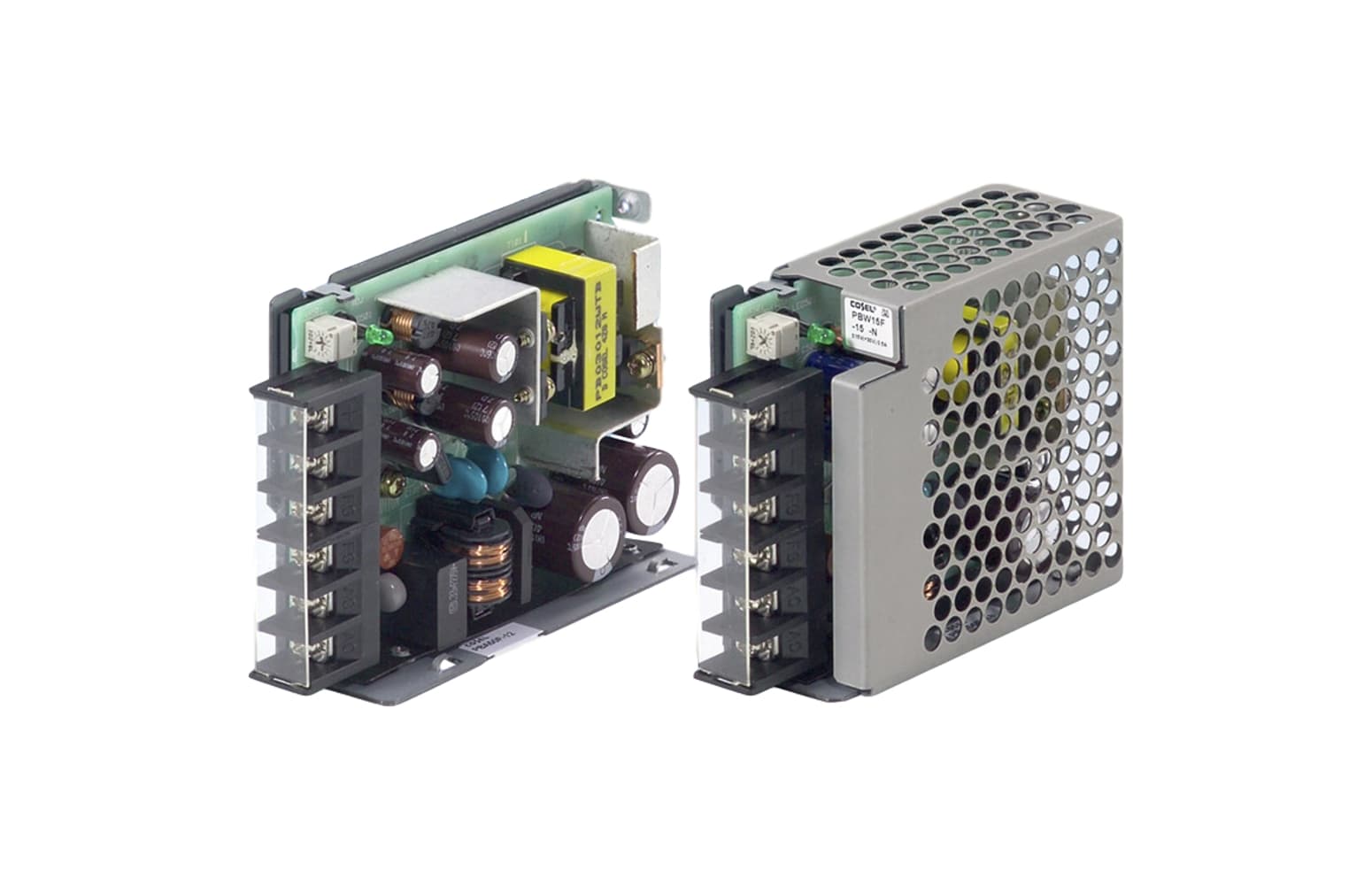

PBW30F

PBW30F

To Be Discontinued

To be discontinued in October 2026

Options

(For detailed information, please refer to the instruction manual)

PB(1)    W(2)    30(3)    F(4)    -    □(5)    -    □(6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
    C: with Coating
    G: Low leakage current
    E: Low leakage current and EMI class A
    T: Vertical terminal block
    J1: VH (J.S.T.) connector type
    N: with Cover
    N1: with DIN rail
    V: Output voltage setting potentiometer externally

string(713) "
PB(1)    W(2)    30(3)    F(4)    -    □(5)    -    □(6)
(1) Series name
(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
    C: with Coating
    G: Low leakage current
    E: Low leakage current and EMI class A
    T: Vertical terminal block
    J1: VH (J.S.T.) connector type
    N: with Cover
    N1: with DIN rail
    V: Output voltage setting potentiometer externally
"

Product Data

  • Datasheet
  • Instruction Manual
  • Accessories
  • Glossary of Technical Terms

Drawings

  • CAD Data (DXF)
  • 3D CAD Data (STEP)
    • Standard model (includes N option)
  • 3D CAD Data (IGES)
    • Standard model (includes N option)
  • Block diagram

Safety Certificates

  • Safety Approvals
  • EU Declaration of Conformity
  • UK Declaration of Conformity

PB(1)    W(2)    30(3)    F(4)    -    □(5)    -    □(6)

(1) Series name
(2) Dual output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
    C: with Coating
    G: Low leakage current
    E: Low leakage current and EMI class A
    T: Vertical terminal block
    J1: VH (J.S.T.) connector type
    N: with Cover
    N1: with DIN rail
    V: Output voltage setting potentiometer externally

Basic Specification PBW30F-5 PBW30F-12 PBW30F-15
  Check Stock Check Stock Check Stock
Input Voltage Range AC85 - 264V 1Φ or DC110 - 370V (AC50 or DC70 Please refer to the instruction manual)
Output Voltage / Current ±5V (+10V)
Rated Current1: 1.5A
Rated Current2: 2.0A * 		±12V (+24V)
Rated Current1: 1.3A
Rated Current2: 1.7A * 		±15V (+30V)
Rated Current1: 1.0A
Rated Current2: 1.4A *
Output Power 15W 31.2W 30.0W
Output Voltage Adj Range Refer to datasheet
Operating Temp (°C)

-10 to +71℃ (Required Derating) , 20 - 90%RH (Non condensing)
Cooling Method

Convection
Dimensions (W x H x D) 31x78x103mm (without terminal block)
Safety Agency Approvals

UL60950-1, C-UL (CSA60950-1), EN62368-1, Complies with DEN-AN
Technical Data PBW30F-5 PBW30F-12 PBW30F-15
Performance Data
EMC Data
Expected Life
MTBF
Reliability Data
